RISC-V lw, sw, Decision I

Intro

编译器会最小化寄存器使用

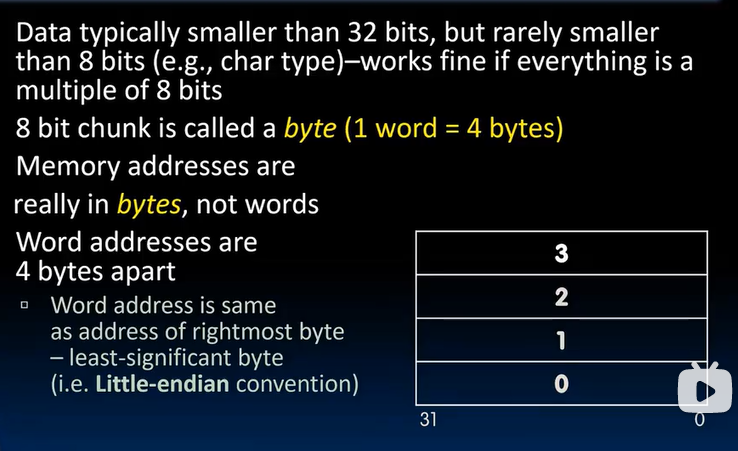

layout in Memory

side note:

• a register is a 32-bit register(hold 32-bit data)
• word: 4 bytes, 32 bits
• risc-v 小端法（主流）

Data Transfer Instructions

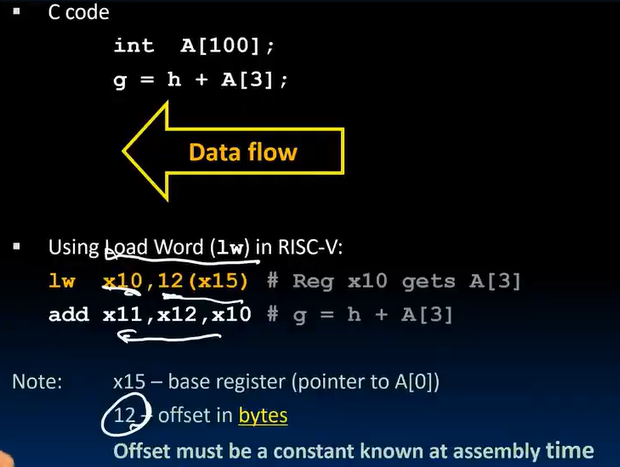

lw (load word)

look note 🤔

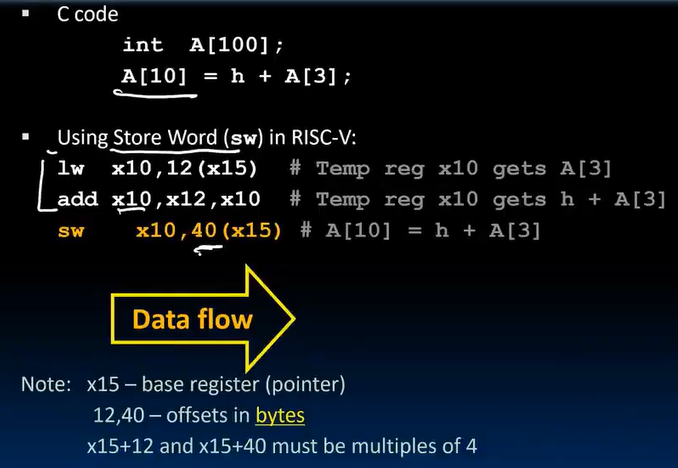

sw (store word)

结合lec7的模式图来记忆

lb/sb (load byte/store byte)

same as lw/sw

lb 符号扩展

lbu: load byte unsigned

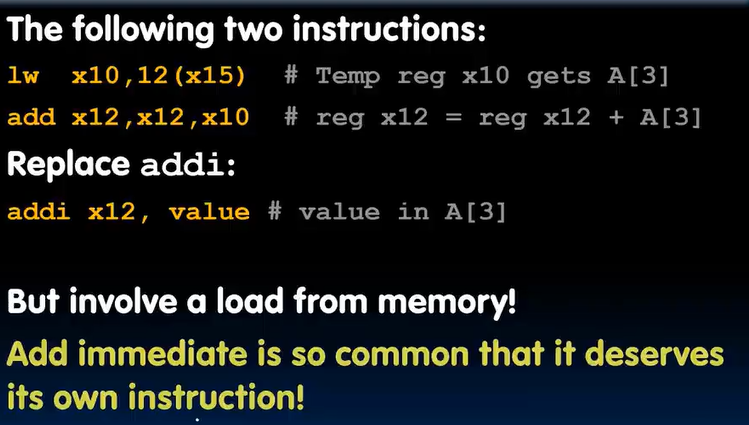

why still addi?

• 更快
• 但是imm的范围更小 (32bit以内)

Decision I

RV32 so far 😋

1
2
3
4
5
6
7
8

add rd, rs1, rs2
sub rd, rs1, rs2
addi rd, rs1, imm
lw rd, imm(rs1)
sw rs2, imm(rs1)
lb rd, imm(rs1)
sb rs2, imm(rs1)
lbu rd, imm(rs1)

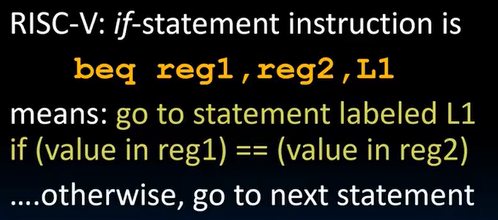

beq/bne (branch if equal/not equal)

Decision in RISC-V Assembly

• beq: branch if equal
• bne: branch if not equal
• blt: branch if less than blt reg1, reg2, label # if (reg1 < reg2) goto label
• bge: branch if greater than or equal
• bltu: branch if unsigned less than bltu reg1, reg2, label # if (reg1 < reg2) goto label
• bgeu: branch if unsigned greater than or equal
• j: jump/always branch j label # 无条件jump的范围比有条件jump构造出来的无条件jump更大（32位限制）

没有：bgt or ble, only have BLT（培根生菜番茄） sandwiches

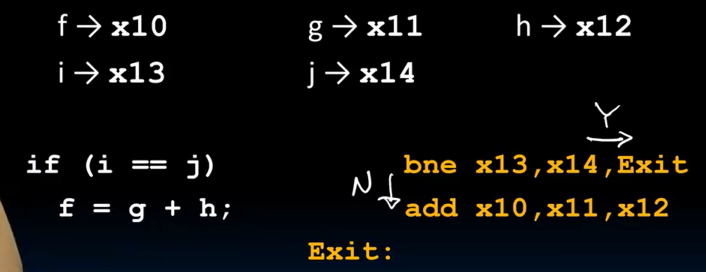

注意“流”, 多数情况下条件似乎是翻着来翻译的

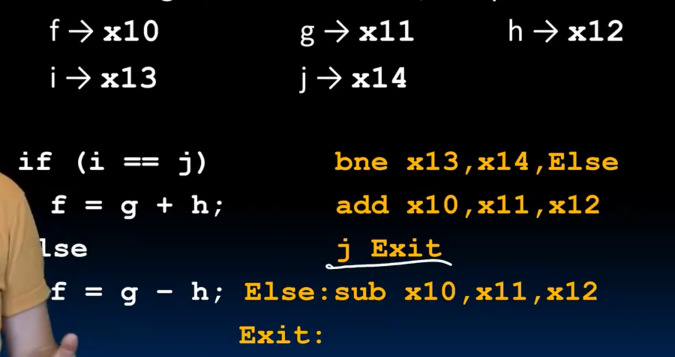

注意“j Exit”

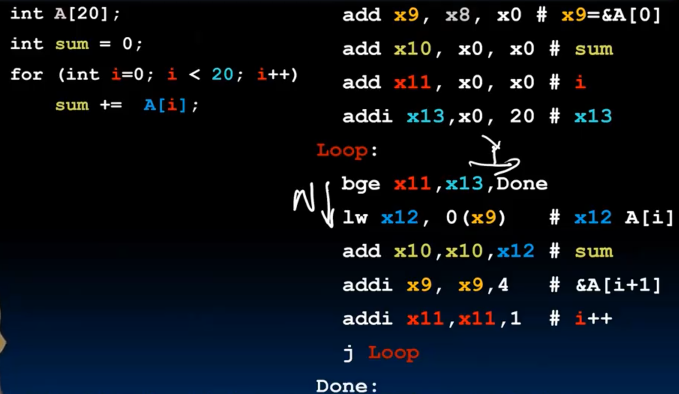

loops in C/Assembly
