RISC-V Introduction

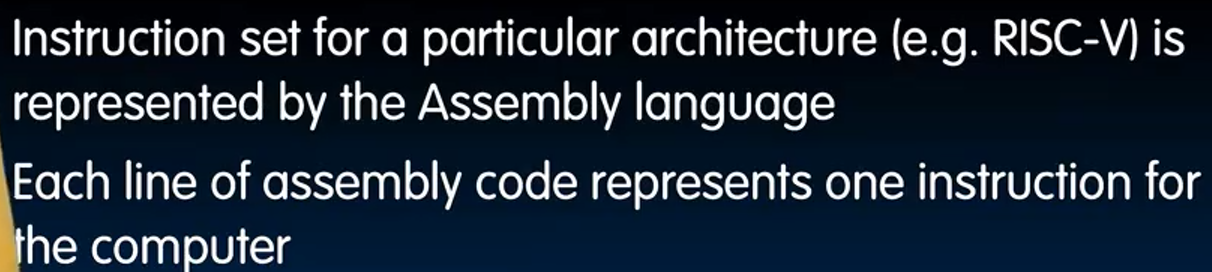

Instruction Set Architecture (ISA)

Assembly Variables

each statement is called an instruction

Registers

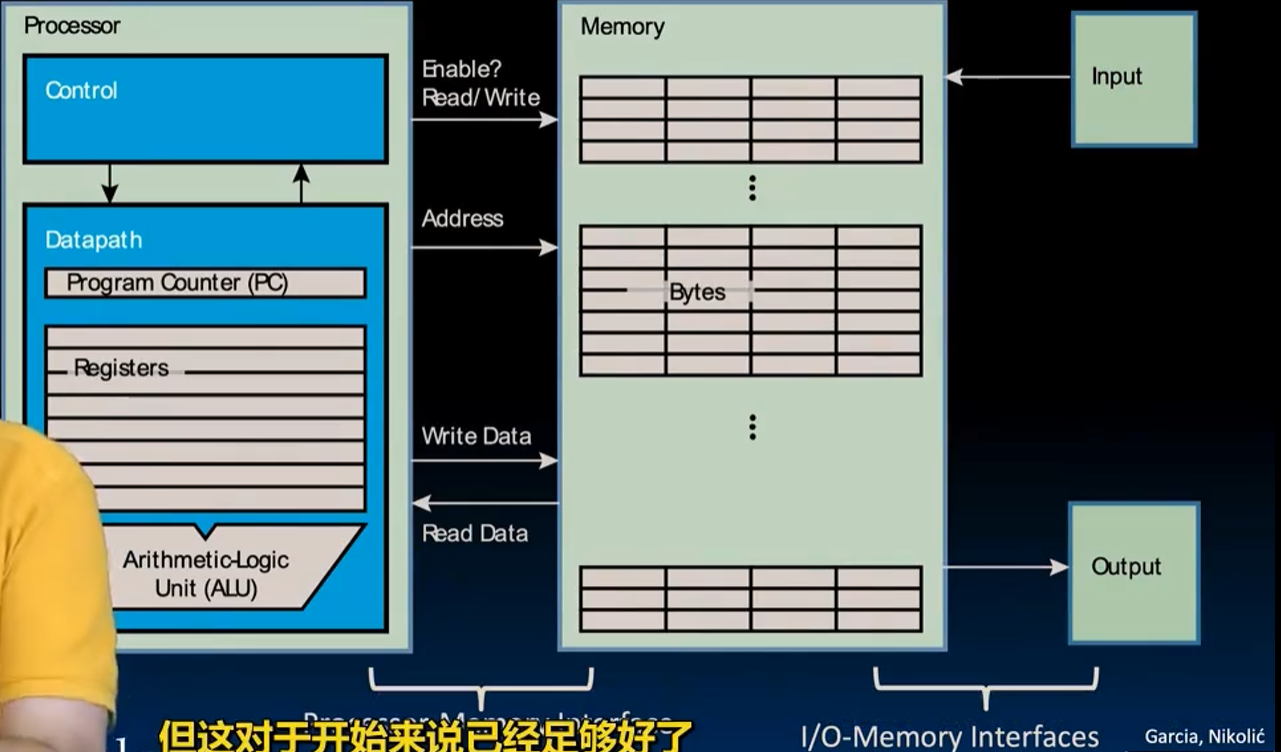

where are registers ?

32 general purpose registers (GPRs) are available in RISC-V architecture.(x0 - x31)

word: 32 bits (can be 64 bits in RV64)

x0: always 0 # is the comment character

no type casting in RISC-V assembly language

the registers have no type

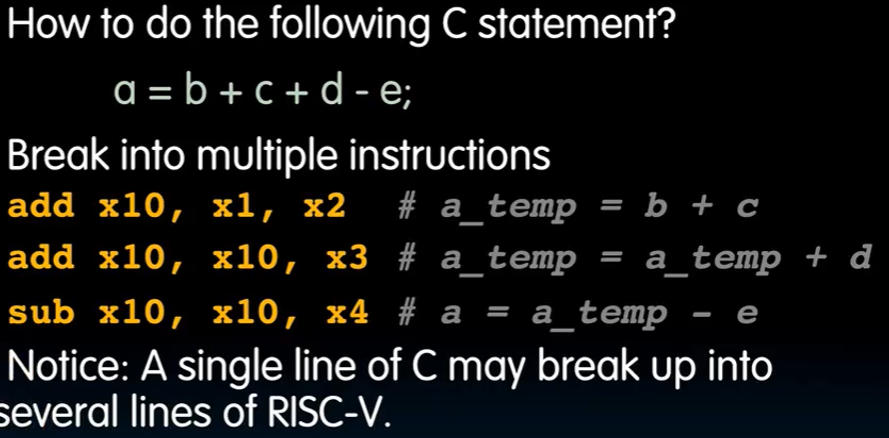

add/sub instructions

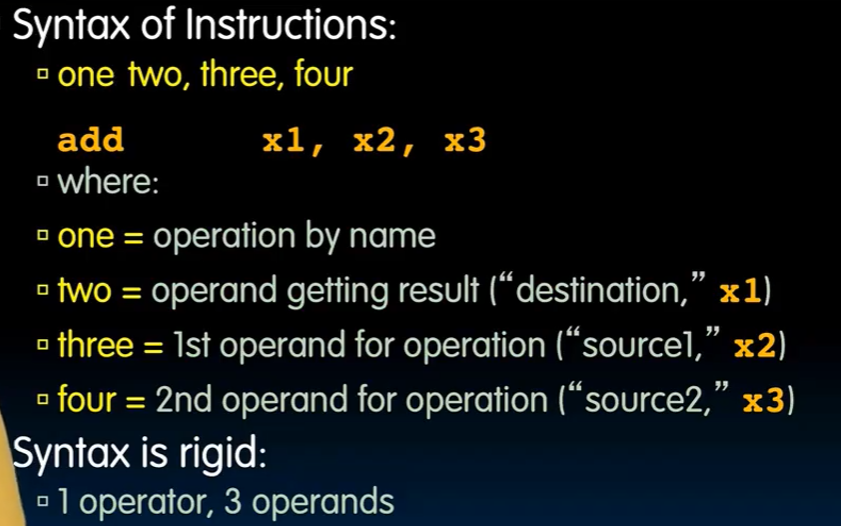

syntax of instructions

1
2

add rd, rs1, rs2
sub rd, rs1, rs2 # d(rd) = e(rs1) - f(rs2), 注意顺序

Immediate values（立即数）

1

addi rd, rs1, 10

没有subi ，加上相反数即可

Register 0
