Lec12-Hardware Acceleration + GPUs

HHZZ included in CMU-10-414-714

2024-10-01 176 words One minute

Contents

GPU Acceleration

GPU Programming

gpu 具有良好的并行性

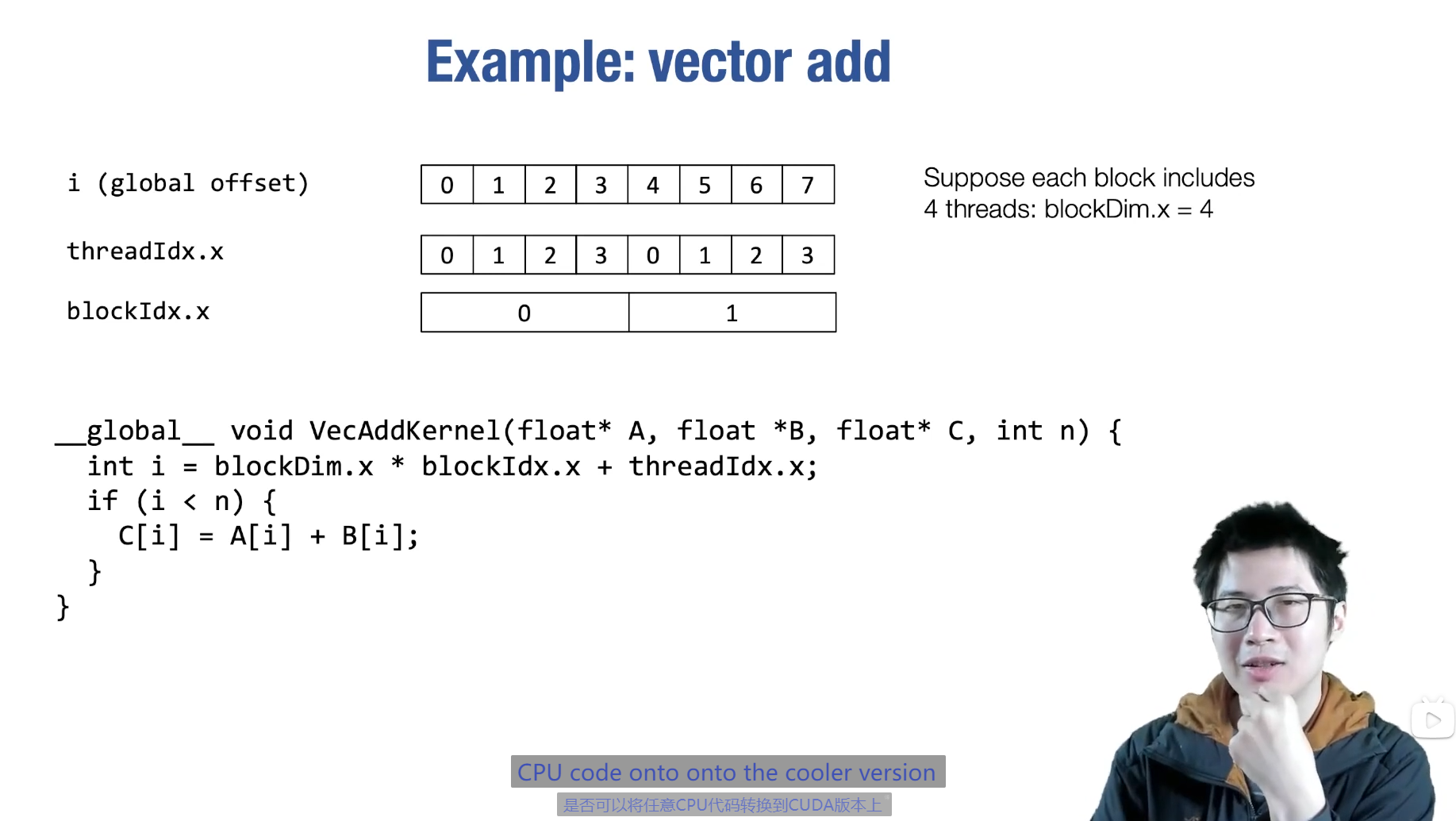

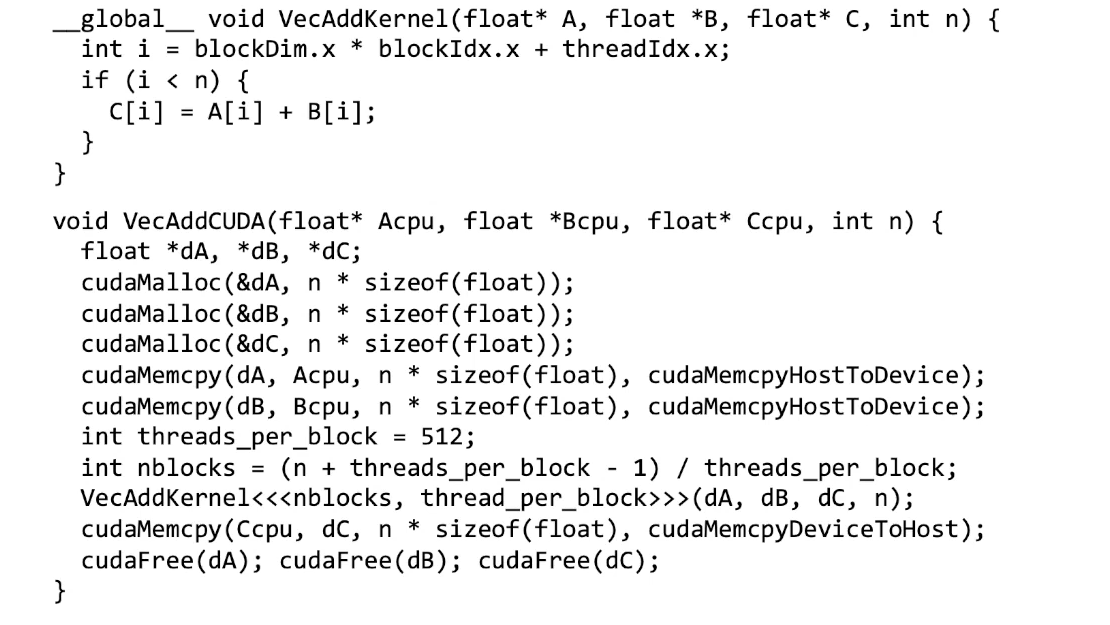

a single CUDA example

注意到计算所需变量互不相关，所以可以并行计算

数据IO操作是瓶颈 keep data in GPU memory as long as possible –> call .numpy() less frequently

GPU memory hierarchy

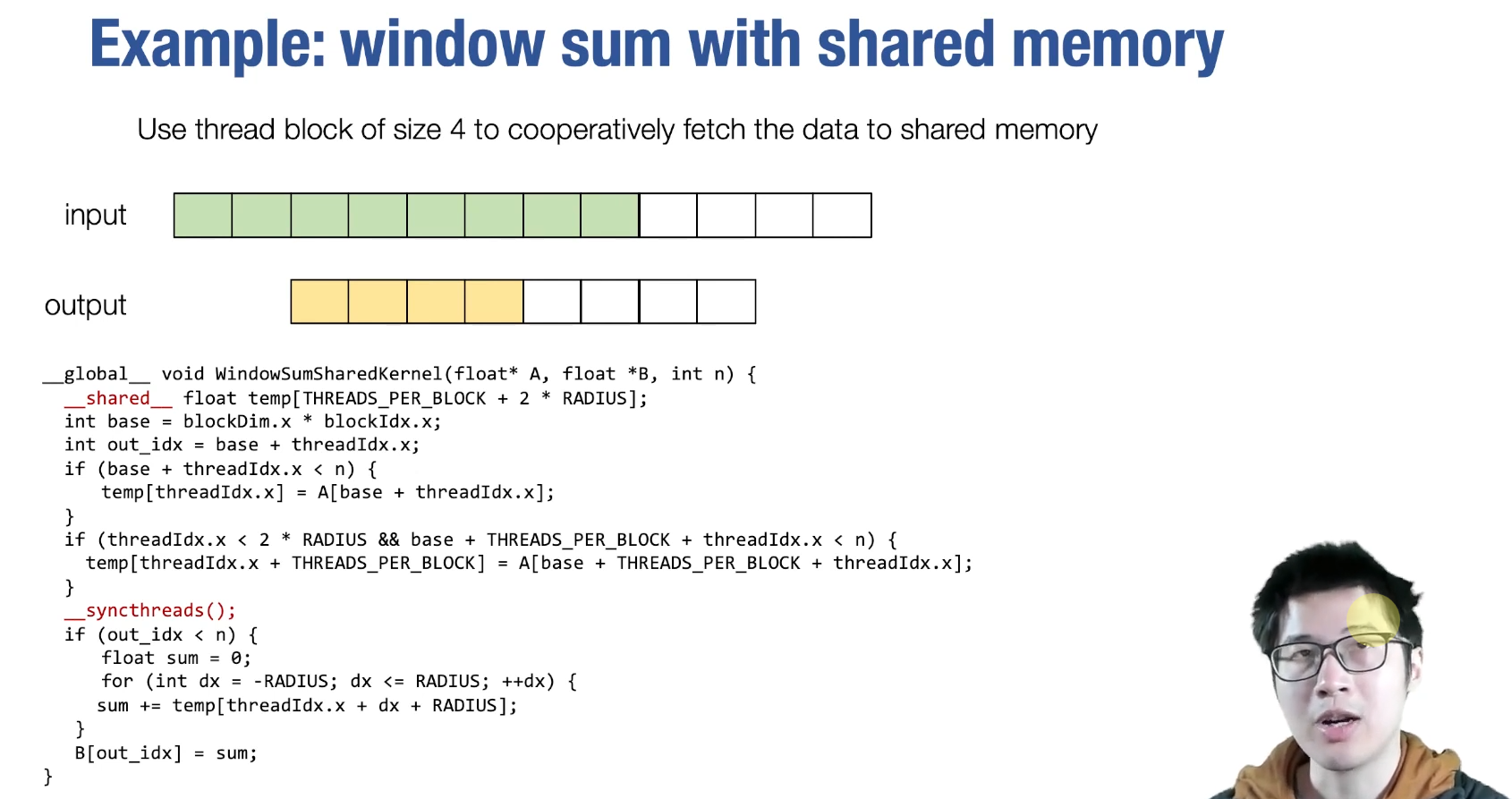

利用shared memory

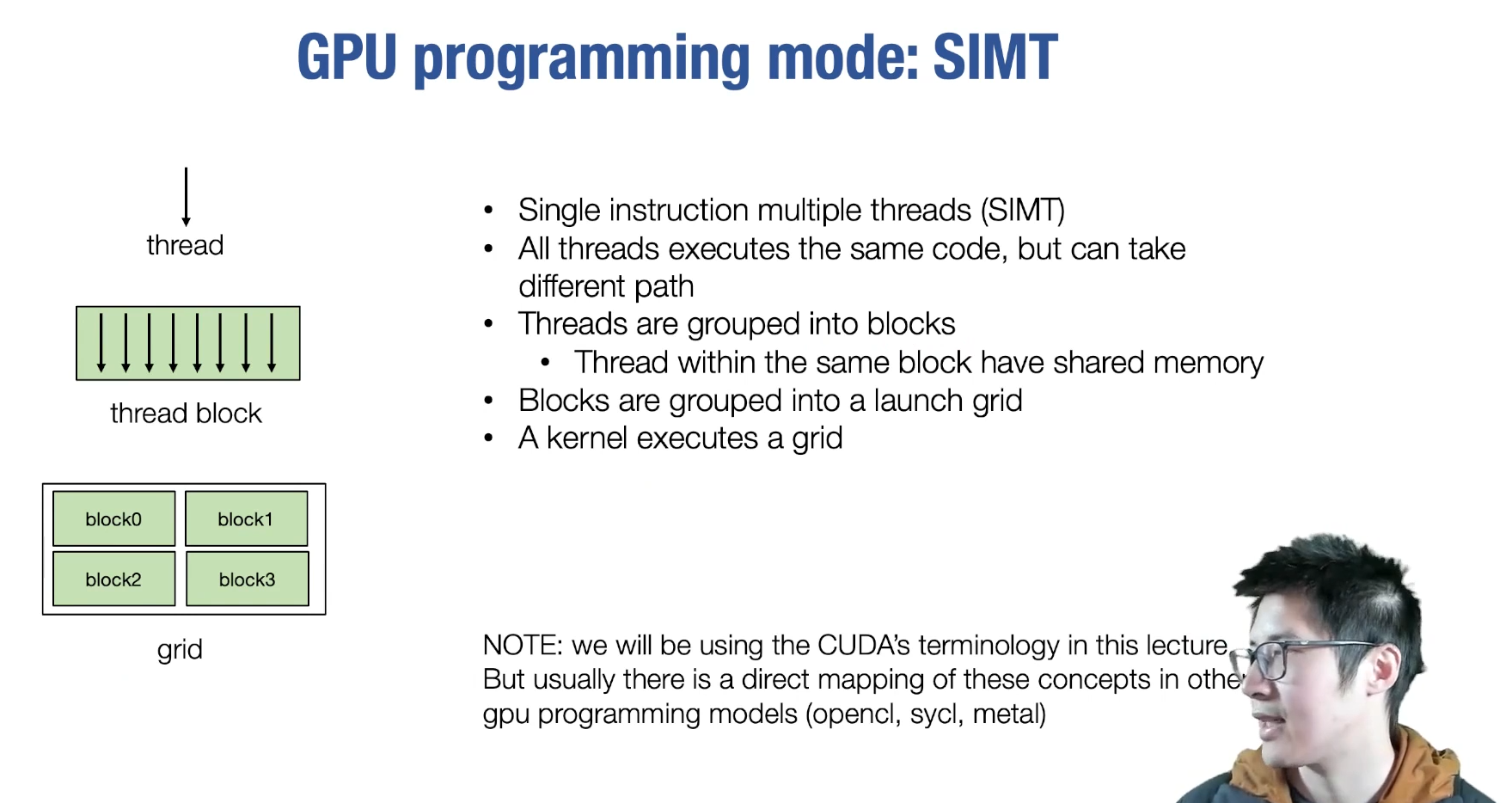

launch thread grid and blocks

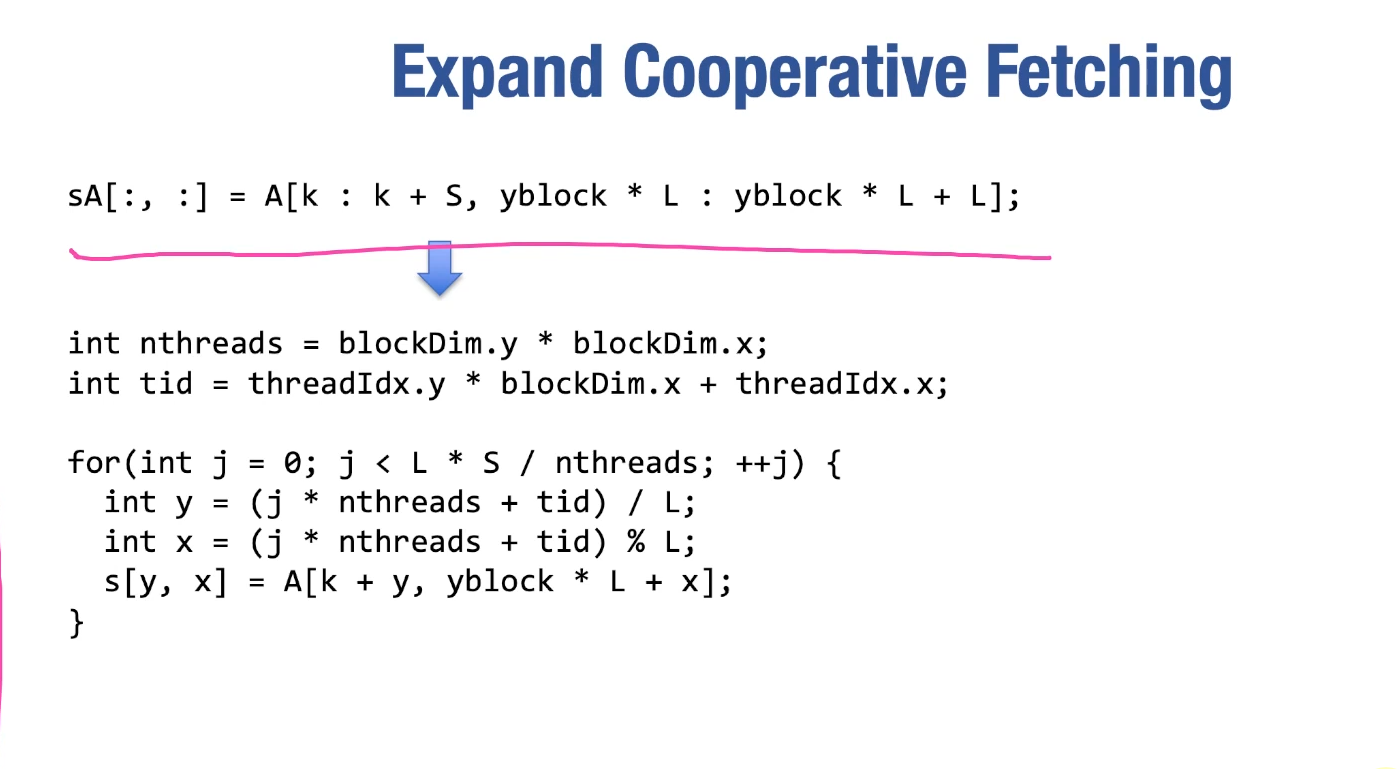

cooperative fetch common to shared memory to increase reuse

case study: matrix multiplication on GPU

1

Compute C = dot(A.T, B)

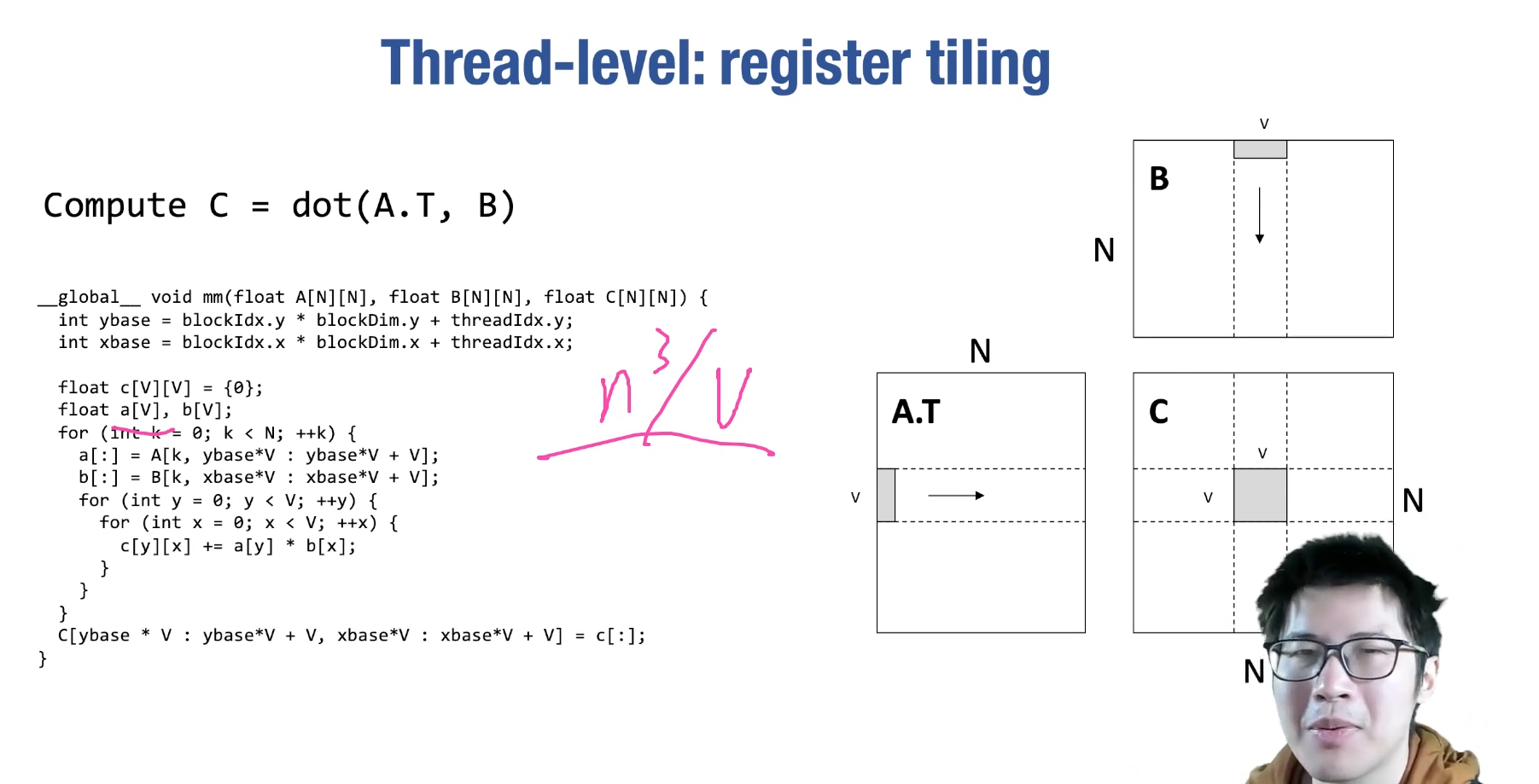

thread level

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16


__global__ void mm(float A[N][N], float B[N][N], float C[N][N]) {
    int ybase = blockIdx.y * blockDim.y + threadIdx.y;
    int xbase = blockIdx.x * blockDim.x + threadIdx.x;
    float c[V][V] = {0};
    float a[V], b[V];
    for (int k = 0; k < N; k++) {
        a[:] = A[k, ybase*V : ybase*V+V];
        b[:] = B[k, xbase*V : xbase*V+V];
        for (int y = 0; y < V; y++) {
            for (int x = 0; x < V; x++) {
                c[y][x] += a[y] * b[x];
            }
        }
    }
    C[ybase*V : ybase*V+V, xbase*V : xbase*V+V] = c[:];
}

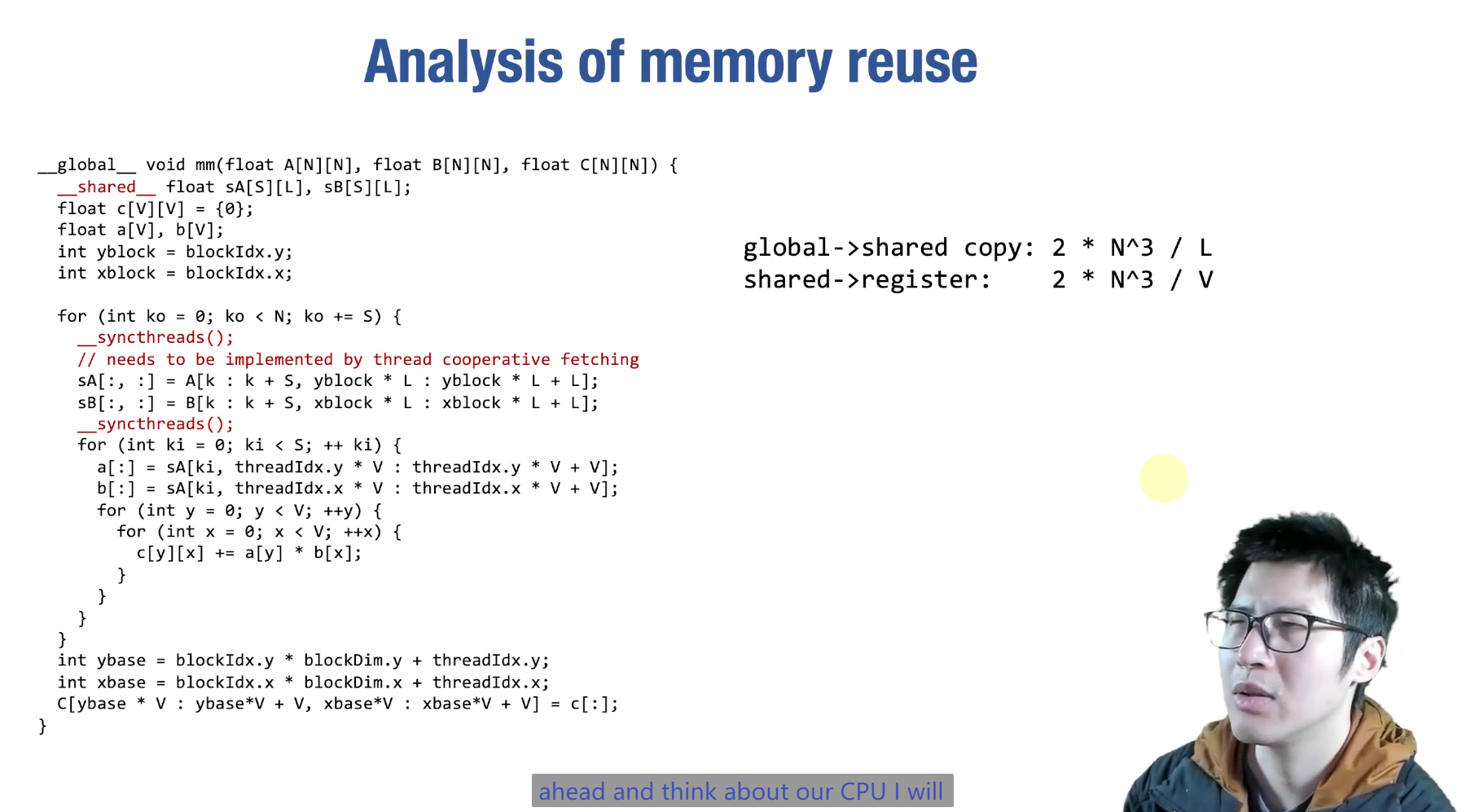

block level: shared memory tiling

🤯 吃了没有完全学习好架构体系的亏!

多线程使得计算和加载数据同时进行

合作fetching也有意思捏
