Lec11-RISC-V Instruction Formats I

 included in UCB-CS61C
   156 words   One minute

RISC-V Instruction Formats I

事实上已经来到下一个层级(二进制)了，但是看标题似乎还是RISC-V 🤔

Background and Consequences

1. addressing modes

  • everything has a memory address, so branches and jumps can use them
  • PC (program counter, again 😄) is a register that holds the address of the next instruction to be executed

2. 二进制兼容否？如何表示指令？

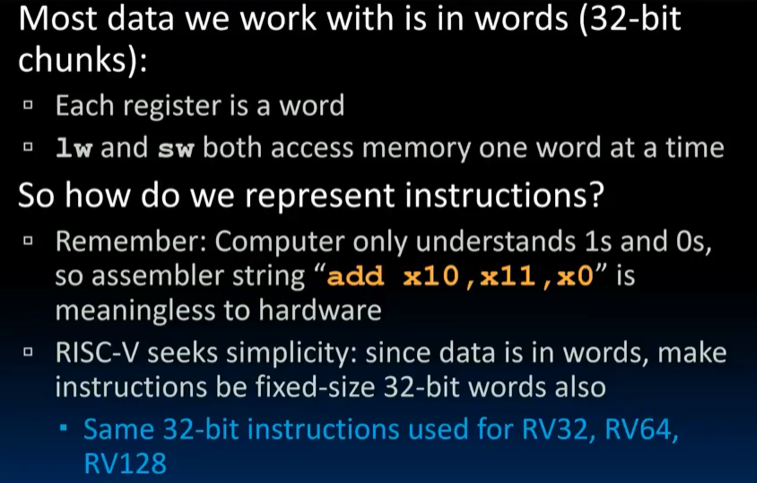

/lec11-risc-v-instruction-formats-i/image.png 一个指令用1个word(32bits)来装绰绰有余

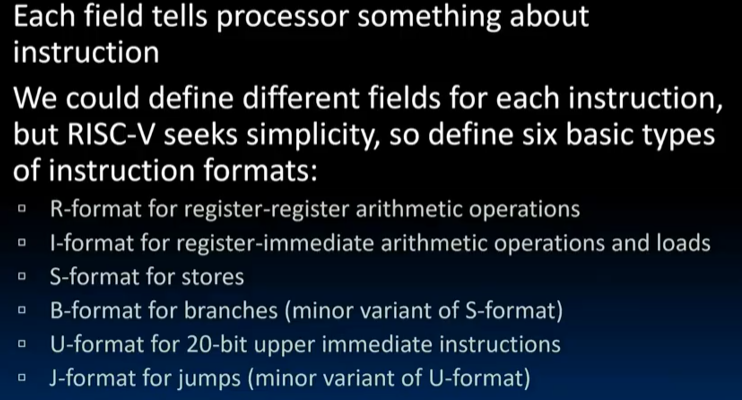

divide instruction into “fields” 😋

/lec11-risc-v-instruction-formats-i/image-1.png

R-Format Layout

算数逻辑指令

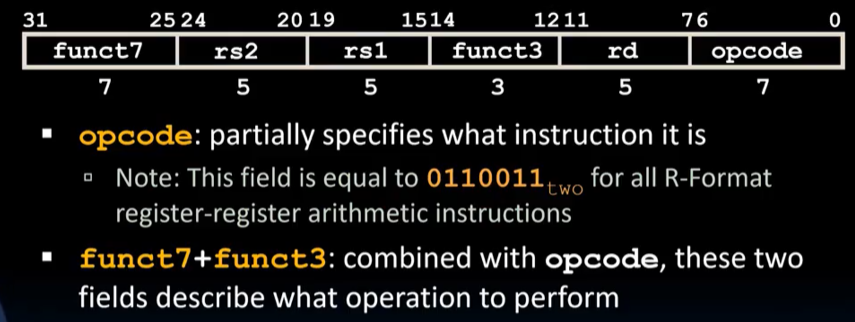

/lec11-risc-v-instruction-formats-i/image-2.png

  • funct3: 功能码，决定指令的操作类型
  • funct7: 扩展功能码，用于一些复杂的指令
  • opcode: 操作码，决定指令的类别

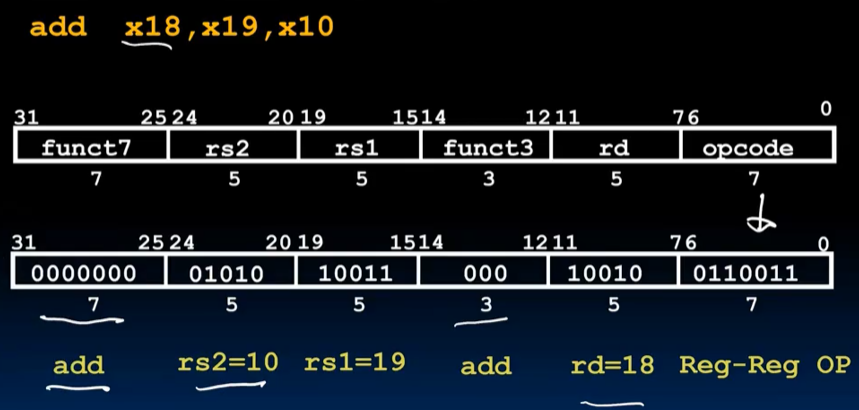

/lec11-risc-v-instruction-formats-i/image-3.png

具体查表

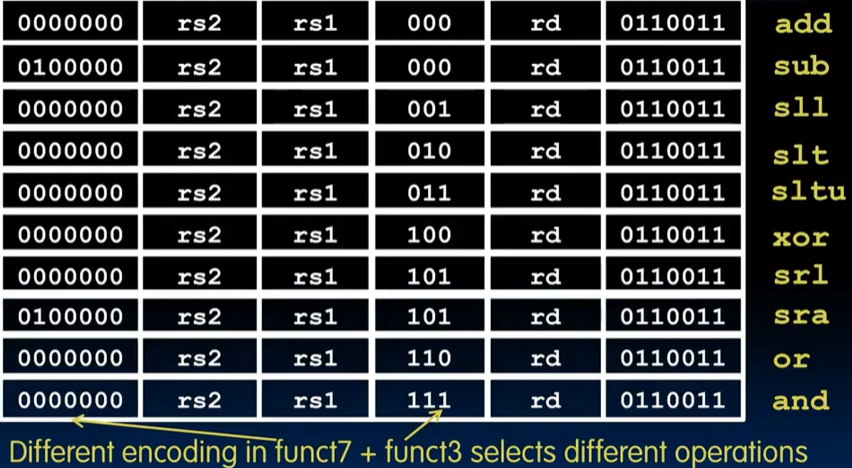

/lec11-risc-v-instruction-formats-i/image-4.png

  • new one: slt and sltu – set less than, when rs1 < rs2, then set the destination register to 1, otherwise 0. sltu is similar but for unsigned numbers.

  • sub & sra 0 1 00000 指示符号拓展

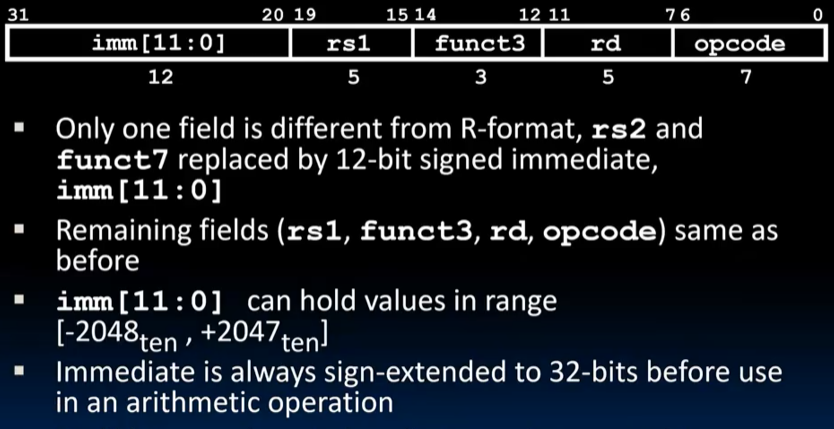

I-Format Layout

/lec11-risc-v-instruction-formats-i/image-5.png

  • funct3: 功能码，决定指令的操作类型，在这里只能指示8个，然而有9条指令

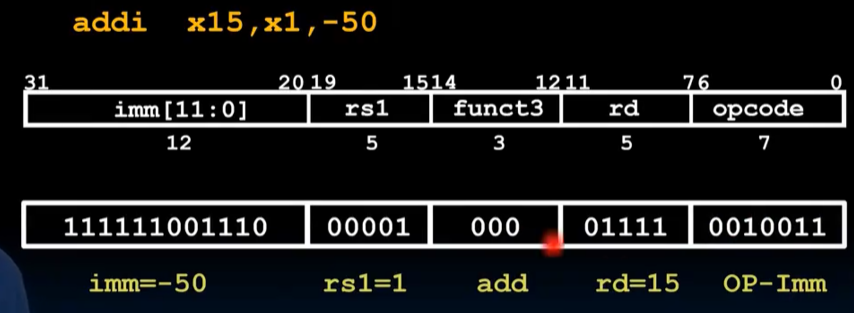

/lec11-risc-v-instruction-formats-i/image-6.png

具体查表

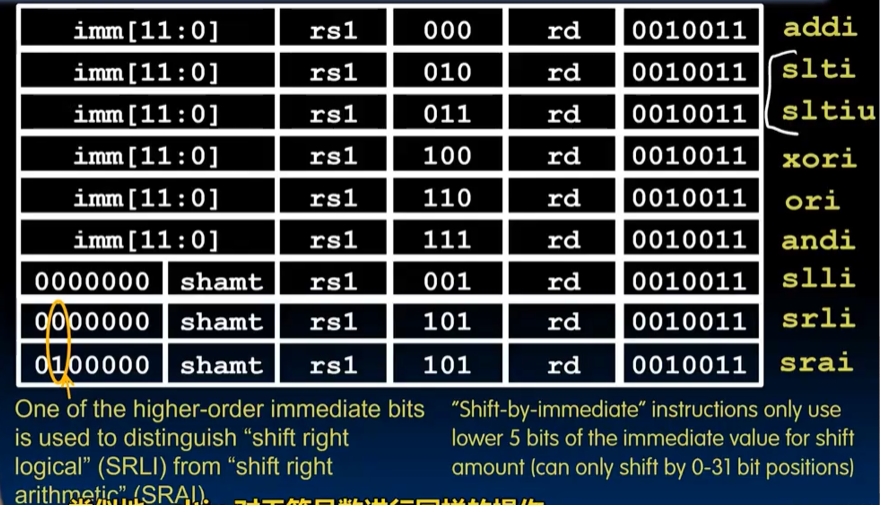

/lec11-risc-v-instruction-formats-i/image-7.png

  • new one: slti & sltiu – set less than immediate, when rs1 < imm, then set the destination register to 1, otherwise 0. sltiu is similar but for unsigned numbers.

  • shamt ? – shift amount , 5 bits, 过多溢出全为0

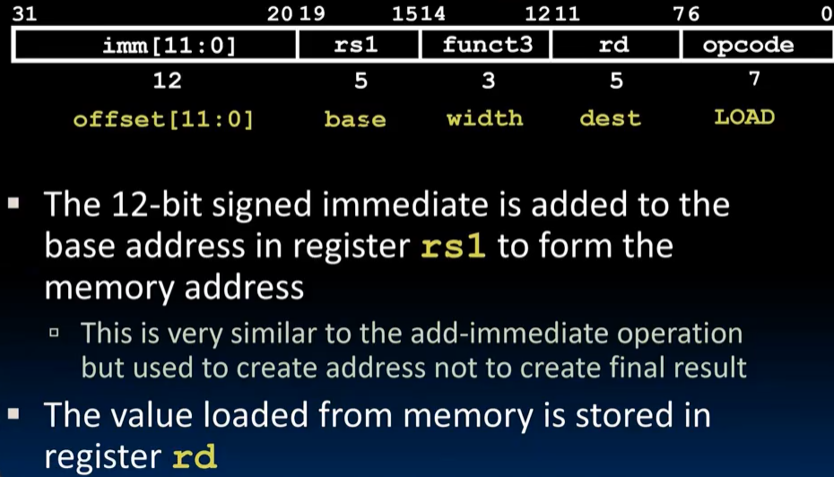

RV Loads

本质上是I-Format

/lec11-risc-v-instruction-formats-i/image-8.png

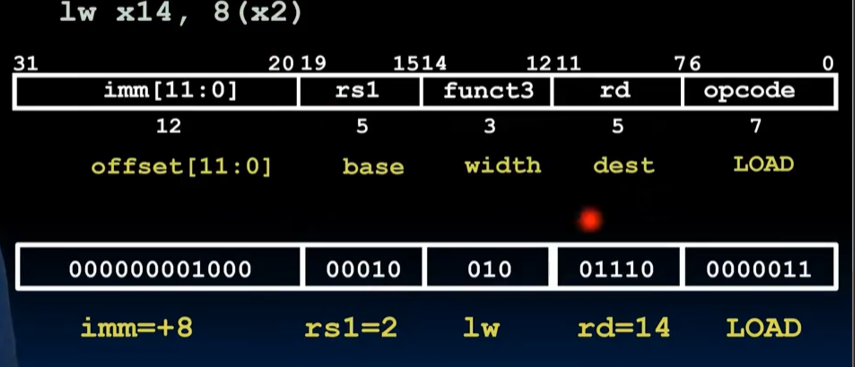

/lec11-risc-v-instruction-formats-i/image-9.png

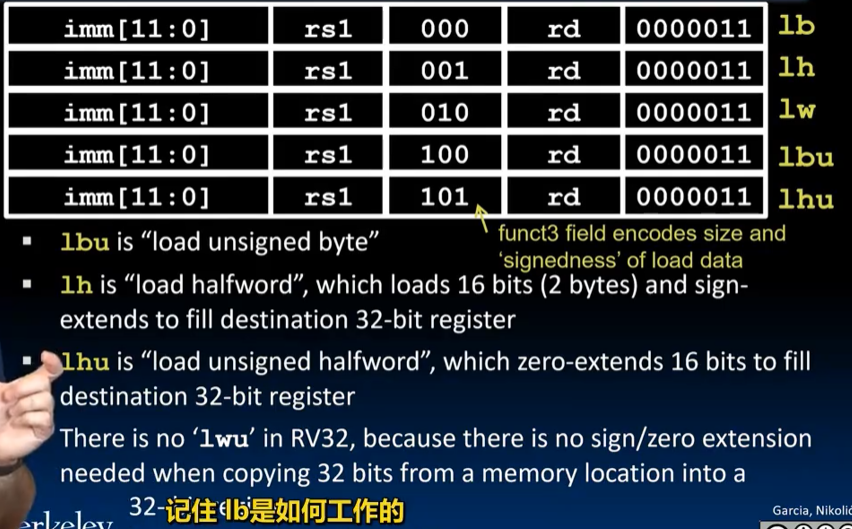

具体查表 /lec11-risc-v-instruction-formats-i/image-10.png

  • place in the lower part, and 符号拓展

S-Format Layout

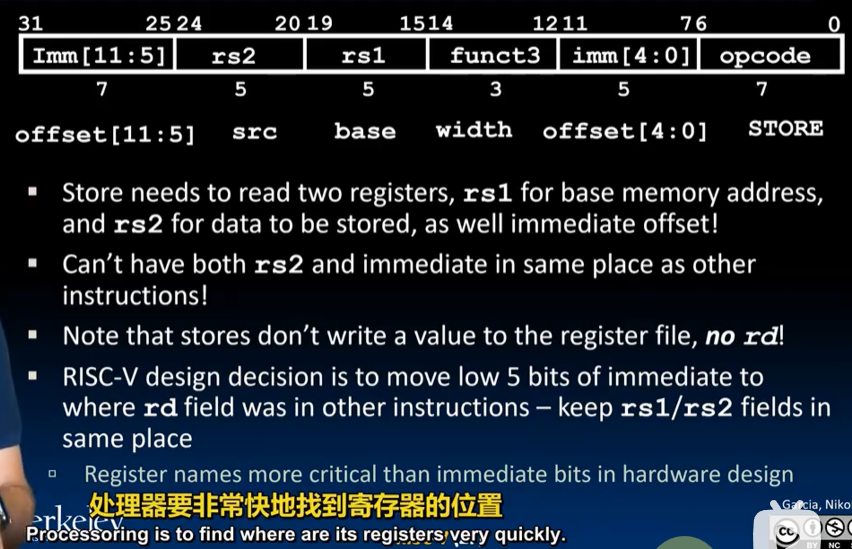

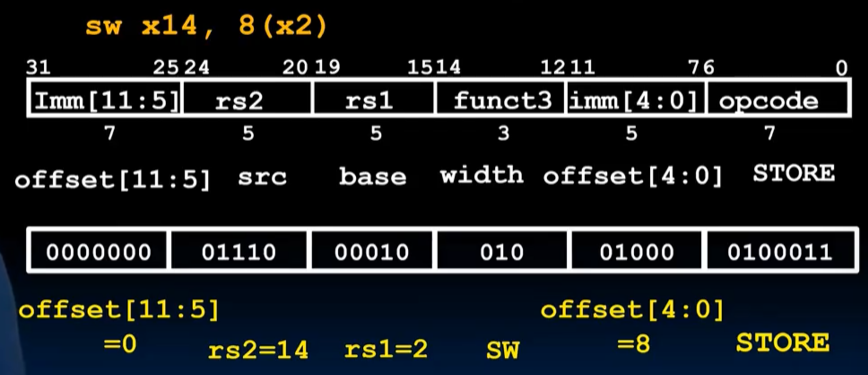

十分丑陋划分32位

/lec11-risc-v-instruction-formats-i/image-11.png

/lec11-risc-v-instruction-formats-i/image-12.png

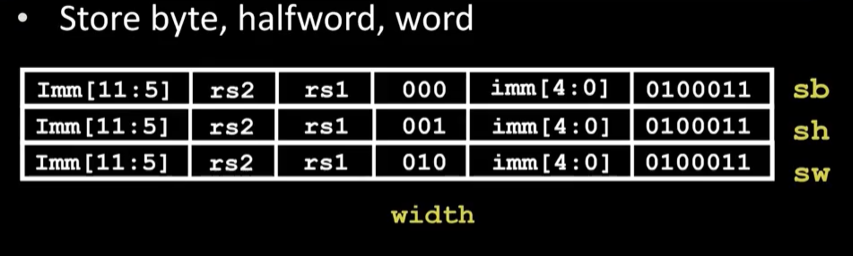

具体查表

/lec11-risc-v-instruction-formats-i/image-13.png
