3D Vision

back to the start 😆

shape prediction and ingest 3D information

5 data representation

• depth map

  • RGB + Depth image = RGB-D image 2.5D
  • raw 3D sensor can easily capture depth information
  • another type of depth map is surface normal map, which is a 2D image that represents the surface normal (using a normal vector) at each pixel location
  • all the mentioned maps can be learned with Fully Convolutional Networks (FCN) 🤔

• Voxel grid

  • Occupancies! like a binary matrix/grid, can be learned by a 3D CNN
    • ECCV2016 paper: 3D-R2N2, using a MLP to bridge the gap between 2D and 3D
    • can use 2D CNN to predict 3D occupancy grid, but sacrifices spatial invariant information
  • need high resolution to capture fine details
  • scaling is nontrivial :(, extremely computationally expensive!
    • Oct tree
    • Nested Shape Layers

• point cloud

  • can represent 3D objects as a set of less points
  • requires new architectures, losses
  • need post-processing for other tasks
    • Chamfer distance: $d_{CD}(S_1,S_2)=\sum_{x \in S_1}\min_{y \in S_2}\lVert x-y\rVert_2^2 + \sum_{y \in S_2} \min_{x \in S_1} \lVert x - y \rVert _2^2$
  • LiDAR 😆

• mesh

  • standard 3D object representation
  • Explicit representation: vertices, faces, edges
  • adaptive: flat? efficient! wanna more details? more faces!
  • can attach data on verts and interpolate over the whole surface, like color, normal, texture…
  • need to come up with new arch to process meshes with NN
    • ECCV2018 paper: Pixel2Mesh
      • Iterative refinement of a 3D mesh
      • Graph Convolutional Network (GCN) to process mesh 😆
      • Aligned vertex features between 2D and 3D

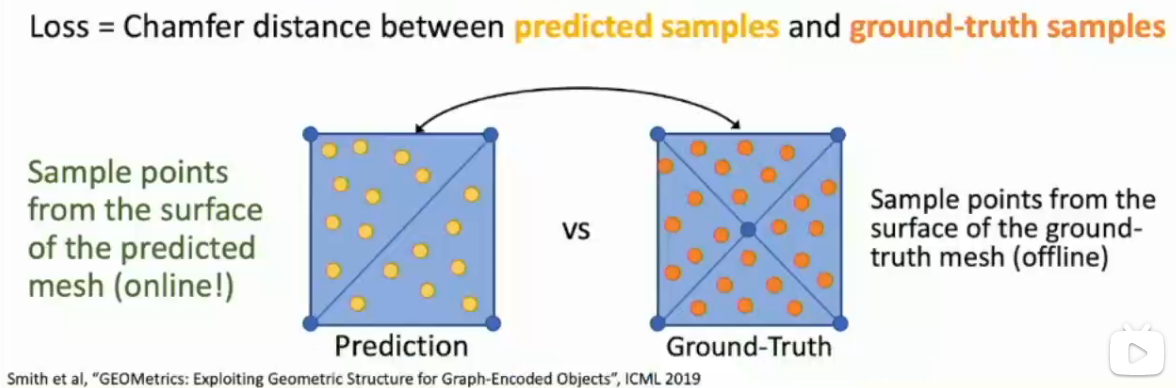

      • Loss: convert mesh to point cloud, then use Chamfer distance as before

• Implicit surface / Signed Distance Function (SDF)

  • trying to learn a function to separate the 3D points into different regions
  • so that we can learn a implicit representation for the 3D shape

metric learning for 3D data

• F1 score: $F_1 = 2 \frac{precision \cdot recall}{precision + recall}$
• IoU: $IoU = \frac{TP}{TP + FP + FN}$

camera system

• view cooridnate system (VCS)
• canonical view volume (CVV)

dataset

• ShapeNet
• Pix3D
• Mesh R-CNN, using Voxel and meshes
