DATA100-lab9: Probability and Modeling

1
2
3
# Initialize Otter
import otter
grader = otter.Notebook("lab09.ipynb")

Lab 9: Probability and Modeling

In this lab, you will explore estimators and modeling in two parts:

  1. You will explore if the “sample max” is a biased estimator for the true max of a population.

  2. Given a sample (and no access to the population), you will bootstrap the sample correlation estimator to infer properties of the population correlation of two features.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
# Run this cell to set up your notebook
import csv
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import scipy.stats
import seaborn as sns
from IPython.display import FileLink, FileLinks
FileLink('path_to_file/filename.extension')
%matplotlib inline
sns.set()
sns.set_context("talk")
import warnings
warnings.filterwarnings('ignore')

from IPython.display import display, Latex, Markdown





Part 1: Estimator for Population Max

Berkeley Half Marathon is an annual weekend-long race here in Berkeley. On race day, you want to know how many people participated in this year’s race, but you don’t have access to the official head count. So you want to find an estimator for this population maximum (Note: we artificially generated this data, but assume it is the population data as described).

The bib numbers of each participant (i.e., racer) are in order of registration—integers from 11 to the total unknown number of participants. You decide to construct a sample by recording the bib number of every racer you see on the street in a given time period, and use the maximum bib number in your sample as an estimator for the true maximum bib number (i.e., total number of particpants, assuming everyone who registered participated). Assume that a racer’s bib number has no relation to their racing experience, so that you are equally likely to see any of bib number in your sample.

Is the sample maximum a good estimator for the population maximum? We’ll use simulation to explore in this part of the lab.

Note: In Part 1 of this lab, we assume that we have access to the true population of racers (and therefore the parameter, the true population maximum), so that we can evaluate the sample maximum across all possible samples. However, in practice we don’t have access to the population, nor the population parameter. In Part 2, we’ll explore the analysis we can do if just provided a single sample.


Let’s first assume that we have access to the total number of participants (in practice we don’t!). The dataset marathon.csv includes information for all racers who registered for the Berkeley Half Marathon.

Load the dataset marathon.csv into the DataFrame marathon, assign true_max to the true maximum bib number of the population. (Recall that max bib number is our proxy for total number of participants.)

1
2
3
4
marathon = pd.read_csv('marathon.csv')
marathon.head()
true_max = int(marathon['Bib Number'].max())
true_max
50732
1
grader.check("q1")

q1
passed! 🚀

1
2
# just run this cell
marathon.describe()

Bib Number
count 50732.000000
mean 25366.500000
std 14645.211265
min 1.000000
25% 12683.750000
50% 25366.500000
75% 38049.250000
max 50732.000000

How would a sample maximum compare to the true maximum? Formally defined, let X1,,XnX_1, \dots, X_n be a sample of nn random variables drawn IID (independent and identically distributed) from the population. Define the sample max as the maximum value of the sample.

samplemax=max(X1,,Xn)\text{samplemax} = \max (X_1, \dots, X_n)

Recall from Data 8 that we can get the empirical distribution of a statistic by simulating, or repeatedly sampling from the population. Suppose we compute the sample max as the maximum bib number from observing the bib numbers of n=200n = 200 random racers. By repeating this process for many randomly selected samples, we get a simulated distributed of the sample max statistic.

Assign sample_maxes to an array that contains 5,000 simulated sample maxes from samples of size 200, each sampled randomly with replacement from the population marathon. (Side note: We sample with replacement because while it suggests that we could see the same racer multiple times in our sample, it allows us to assume each individual in our sample is drawn IID from the population.)

Some useful functions: df.sample (link), np.random.choice (link). Do not edit the np.random.seed call, which sets the pseudorandomness of the autograder.

1
2
3
4
5
6
7
8
9
np.random.seed(2022) # do not change this line

sample_maxes = []
for i in range(5000):
    sample = marathon['Bib Number'].sample(n=200, replace=True)
    sample_maxes.append(sample.max())

sample_maxes = np.array(sample_maxes)
sample_maxes
array([50641, 50724, 50486, ..., 50642, 50434, 50704])
1
grader.check("q2")

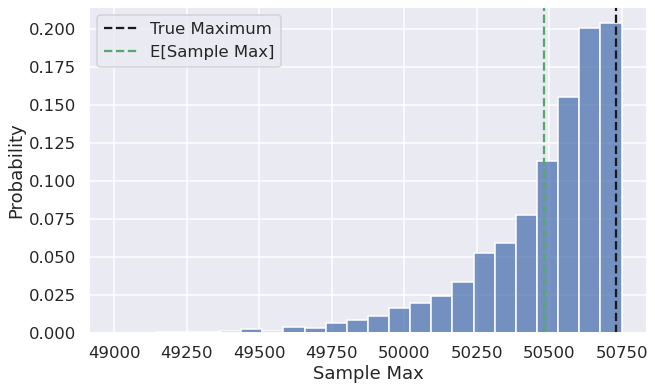

Plot the empirical distribution of the sample maximum that you generated in Question 2. Your plot should look like the below plot. It should include both the average sample maximum and the true population maximum as vertical lines.

Visualization/plotting tips:

  • To plot a vertical line with specific linestyles, see the plt.axvline documentation.

  • To include a label in the legend, pass in label=... to the plot that you’d like to label (example).

    BEGIN QUESTION name: q3a

1
2
3
4
5
6
7
8
plt.figure(figsize = [10, 6])
bins = np.linspace(49000, 50750, 25) # for your plot

avg_sample_maxes = np.mean(sample_maxes)
plt.hist(sample_maxes, bins)
plt.axvline(x = true_max, color ='black', label = 'True Maximum', linestyle = '--')
plt.axvline(x = avg_sample_maxes, color = 'green', label = 'E[Sample Max]', linestyle = '--')
plt.legend();     # show legend

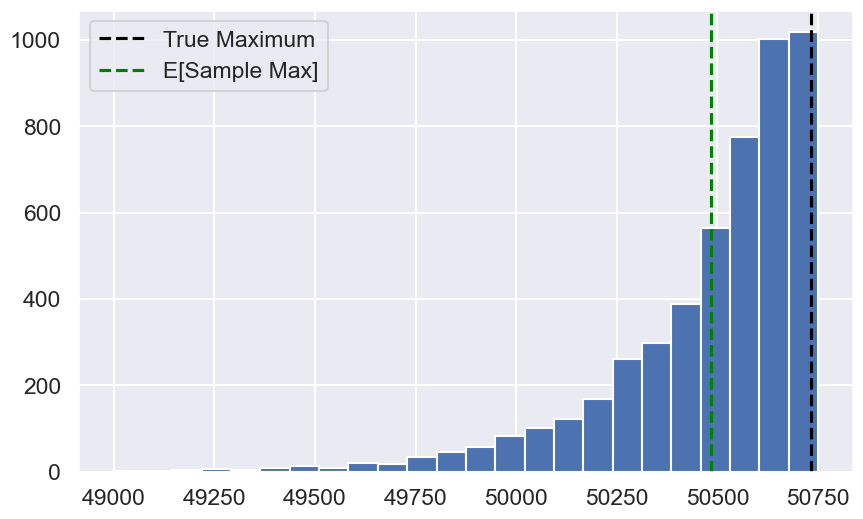

/datalab9/lab09_files/lab09_12_0.png


Recall from Spring 2022 Lecture 17 that an unbiased estimator is one where the expected value of the estimator is the parameter. For example, the sample mean Xˉn\bar{X}_n is an unbiased estimator of the population mean μ\mu because E[Xˉn]=μ\mathbb{E}[\bar{X}_n] = \mu by the Central Limit Theorem.

Based on your analysis in Question 3a, assign q3b to the most correct option; then in the second cell, explain your choice.

  1. The sample maximum is an unbiased estimator of the population maximum.
  2. The sample maximum overestimates the population maximum.
  3. The sample maximum underestimates the population maximum.
1
q3b = 3
1
grader.check("q3b")

q3b
passed! 🚀





Part 2: Inference for the Population Correlation

The previous part assumed that we had access to the population; from there, we simulated many different samples to understand properties of our estimator. In practice, however, we only have access to one sample (and therefore one value of our estimator); we will explore this next.

In Spring 2022 Lecture 16, we defined population correlation as the expected product of standardized deviations from expectation:

r(X,Y)=E[(XE[X]SD(X))(YE[Y]SD(Y))]r(X, Y) = \mathbb{E} \left[\left(\frac{X - \mathbb{E}[X]}{\text{SD}(X)} \right) \left(\frac{Y - \mathbb{E}[Y]}{\text{SD}(Y)}\right)\right]

Note that population correlation involves the population means E[X]\mathbb{E}[X] and E[Y]\mathbb{E}[Y] and the population standard deviations SD(X)\text{SD}(X) and SD(Y)\text{SD}(Y). Correlation provides us with important information about the linear relationship between variables. In this part, we’ll explore the tips dataset once more, and we will compute the sample correlation statistic of two features: total bill and party size. We will then explore how the sample correlation estimates the true population correlation parameter.

The below cell assigns data to our single sample collected about customer tipping behaviors.

1
2
3
4
# just run this cell
tips = sns.load_dataset("tips")
data = tips[['total_bill','size']]
data

total_bill size
0 16.99 2
1 10.34 3
2 21.01 3
3 23.68 2
4 24.59 4
... ... ...
239 29.03 3
240 27.18 2
241 22.67 2
242 17.82 2
243 18.78 2

244 rows × 2 columns


To estimate the population correlation, we’d like to use an estimator based on data from a simple random sample of our tips data set. For a sample (X1,Y1),,(Xn,Yn)(X_1, Y_1), \dots, (X_n, Y_n) generated IID from a population, define the sample correlation as follows:

i=1n(XiX)(YiY)i=1n(XiX)2i=1n(YiY)2\frac{\sum\limits_{i=1}^n\left(X_i-\overline{X}\right)\left(Y_i-\overline{Y}\right)}{\sqrt{\sum\limits_{i=1}^n \left(X_i - \overline{X}\right)^2}\sqrt{\sum\limits_{i=1}^n \left(Y_i - \overline{Y}\right)^2}}

Note the similar structure to the true population correlation. If the ii-th individual in our sample has “total bill” XiX_i and “party size” YiY_i, then X,Y\overline{X}, \overline{Y} are the sample means of total bill and party size, respectively.

Implement the sample_correlation function in the cell below to compute the sample correlation for sample, which has two columns: total_bill and size.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
def sample_correlation(sample):
    """Compute sample correlation of x and y.
    sample: A DataFrame of dimension (n, 2)
    """
    x, y = sample['total_bill'], sample['size']
    x_bar = np.mean(x)
    y_bar = np.mean(y)
    n = len(sample)
    return np.sum((x - x_bar) * (y - y_bar)) / np.sqrt(np.sum((x - x_bar) ** 2) * np.sum((y - y_bar) ** 2))

sample_correlation(data)
np.float64(0.5983151309049014)
1
grader.check("q4")

Let the sample correlation of data be the estimator for the population correlation. In other words:

  • Parameter: Population correlation. Unknown, but fixed.
  • Statistic: Sample correlation. Dependent on the random sample we obtained.
  • Estimator: The sample correlation statistic corr_est is an estimator of the population correlation parameter.
1
2
3
# just run this cell
corr_est = sample_correlation(data)
corr_est
np.float64(0.5983151309049014)

What can we infer about the population correlation given this estimate? Is it possible that the total bill and the party size are actually uncorrelated?

We can perform bootstrapped hypothesis testing as follows:[假设检验]

Null hypothesis: Total bill and party size are uncorrelated; the population correlation is 0.

Alternate hypothesis: The population correlation is not 0.

To test this hypothesis, we can bootstrap a (1p)(1-p)% confidence interval for the population correlation and check if 0 is in the interval. If 0 is in the interval, the data are consistent with the null hypothesis. If 0 is not in the interval, we reject the null hypothesis at the pp% significance level. For more on the duality of the confidence interval and the p-value, see this StackExchange discussion.


Implement the ci_correlation function in the cell below that returns a bootstrapped confidence interval at the confconf% level. Your bootstrap should resample the sample dataframe with replacement m times to construct m bootstrapped sample correlations using the sample_correlation function you implemented in Question 4.

Then, assign boot_ci to the bootstrapped 95% confidence interval for the tips data sample.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
def ci_correlation(sample, conf, m=5000):
    """Compute a confidence interval for an estimator.
    sample: A DataFrame or Series
    estimator: A function that maps a sample DataFrame to an estimate (number)
    """
    estimates = []
    n = len(sample)
    for j in range(m):
        resample = sample.sample(n=n, replace=True)
        estimates.append(sample_correlation(resample))
    lower = np.percentile(estimates, (100-conf)/2)
    upper = np.percentile(estimates, 100-(100-conf)/2) # 一个用于计算数组沿指定轴的百分位数的函数
    return (lower, upper)

boot_ci = ci_correlation(data, conf=95)
boot_ci
(np.float64(0.5126429599326643), np.float64(0.6790547421163837))
1
grader.check("q5")

Now that we have the bootstrapped 95% confidence interval of the parameter based on a single sample of size 244, let’s determine what we can conclude about our population correlation.

Fill in the blanks for the sentence:

By bootstrapping our sample data, our estimate of the population correlation is ________ with a ___ % confidence interval of ________.

0.5983, 95, (np.float64(0.5126429599326643), np.float64(0.6790547421163837))


In the cell below, interpret the statement in Question 6a. Can we reject the null hypothesis at the 5% significance level? What can we infer about the relationship between total bill and party size?

拒绝原假设,接受备择假设==>有关联

Congratulations! You are finished with this assignment.
