CS186-L8: Relational Algebra
Contents

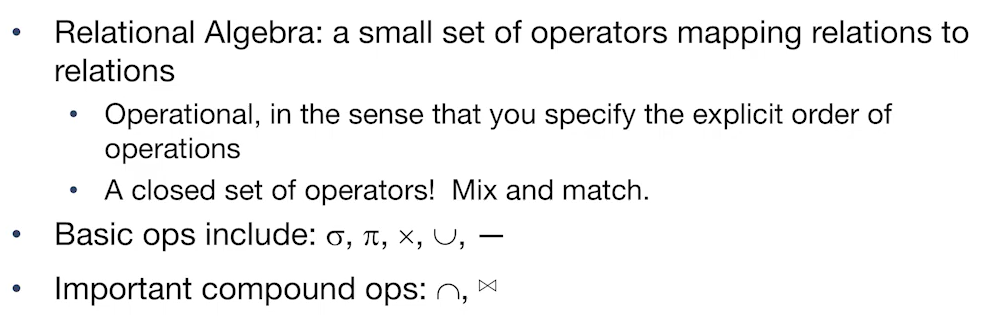

Relational Algebra Intro
Relational algebra 😵
- algebra on sets —> mean no duplicates!
- operational description of transformations
Relational Calculus 😵
- basic of SQL
以上两者被证明等价并且使得SQL能够被编译–long story……
Relational Algebra Operators
Unary Operators

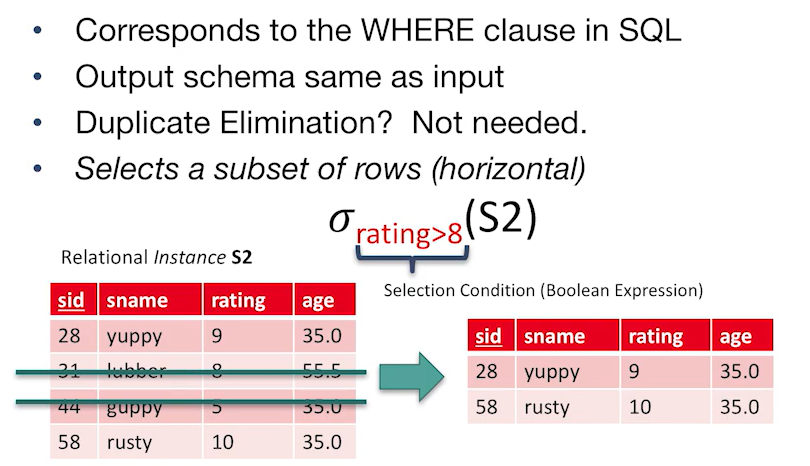

- Selection (σ) : select rows that satisfy a condition

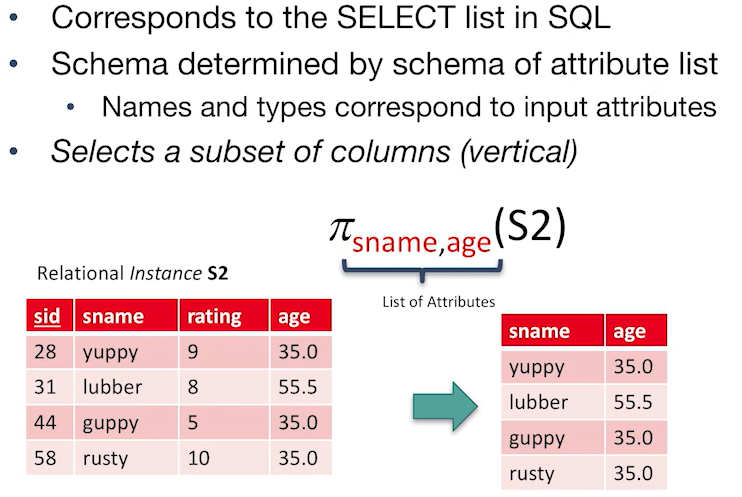

- Projection (π) : select specific columns
- 如果结果是multiset, 去重! 虽然real system不会自动去重

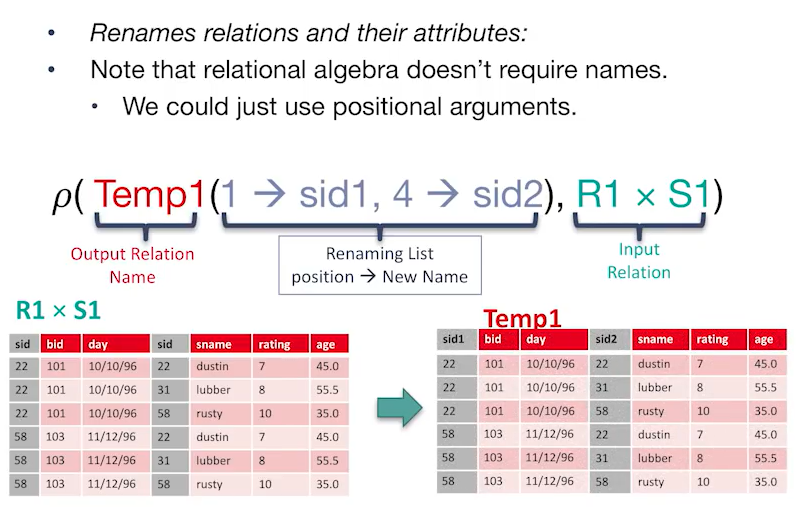

- Rename (ρ) : rename a column
- Union (∪) : tuples in either r1 or r2
- two input relations, must be compatible (same number of columns or “fields”, and have same data types corresponding to the same field)
- UNION in SQL
- Difference (−) : tuples in r1, but not in r2
- same with union, both input relations must be compatible
- EXCEPT in SQL
- Cross Product (×) : cartesian product of two relations
- how many rows in the result? $|R_1|*|R_2|$
- none duplicate tuples
Compound Operators

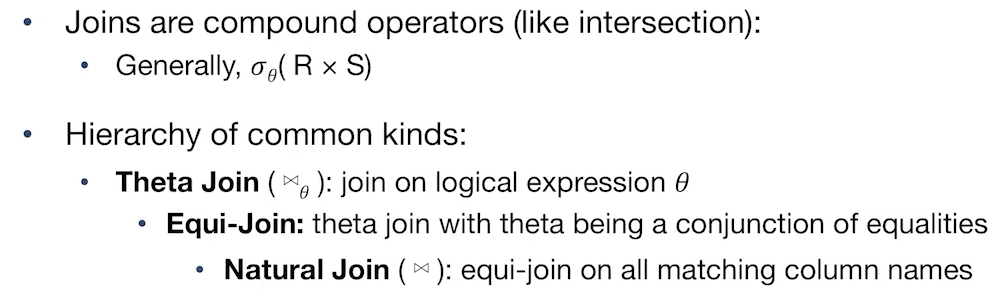

- Join (⋈ / $⋈_\theta$) : join two relations on common attributes
- avoid cross product as we can!

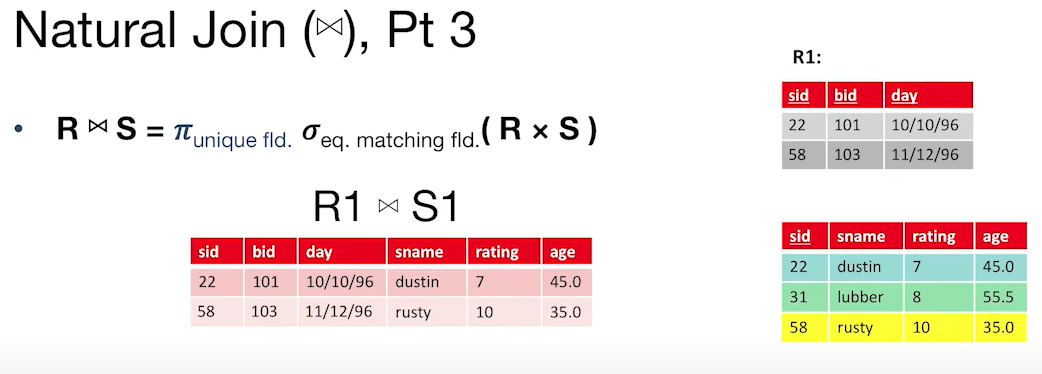

- natural join
- Intersection (∩) : tuples that appear in both r1 and r2
- $S_1 \cap S_2 = S_1 - (S_1 - S_2)$
Grouping and Aggregation Operators
- Group By / Aggregation Operators($\gamma$)
- $\gamma_{age, AVG(rating)}$ (Sailors)
- with selection (HAVING)
- $\gamma_{age, AVG(rating), COUNT(*)>2}$(Sailors)
Summary
