CS186-L17: Recovery

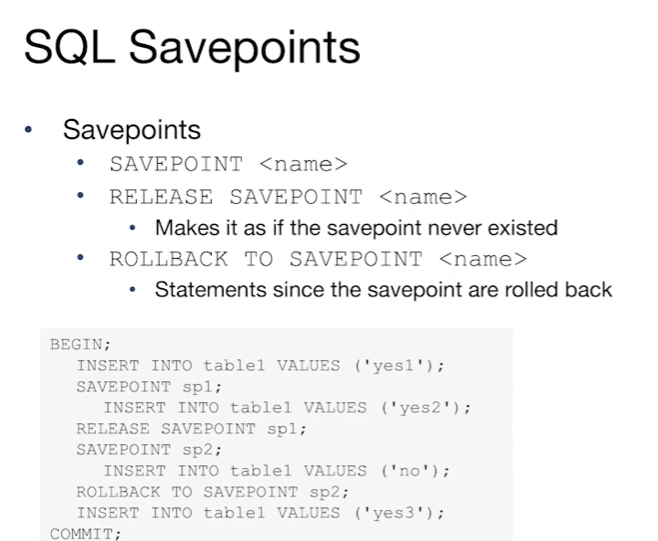

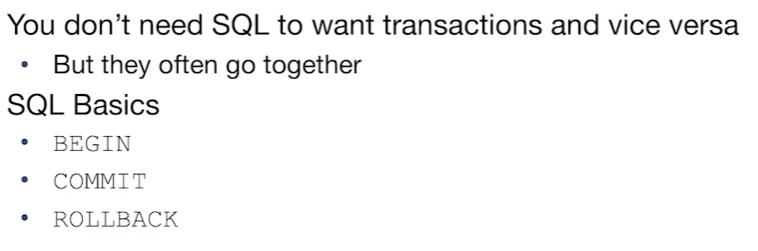

Need for Atomicity and Durability, SQL support for Transactions

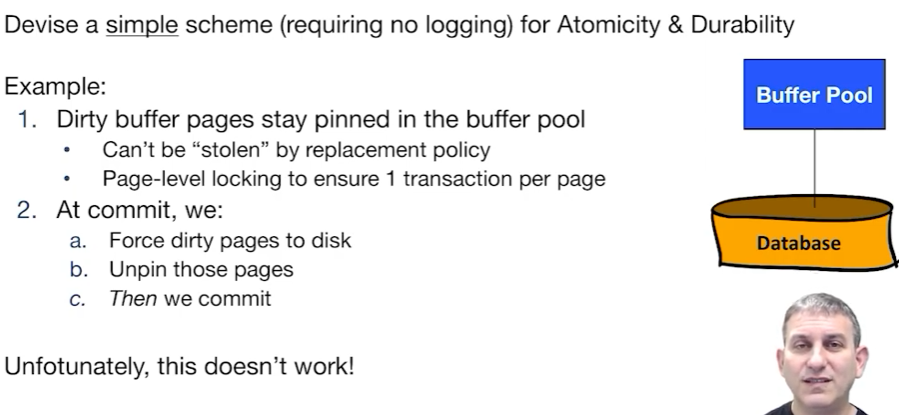

Strawman Solution

No Steal/Force policy

seem like no a good choice for recovery

• not scalable in buffer
• if crash in 2a, inconsistencies will occur

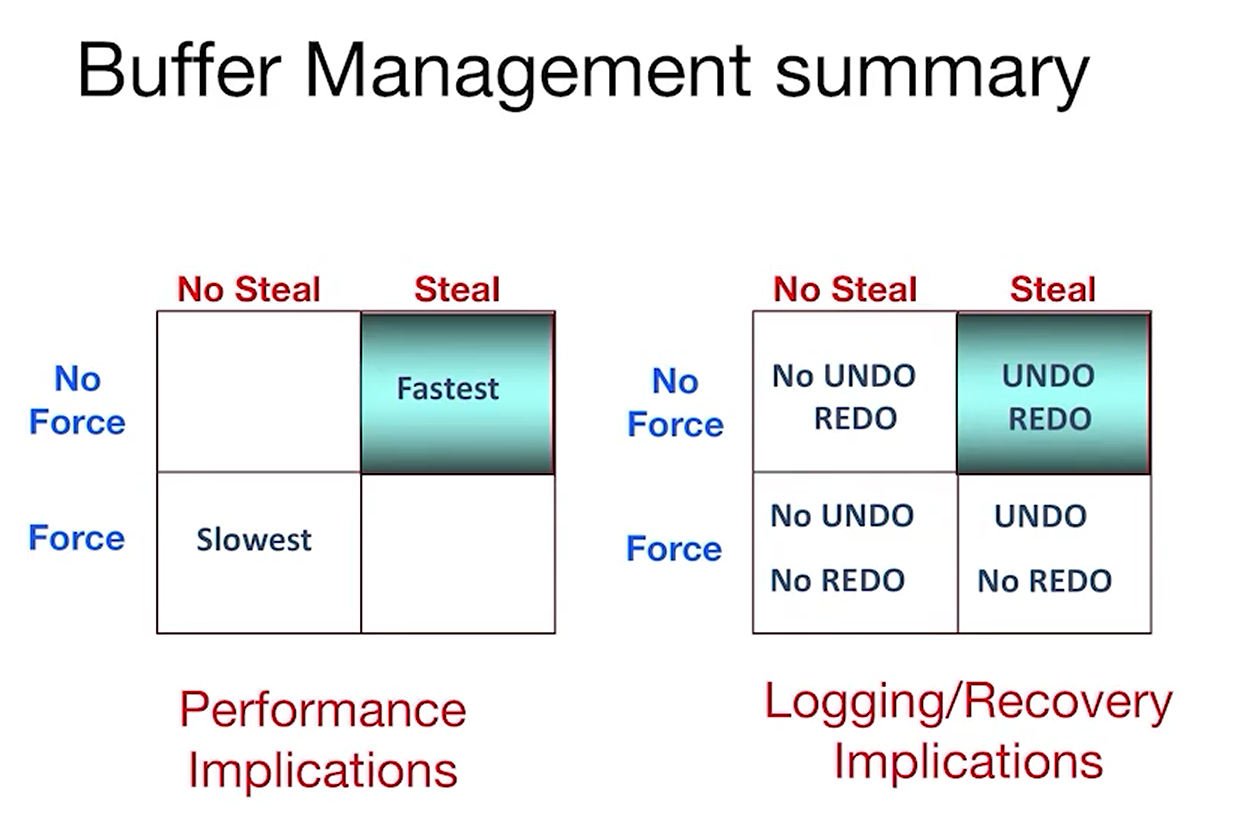

STEAL / NO FORCE, UNDO and REDO

STEAL/NO FORCE

• no force:

  • problem: sys crash before dirty page of a committed transaction is written to disk
  • solution: flush as little as possible, in a convenient space, prior to commit. allows REDOing modifications

• STEAL:

  • must remember the old value of flushed pages to support undo

pattern

Intro to Write-Ahead Logging (WAL)

• Log: a ordered list of log records to allow redo/undo

  • log records: <XID, pageID, offset, length, old data, new data>
  • and other info

• Write-Ahead Logging (WAL):

• 1. force the log record before the data page is written to disk
• 2. force all log records before a transaction is committed

• #1 with UNDO guarantee Atomicity and #2 with REDO guarantee Durability ===> steal/no force implementation

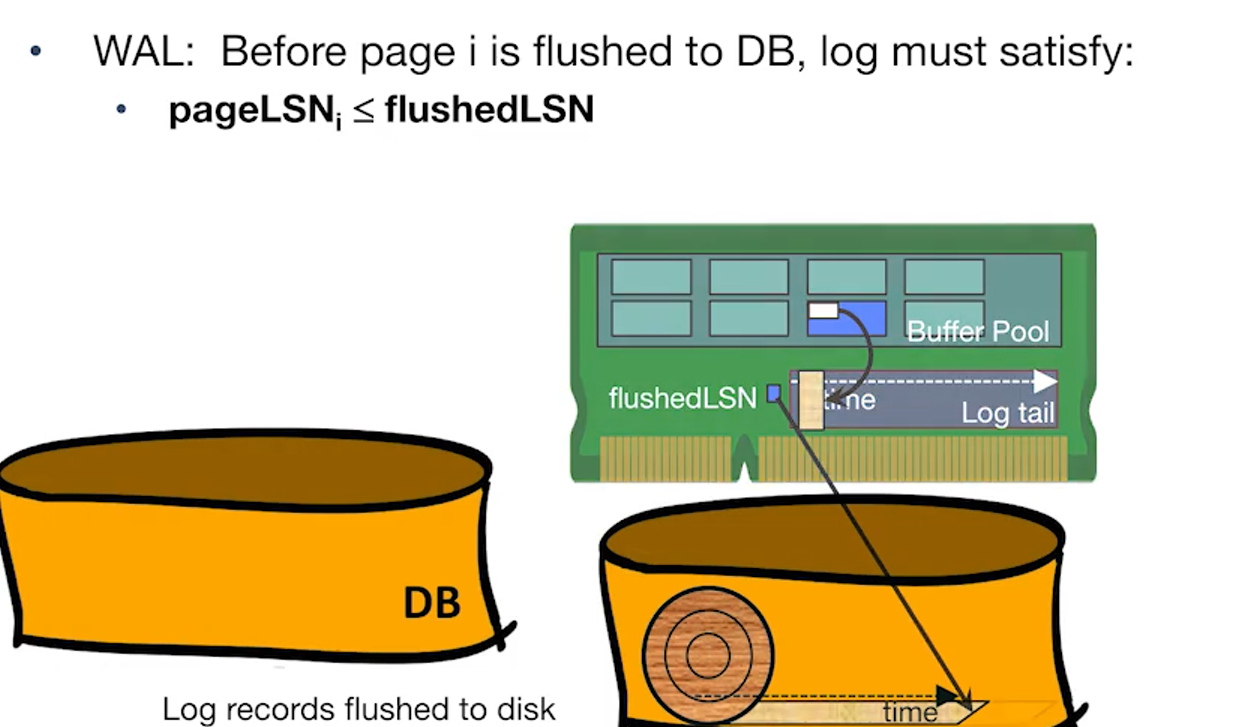

对于每个log record，有一个对应的Log Sequence Number (LSN)来标识它在日志中的位置，我们对最近（lately）的LSN们感兴趣，flushedLSN, pageLSN等等

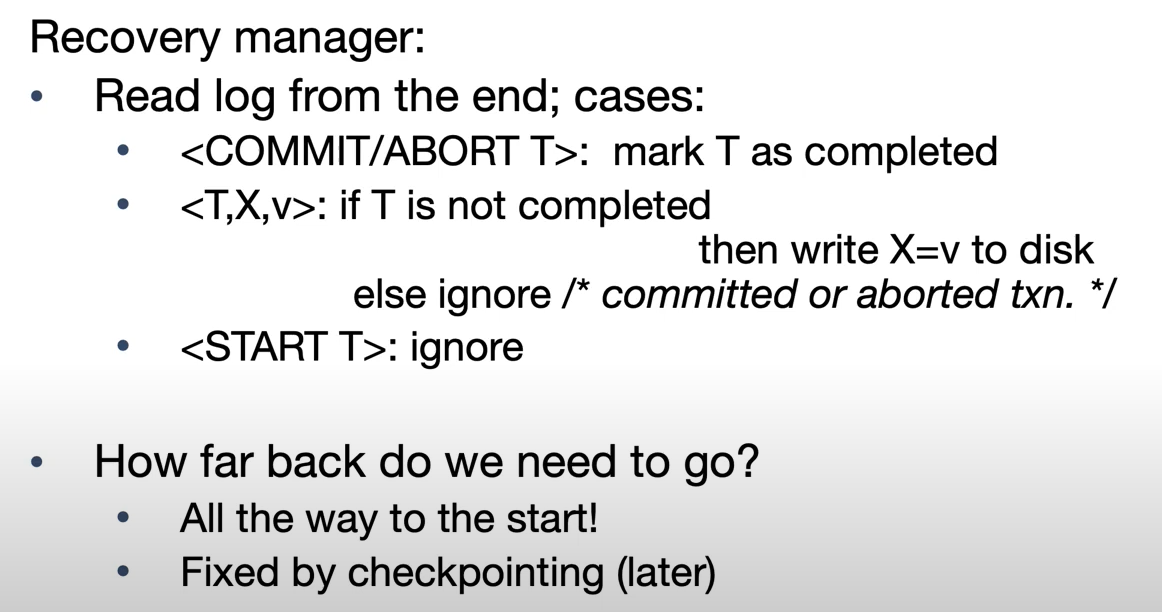

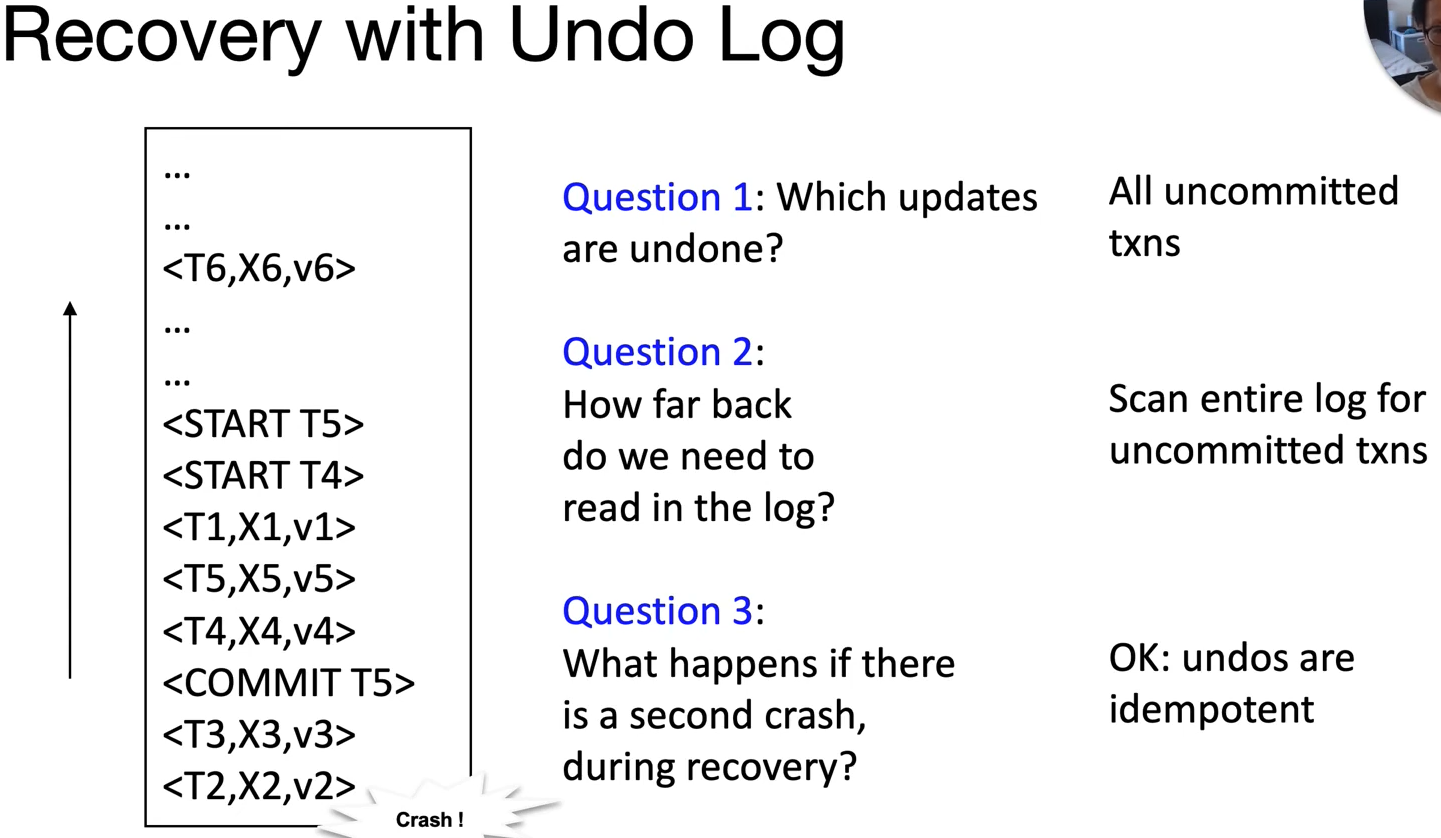

Undo logging

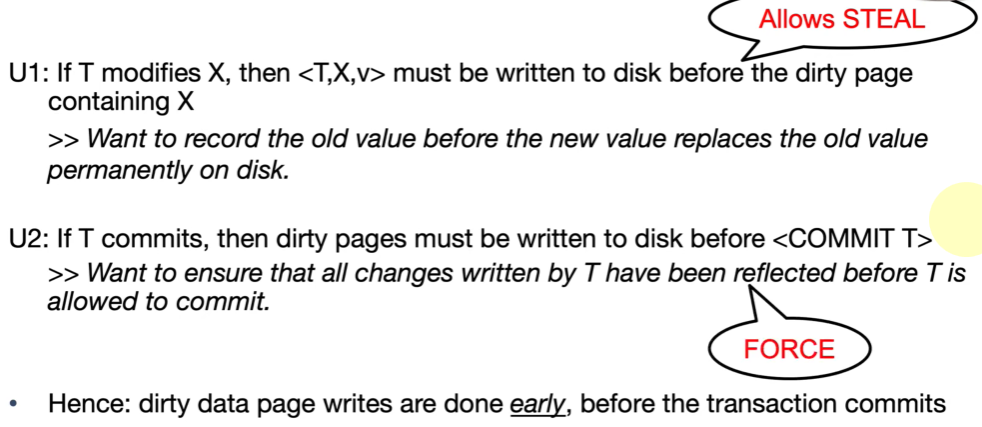

Rule: 和WAL有点不一样，注意U2，COMMIT放在最后！ presudo code:

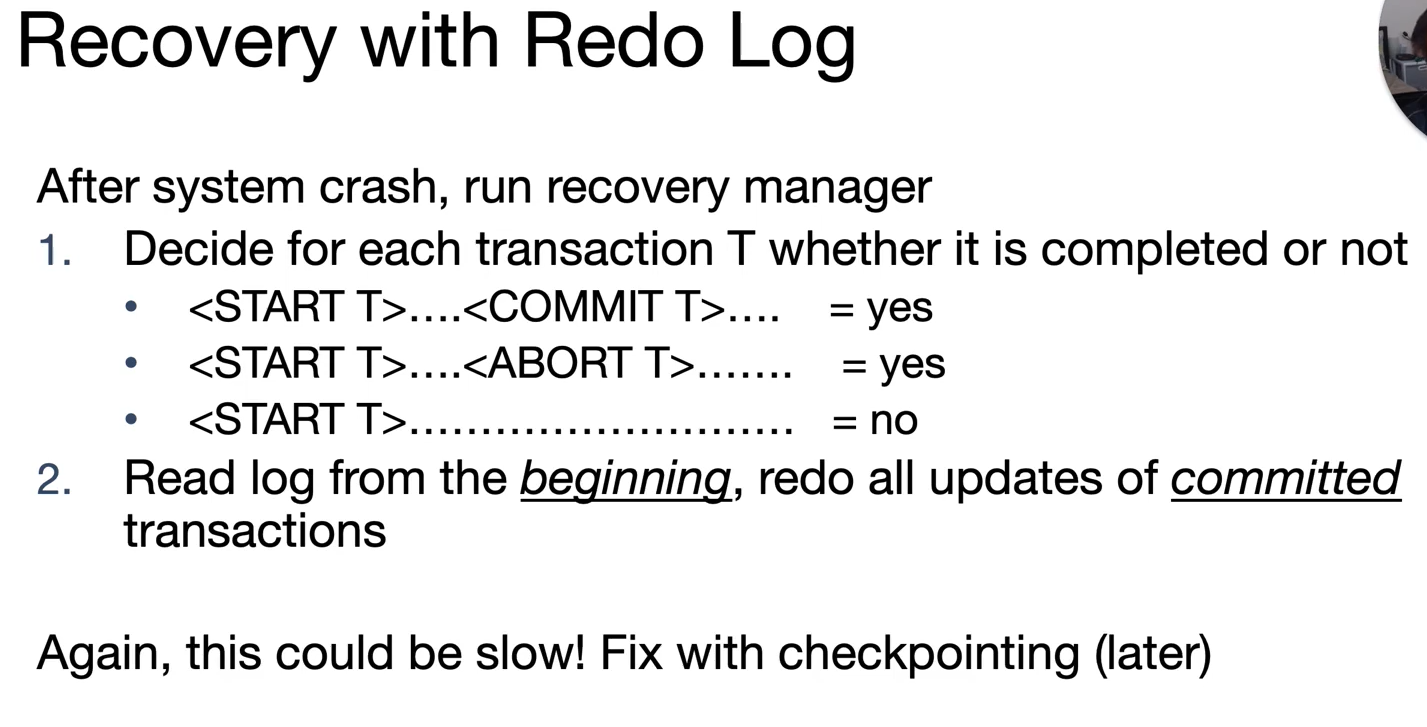

Redo logging

No steal/no force from beginning to end, redo all log records that are committed

incomplete? do nothing!

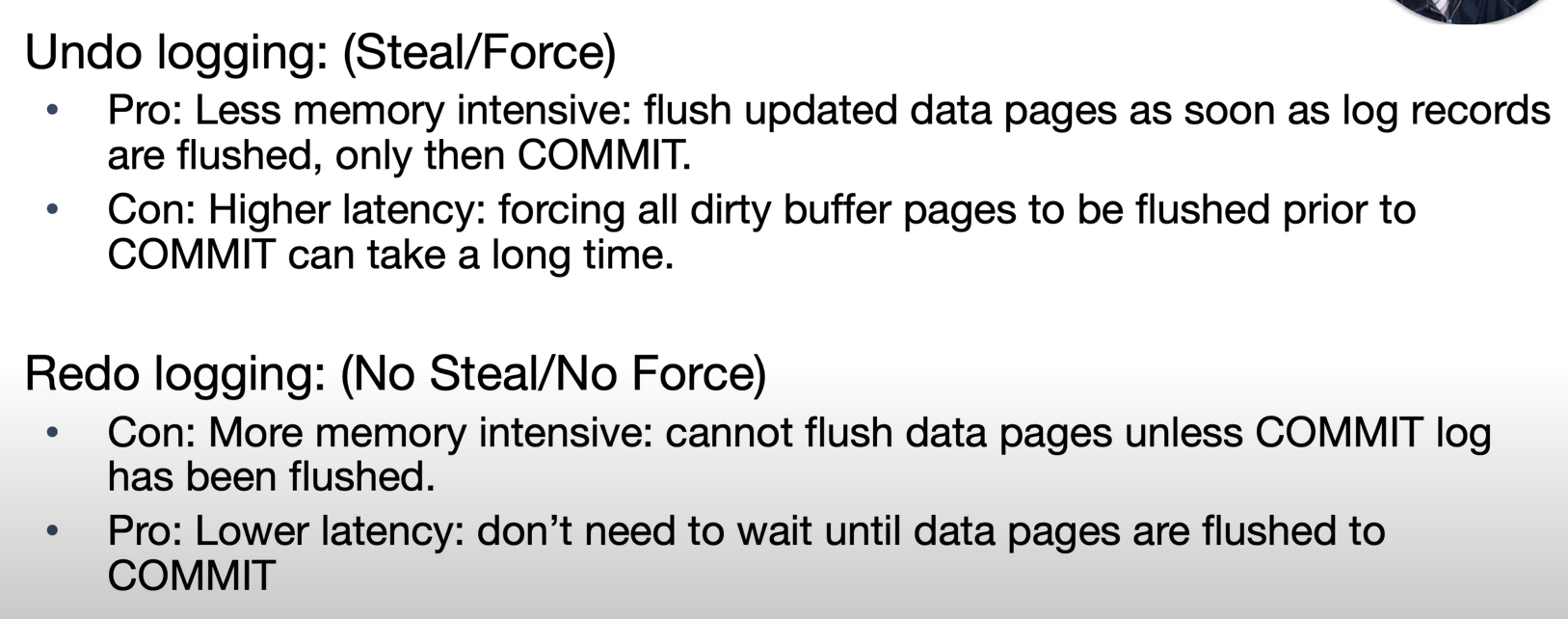

两者对比

ARIES logging

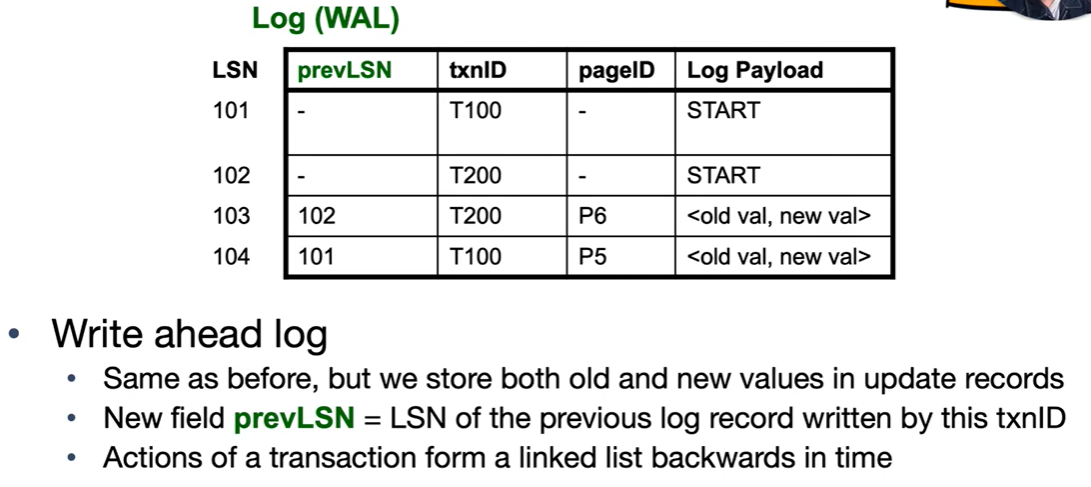

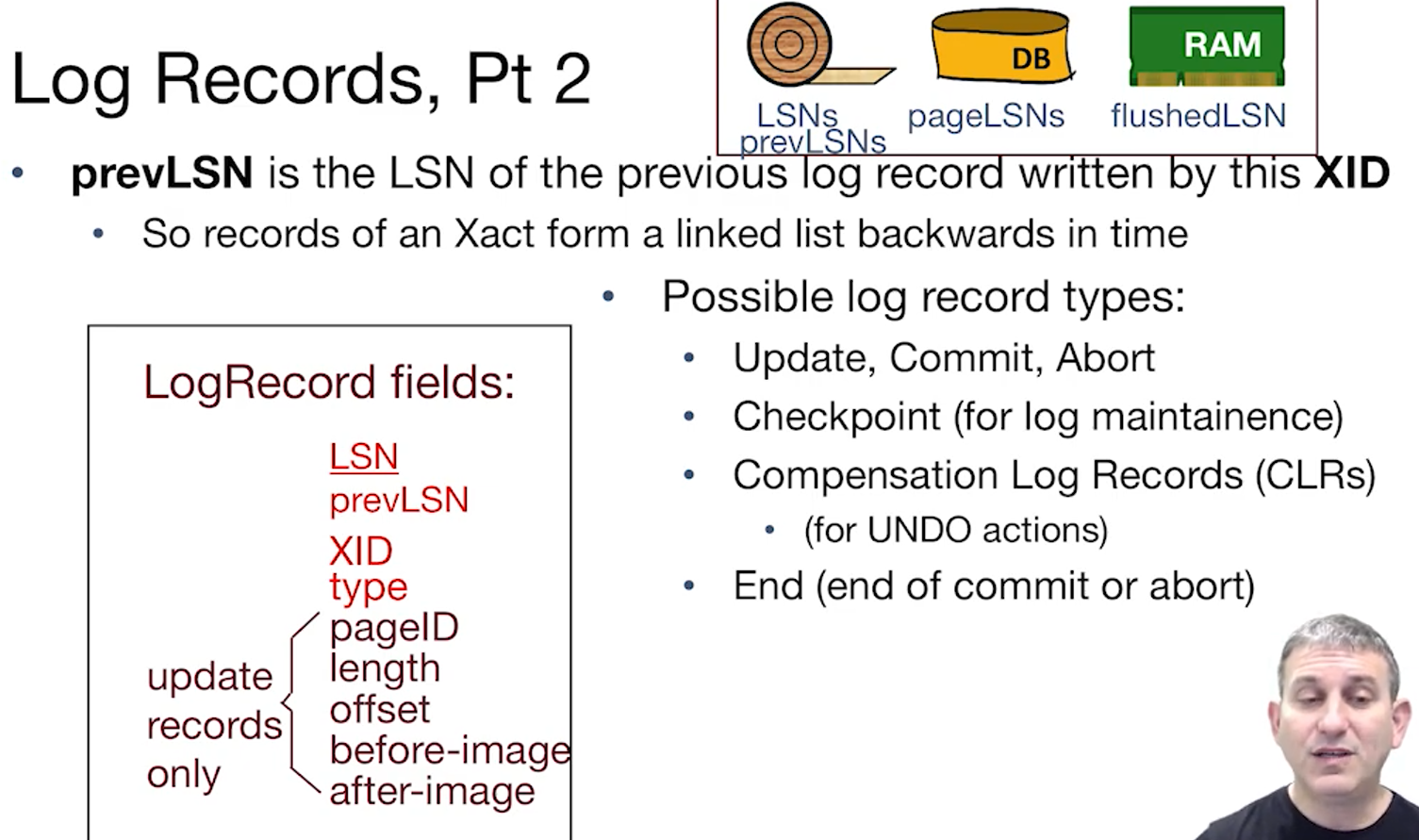

Log records format belike: 注意有许多不同的log record种类，构成上有不一样的地方

prevLSN ===> linkedlist

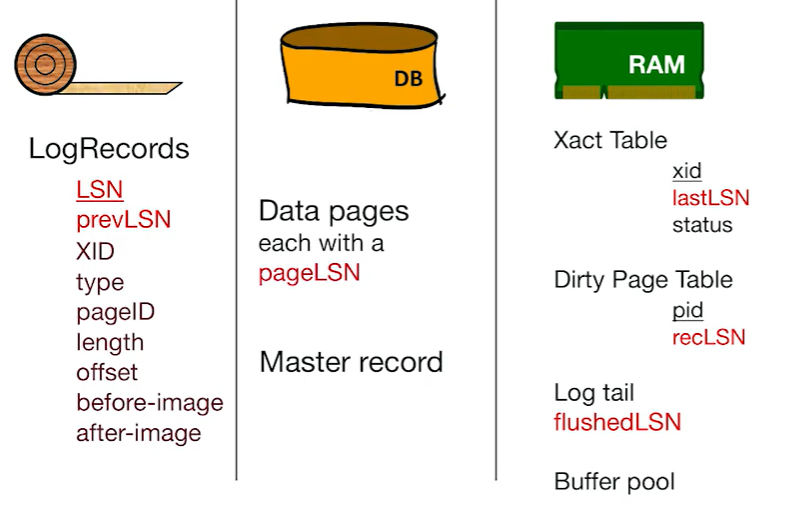

dirty page ===> as long as it is in memory, it is dirty 😀 物理空间的抽象分布

ARIES and Checkpointing

Checkpoint:

• idea: save the DB state periodically to disk, so that we don’t need to always process entire log records during recovery
• During a checkpoint:
  • stop accepting new transactions
  • wait for all active transactions to commit or abort
  • flush log to disk
  • flush dirty pages to disk
  • write a checkpoint record to the log, flush log again
  • At this point, changes by committed transactions are written to disk, and aborted transactions are rolled back.

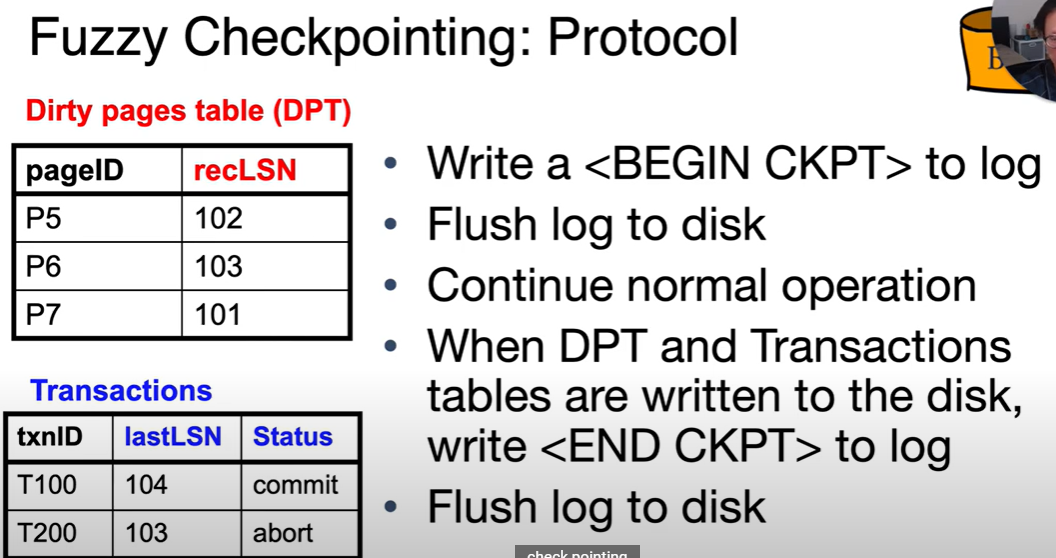

Fuzzy Checkpoint:

• save state of all txns and pages status
  • some txns can be running during checkpoint and dirty pages not flushed yet

data structure and idea: write-ahead log 🤔

ARIES logging during normal execution, commit and abort

Normal Execution

基本上就是把上述的链表实现一遍，注意(WAL)概念和定义即可

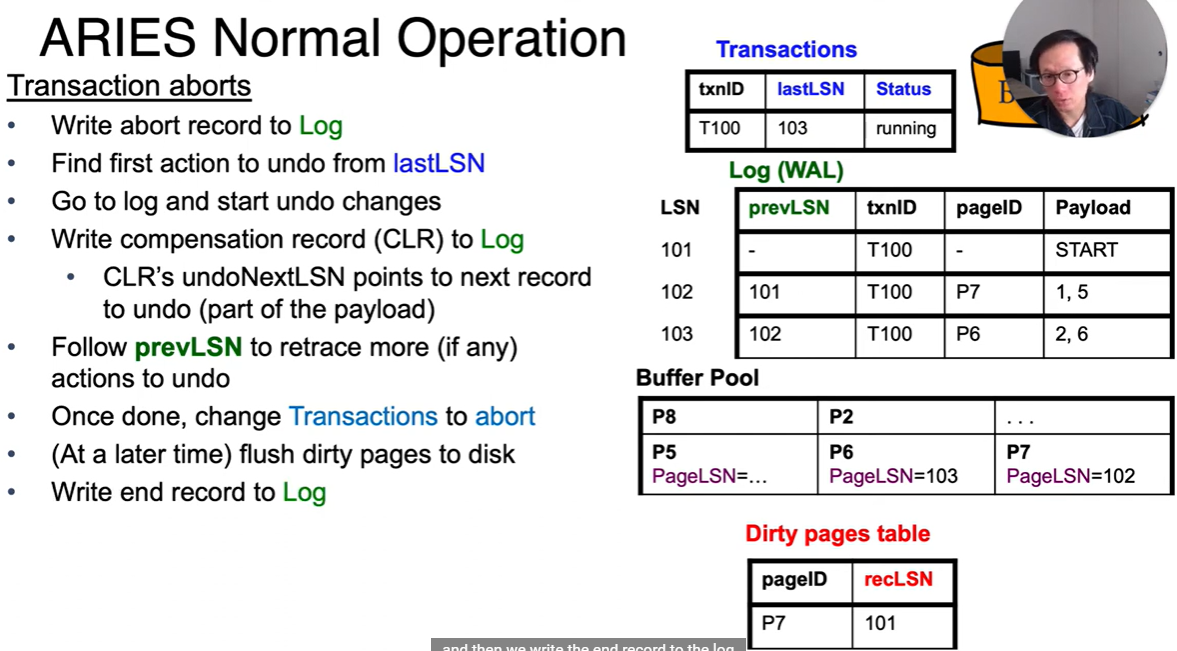

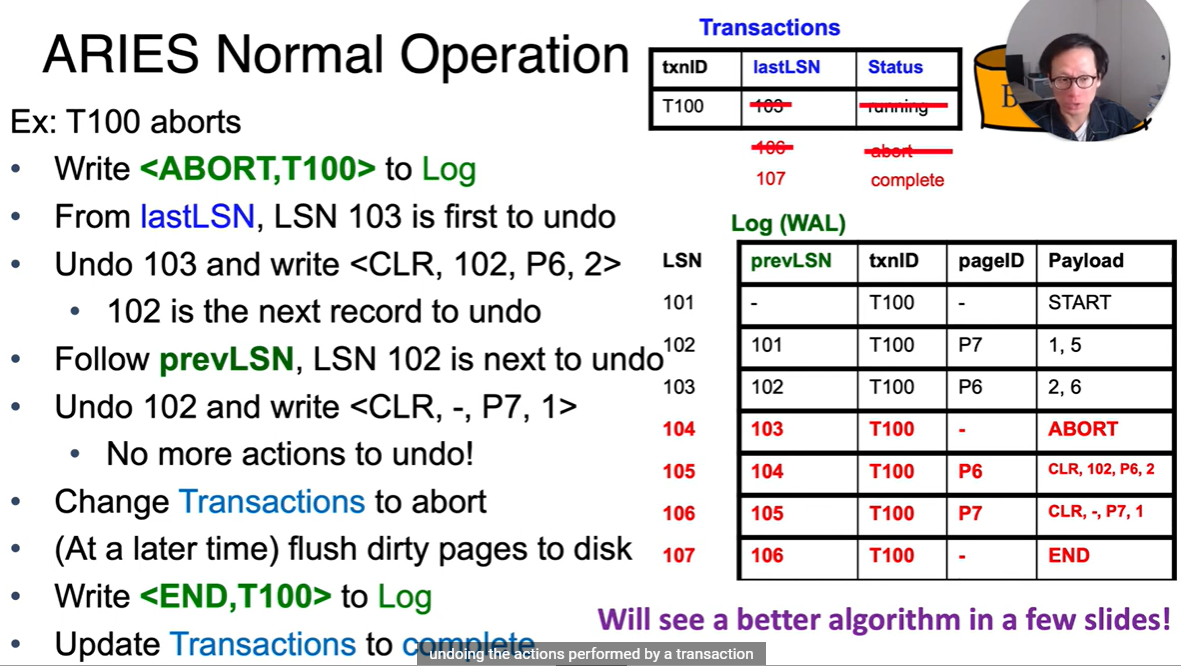

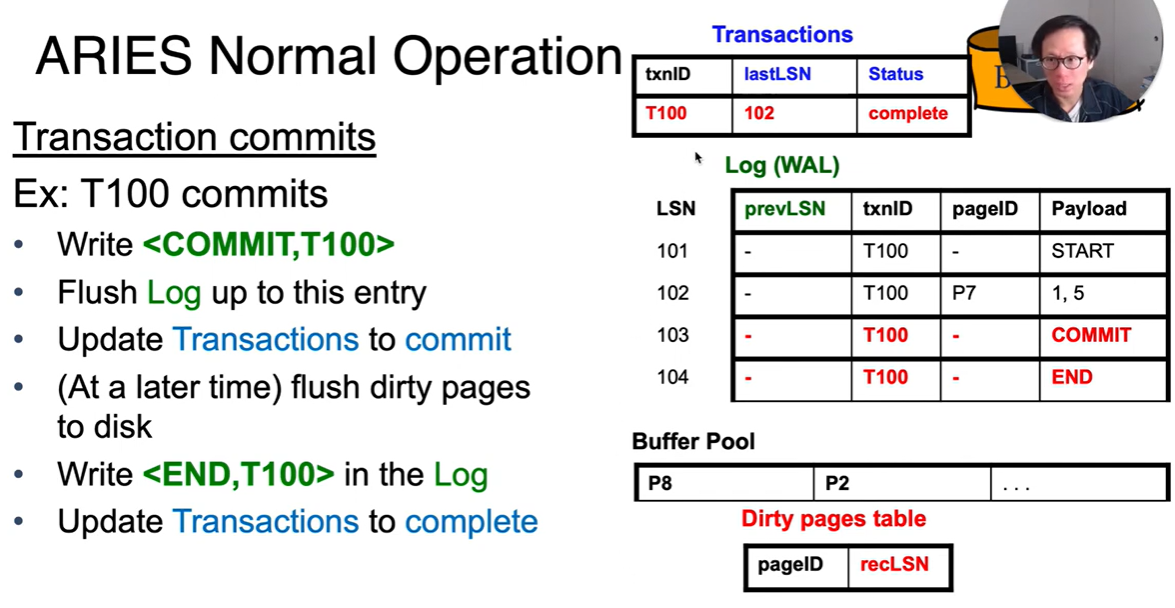

Commit and Abort

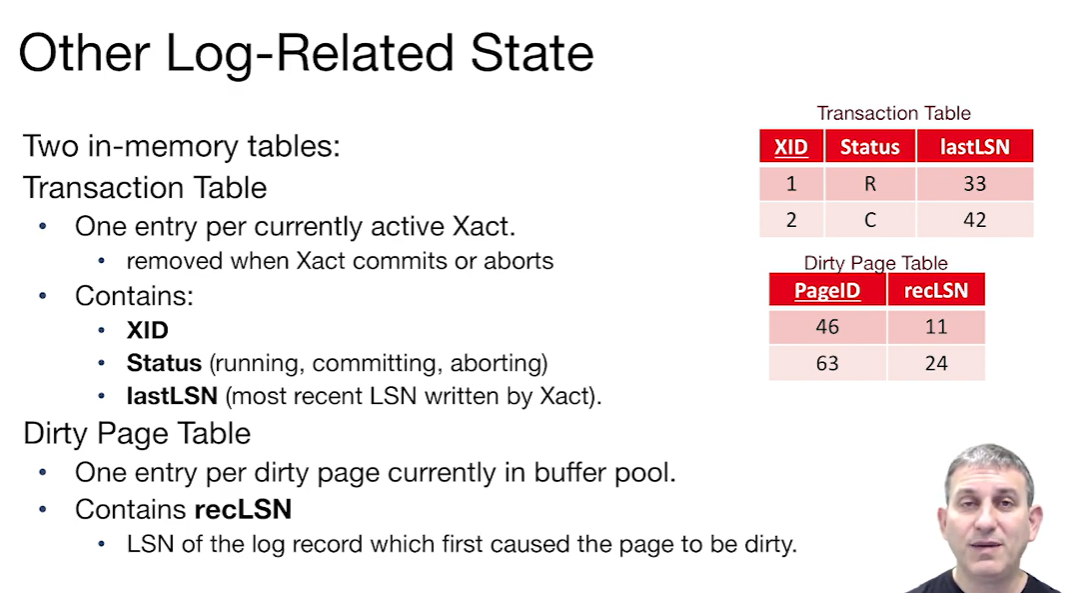

同样注意管理四个区域：Transaction Table, Log, Buffer Pool, and Dirty Page Table 比较经典的example

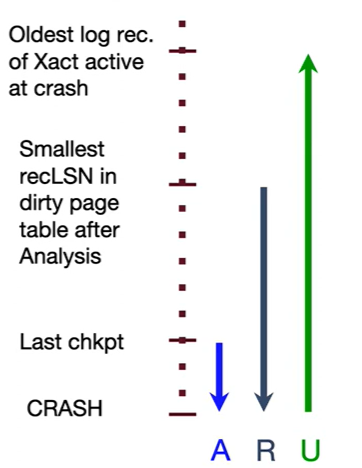

ARIES Recovery, Overview and Analysis, Redo and Undo Phases

Analysis Phase:

• 1. scan forward from the last checkpoint,
  • END record? rm Xact form Xact table, do not care anymore
  • UPDATE record? if its page P not in DPT, add it to DPT, set its recLSN = LSN
  • !END record?
    • if not in X table, add it to X table
    • set lastLSN = LSN
    • change X’s state to COMMITTED if see a commit record, ABORTED if see an abort record
• 2. at the end of Analysis Phase,
  • for any X in X table in COMMITTED state,
    • write a corresponding END record to the log record
    • and rm X from X table
  • now X table can tell which X were active at time of crash
    • change status of running X to ABORTED and write an ABORT record to the log
  • DPT says which dirty pages might not have been flushed to disk yet

Redo Phase:

• 1. scan forward from the smallest recLSN in DPT,
  • For each update log record or CLR with a given LSN, REDO the action unless:
    • affected page is not in DPT
    • affected page is in DPT, but has recLSN > LSN
    • pageLSN in DB >= LSN
  • to REDO an action:
    • reapply logged action
    • set pageLSN in DB to LSN. NO additional logging, no forcing

Undo Phase:

• 1. scan backward from the CRASH point,

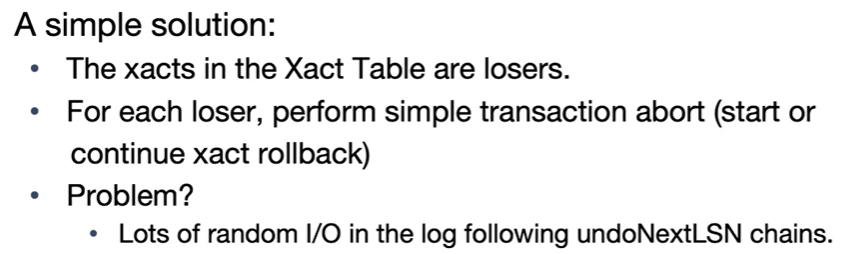

  • simple solution
    •
  • do at once

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16

toUndo = {lastLSNs of all X in X table}
while !toUndo.isEmpty():
    thisLR = toUndo.find_and_remove_largest_LSN()
    if thisLR.type == CLR:
        if thisLR.undoNextLSN != NULL:
            toUndo.add(thisLR.undoNextLSN)
        else:
            write an END record for thisLR.xid in the log
    else:
        if thisLR.type == UPDATE:
            write a CLR record for the undo in the log
            undo the update in the database
        if this.LR.type != NULL:
            toUndo.add(thisLR.undoPrevLSN)
        elif thisLR.type == NULL:
            write an END record for thisLR.xid in the log

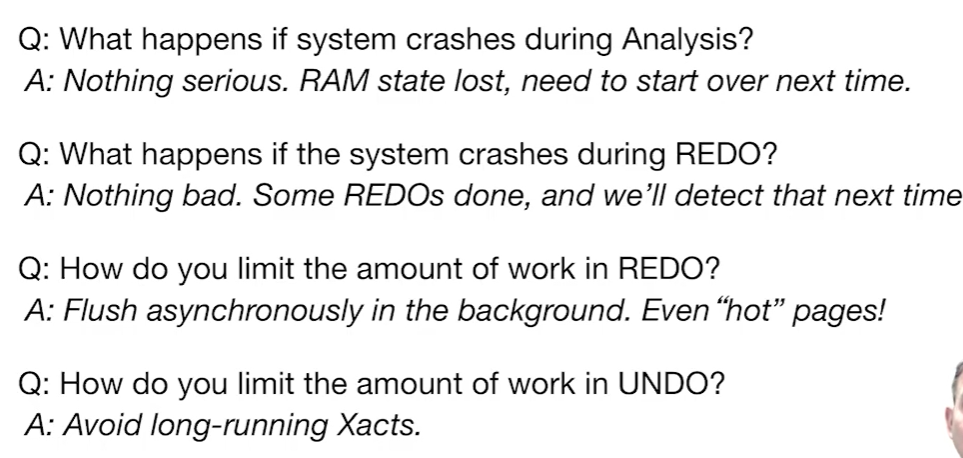

FAQ
