CS186-L16: DB Design: FDs and Normalization
Contents
Functional Dependencies

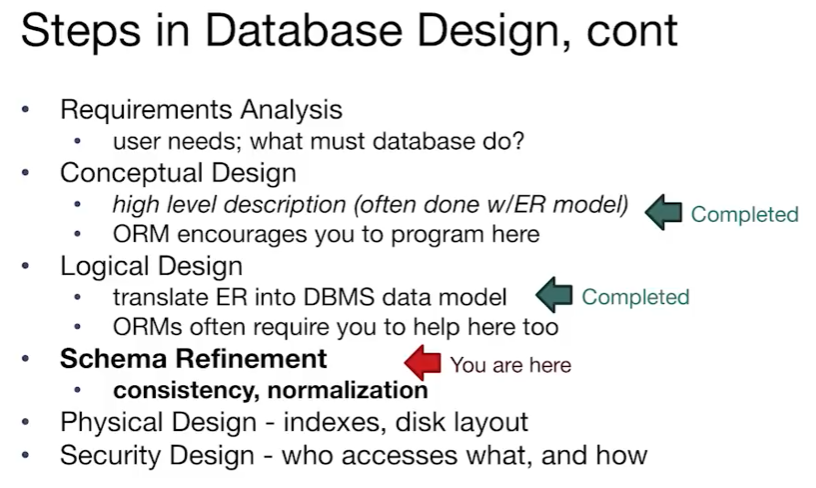

big picture
Def
- X -> Y means X determines Y, X and Y can be a single column or multiple columns
- F+ means that to be the set of all FDs that are implied by F

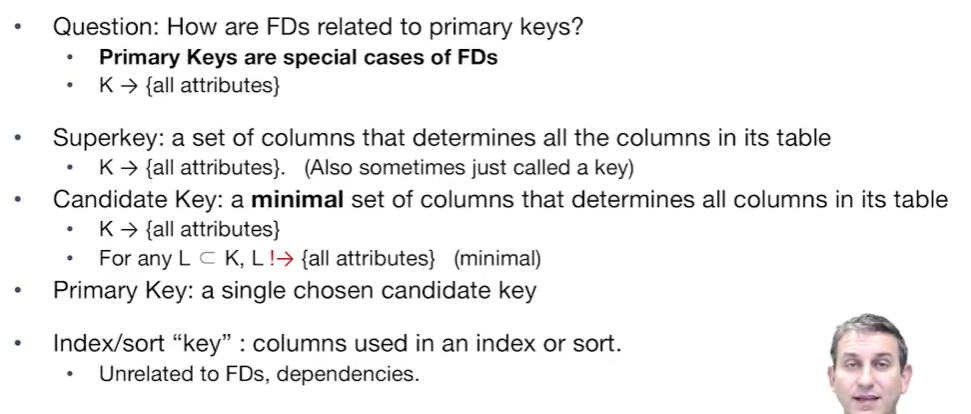

terminology
Anomalies

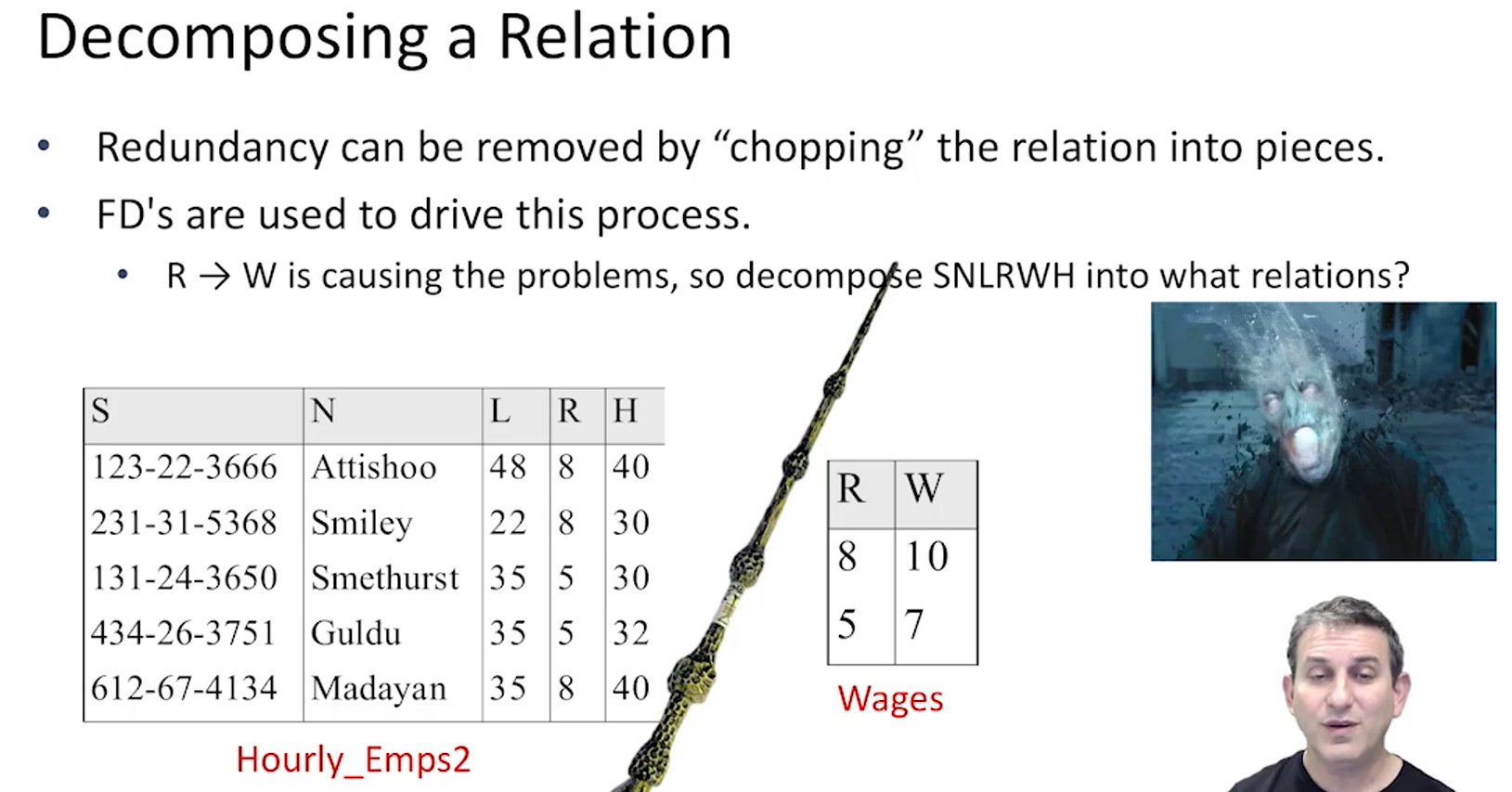

可以用FD分解relation从而避免冗余

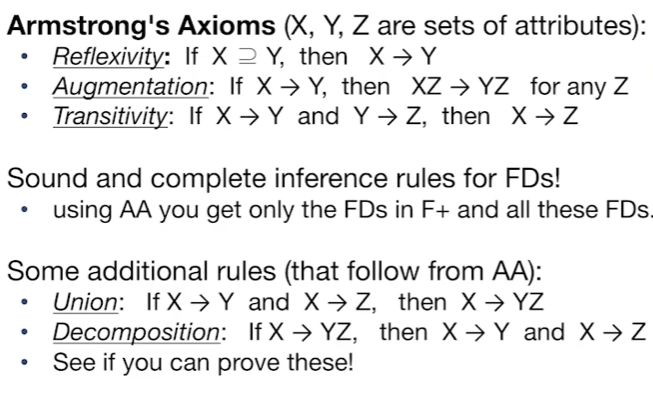

Armstrongs Axioms

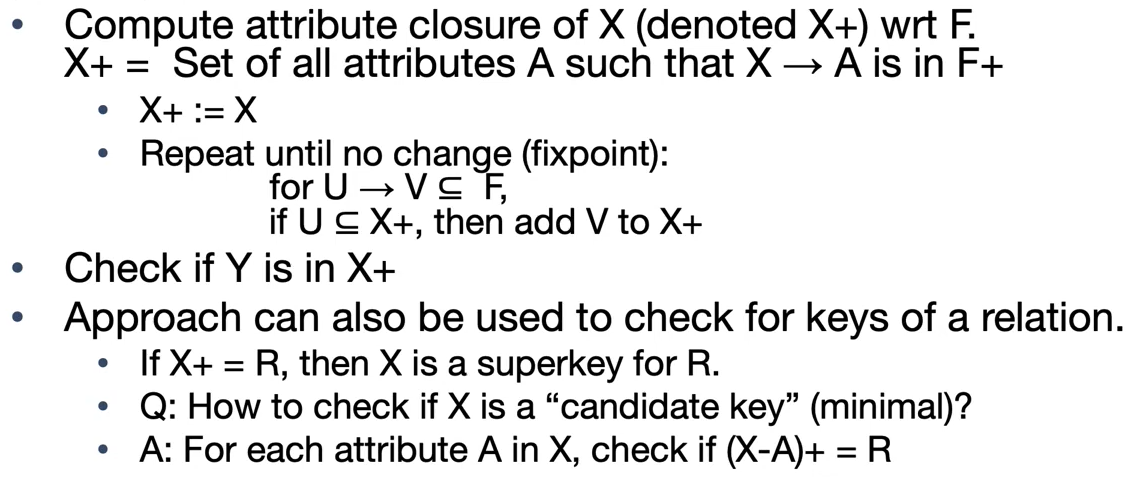

Attribute Closure
wanna check if X->Y is in F+
BCNF and other Normal Forms

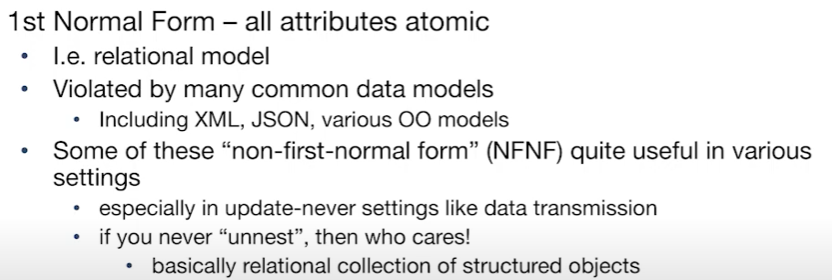

Basic Normal Form
NF is a def of data model!

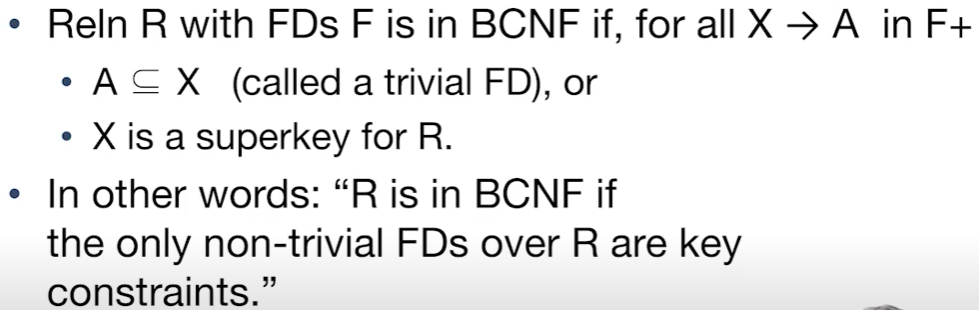

Boyce-Codd Normal Form
Lossless Join Decompositions
Def: decomposition won’t create new attributes, and will cover the original attributes (不是完全无重叠分割)

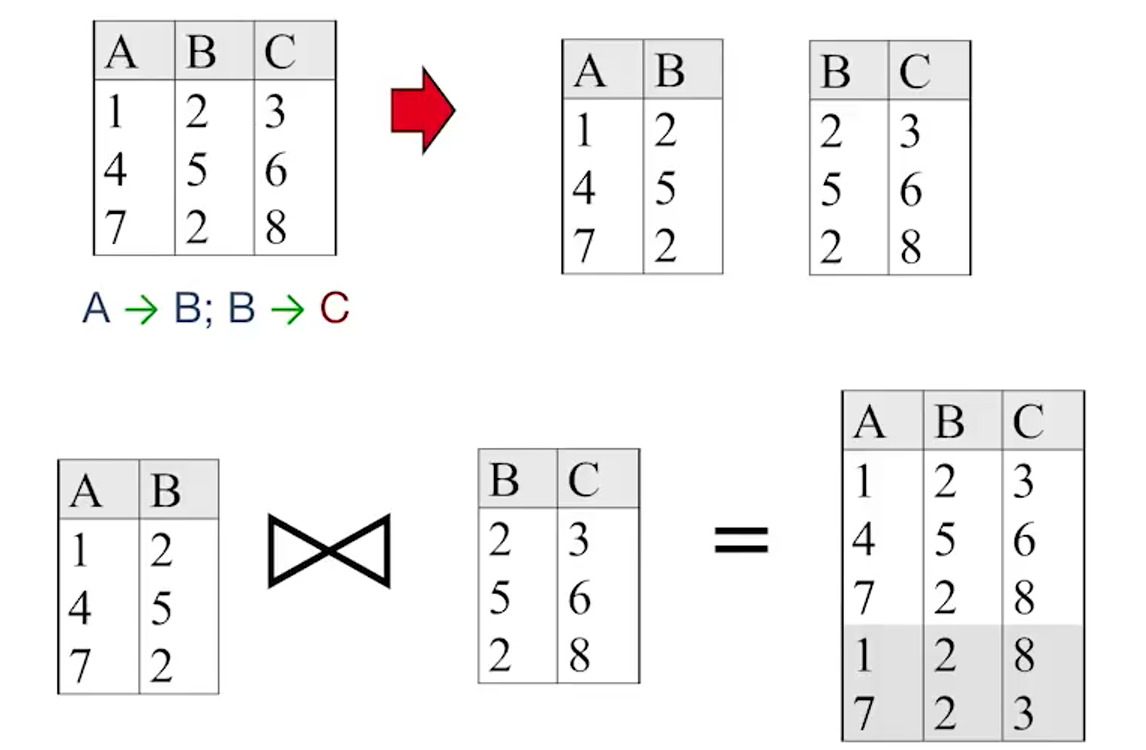

Problems with Decompositions
- can loss info and unable to reconstruct the original data
- do not loss data actually, in fact, we gain some dirty data
- Dependency check may require joins
- some queries may be more expensive, since join is required
Lossless Join Decompositions

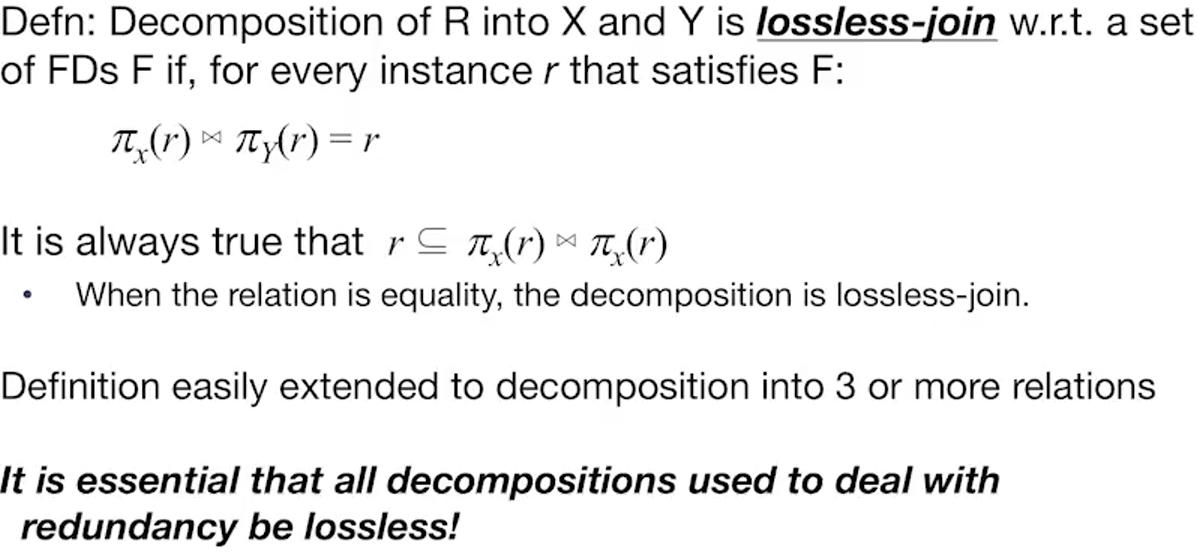

定义

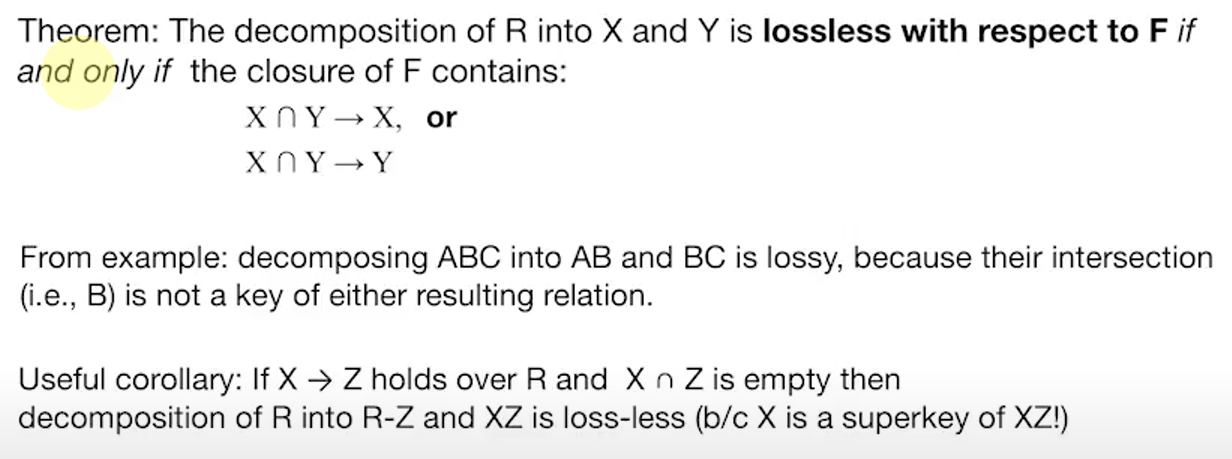

定理
Dependency Preservation and BCNF Decomposition
Def: Projection of set of FDs F:

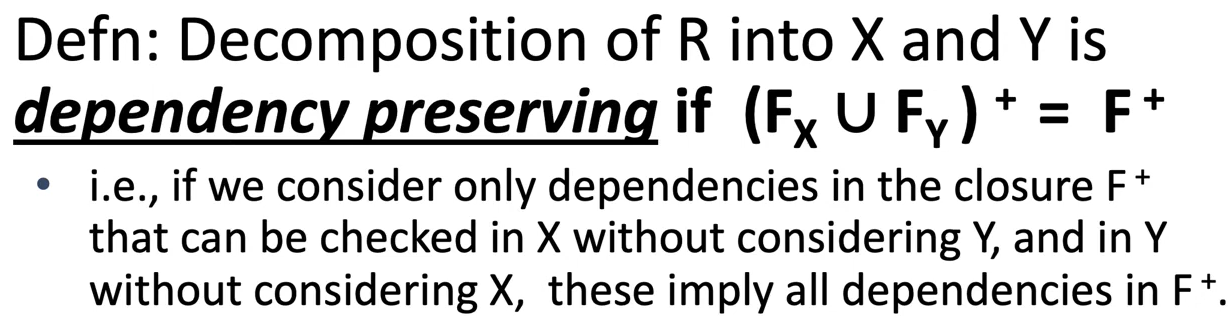

Def: Dependency Preserving Decomposition

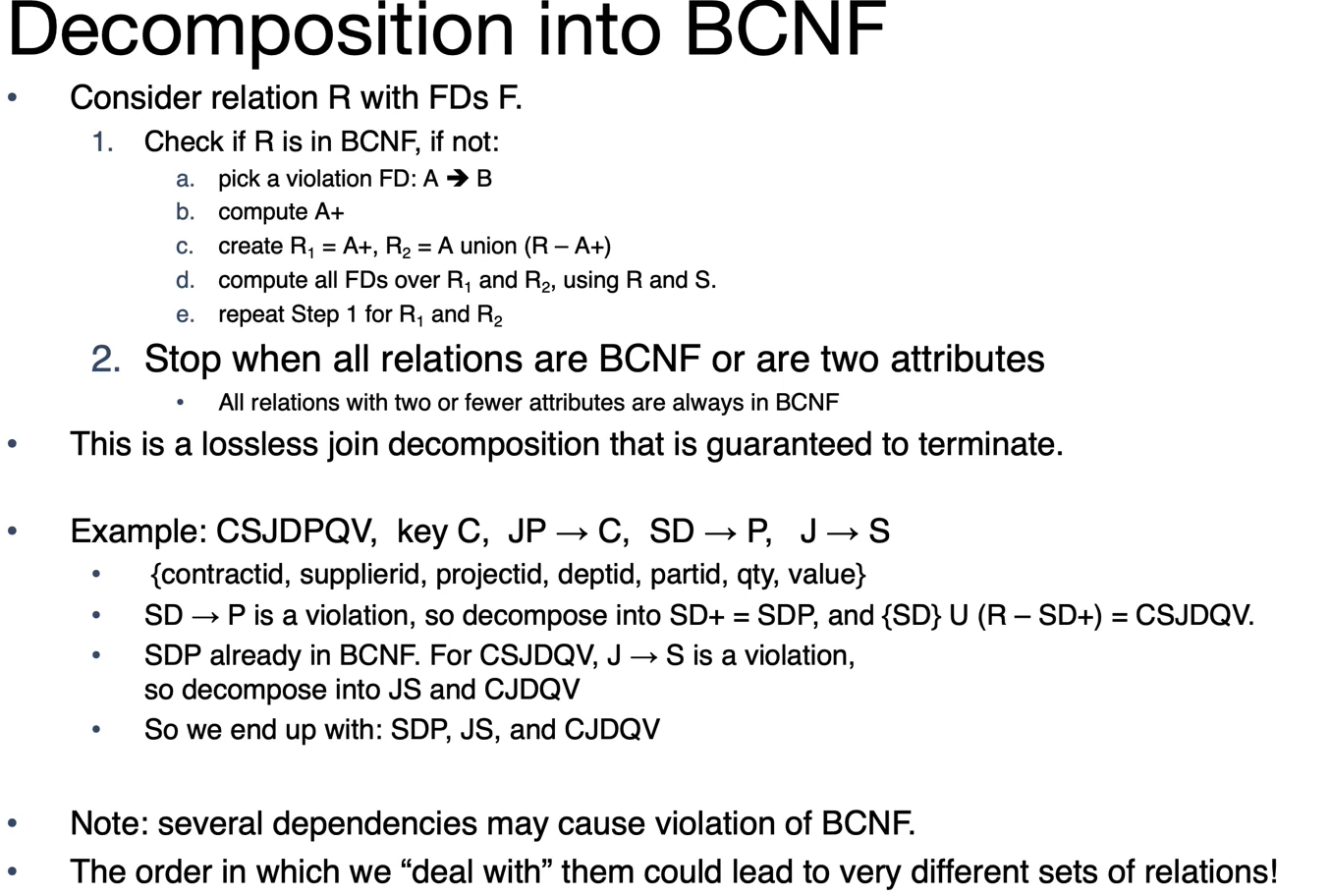

BCNF Decomposition
没有听懂

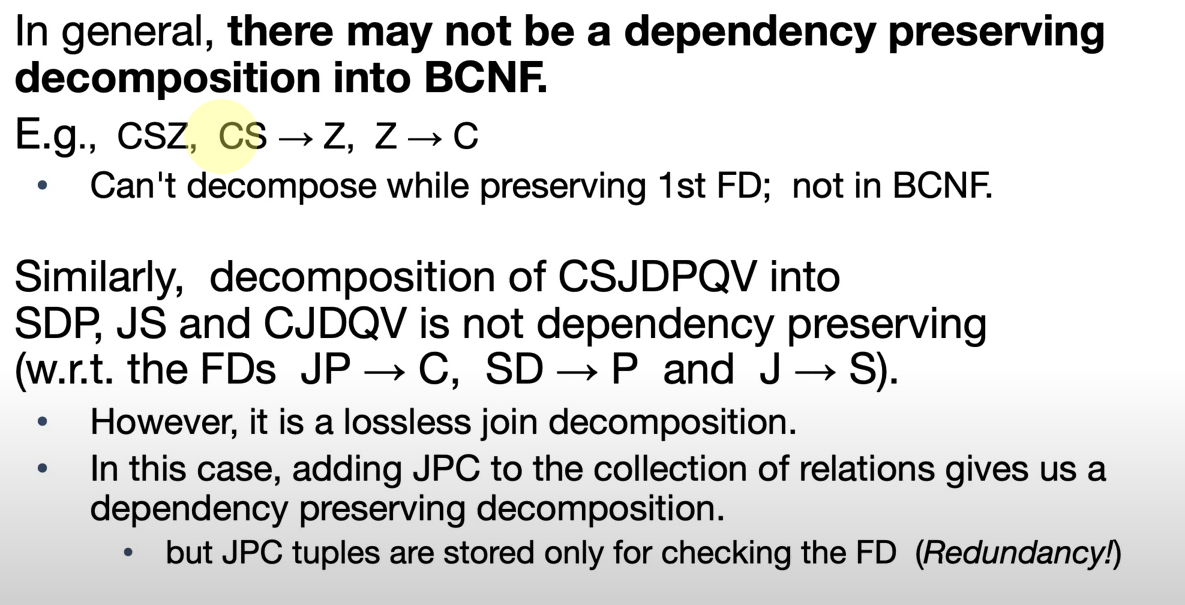

但是dependency没有保留
所以BCNF可以lossless，但是不一定保留所有的dependency
