CS186-L15: DB Design: Entity-Relationship Models

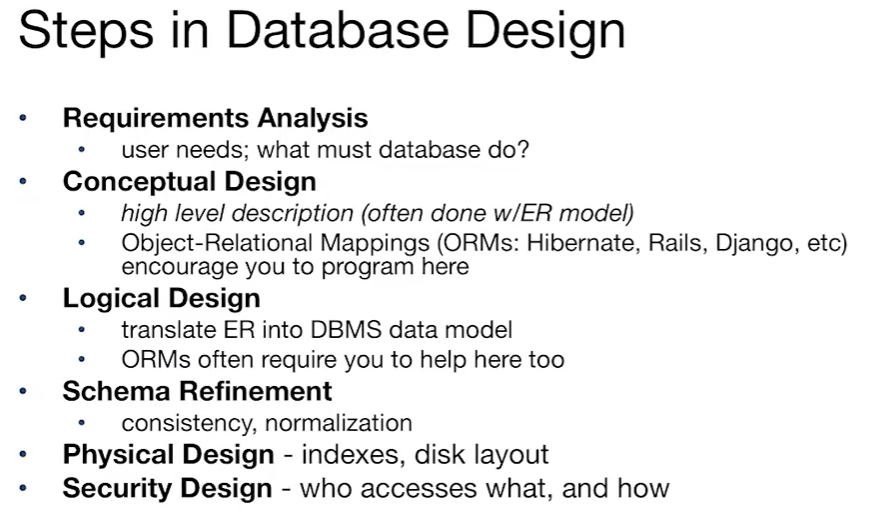

Overview

how to design a database instead of DBMS! 🤔

this class mainly focuses on the conceptual design

Data Models and Relational Levels of Abstraction

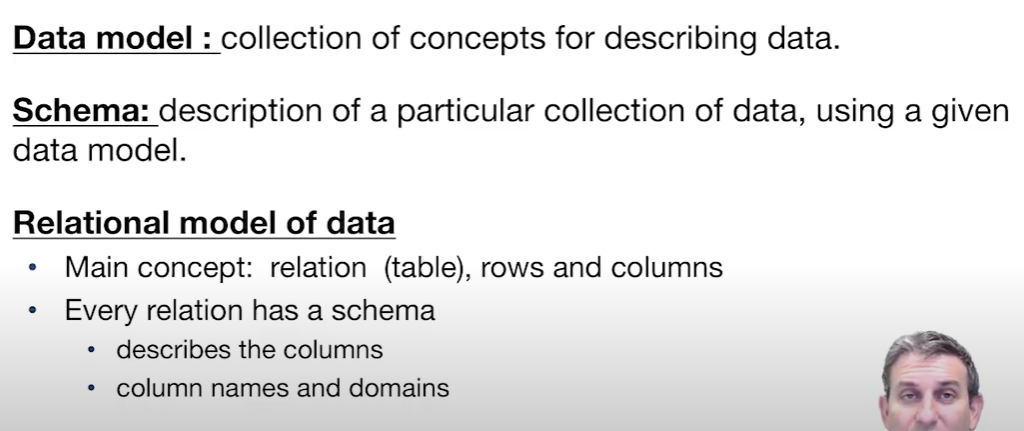

def in Data model

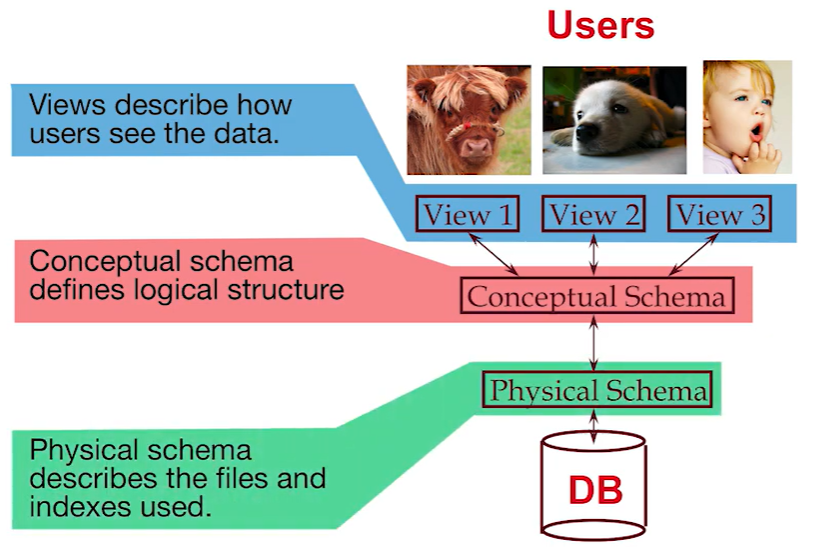

abstractions

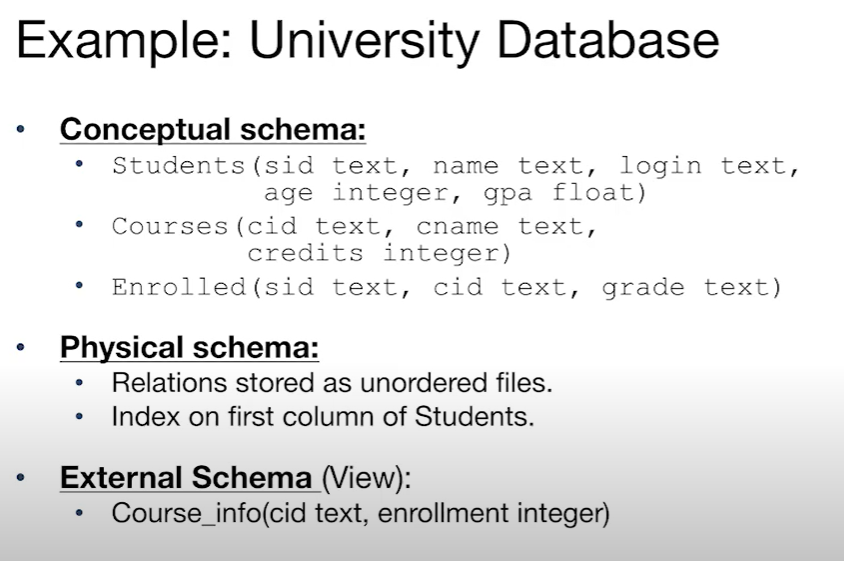

example

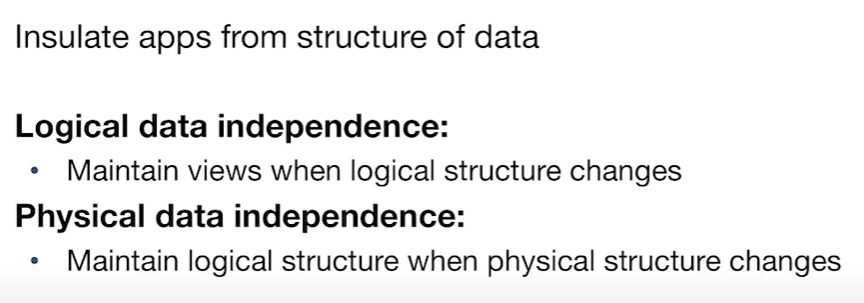

Data Independence

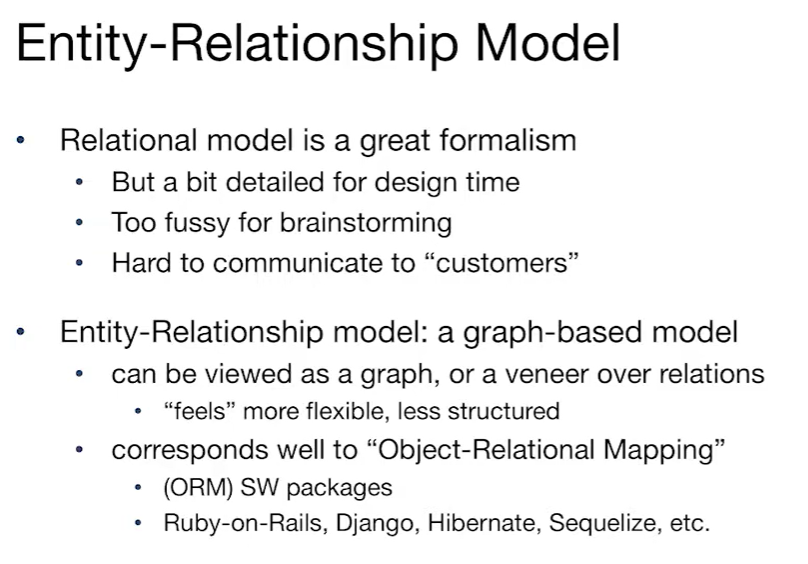

Entity-Relationship Model (ERM)

Def

• Entity: a real-world object that can be described and identified by a set of attributes
• Entity Set: a collection of similar entities
  • all entities in an entity set have the same attributes
  • each entity set has a key
  • each attribute has a domain

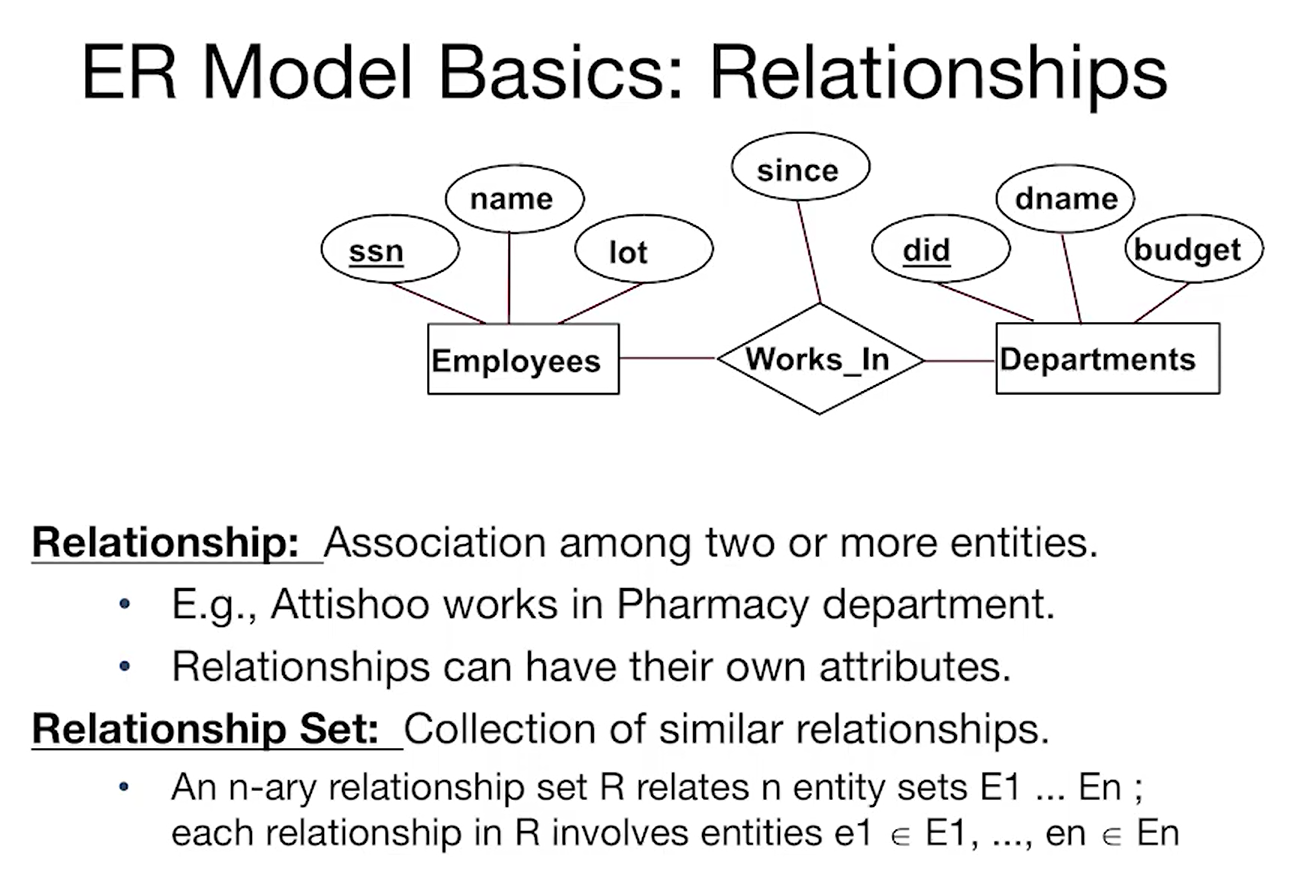

• Relationship: a connection between two entity sets

Key and Participation Constraints

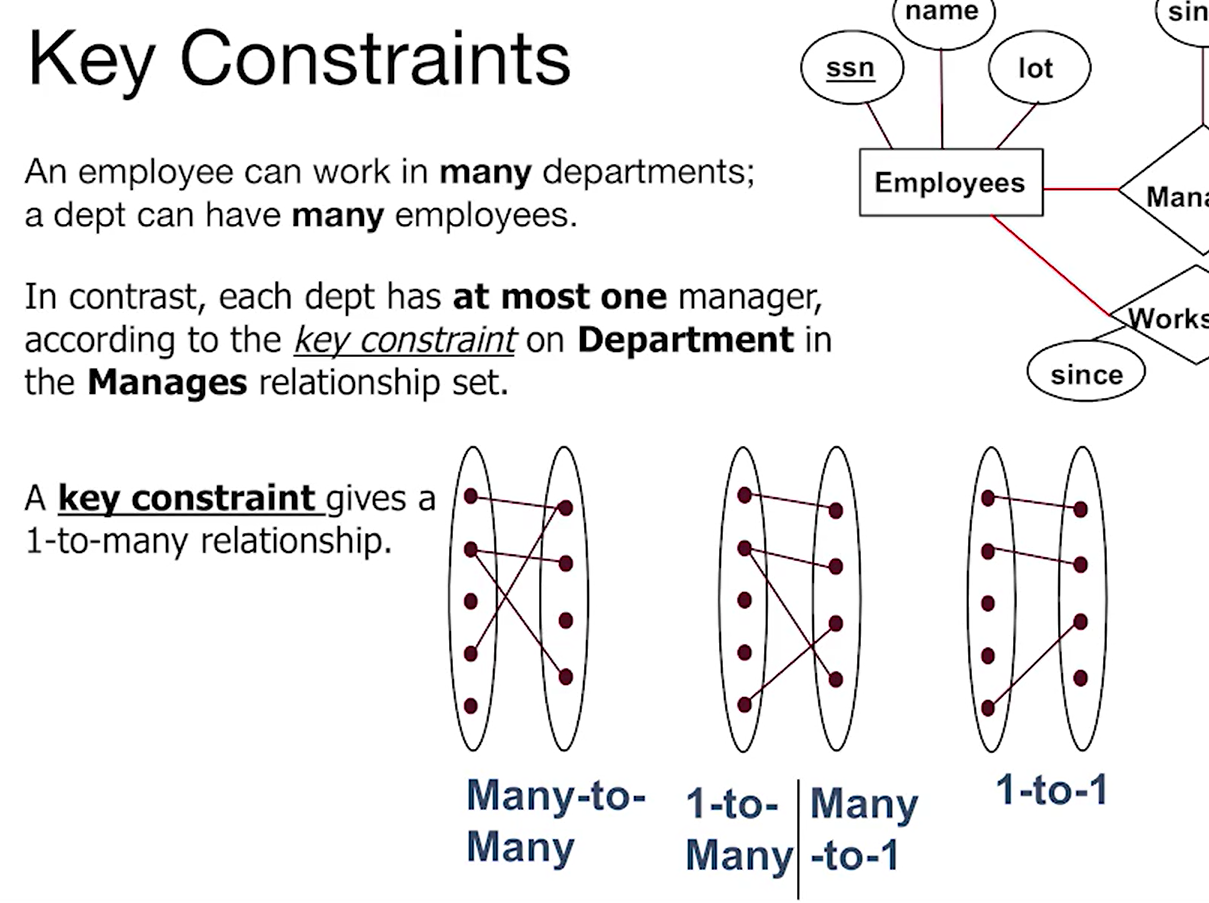

Key Constraints

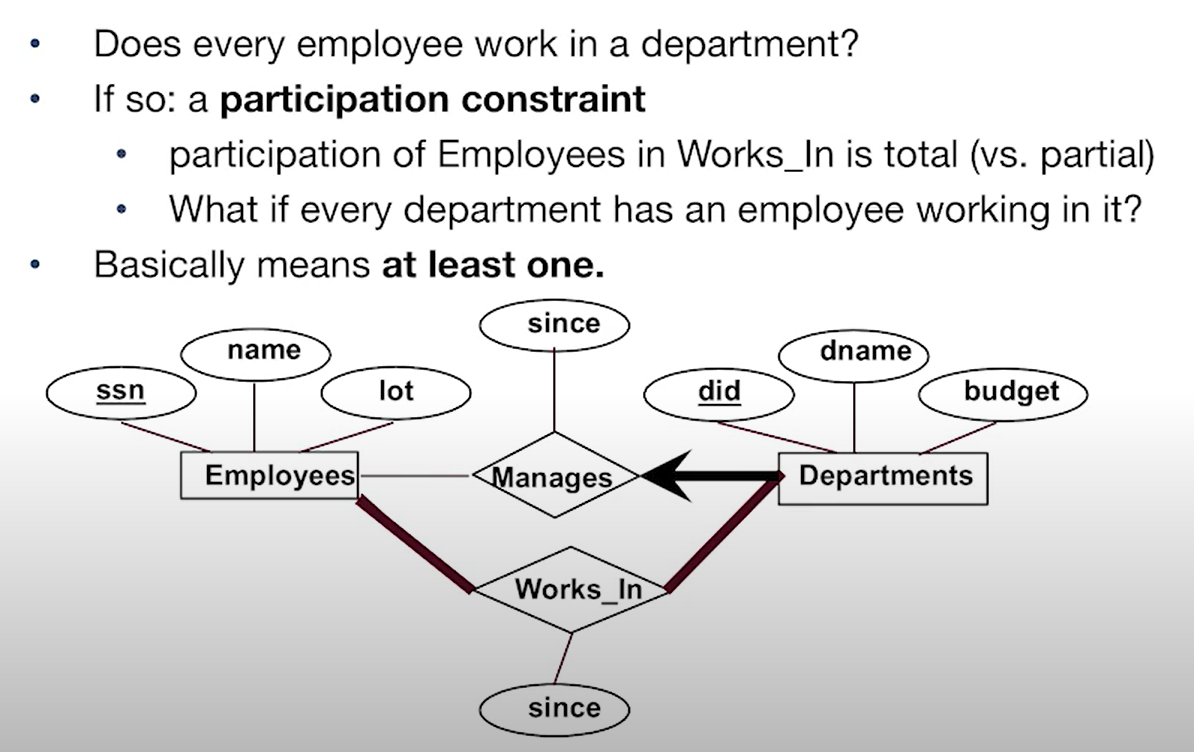

Participation Constraints

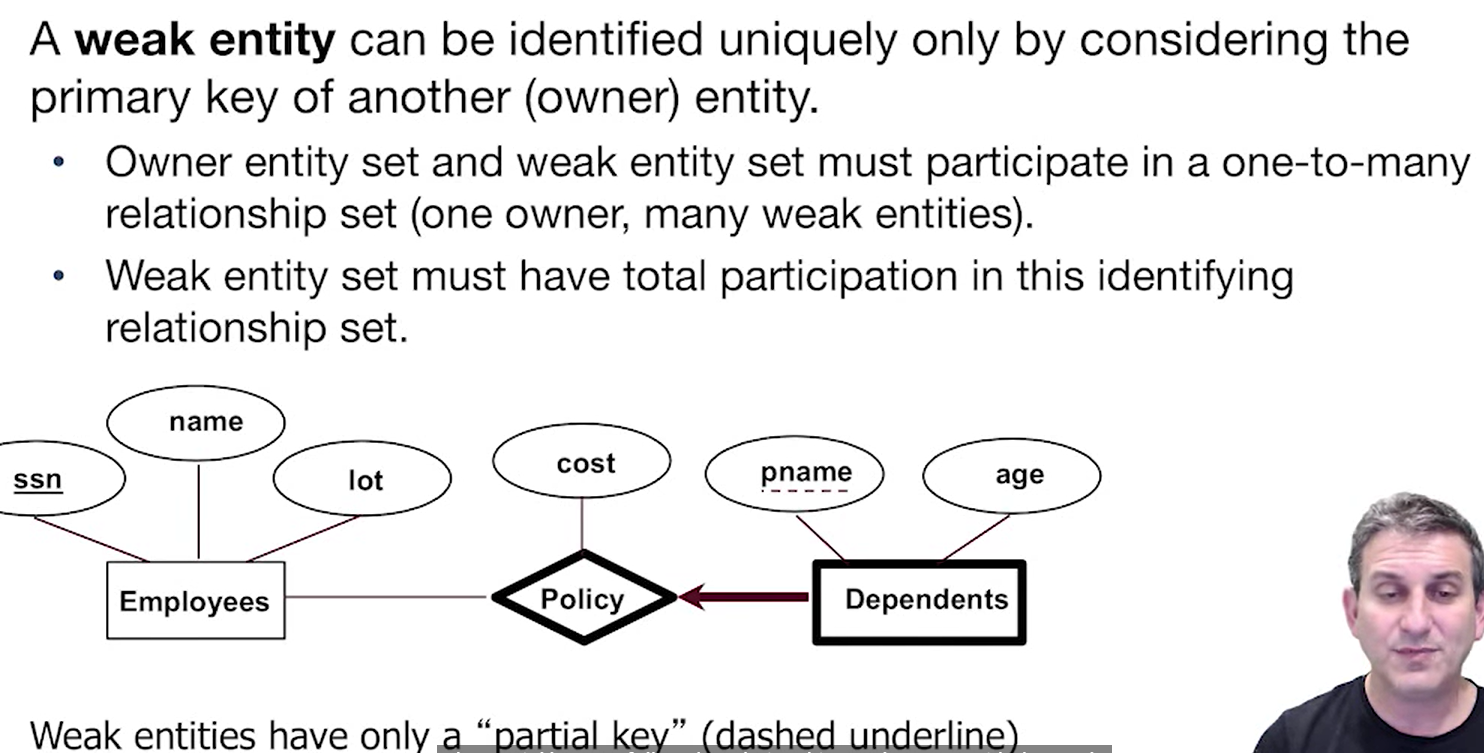

Weak Entity

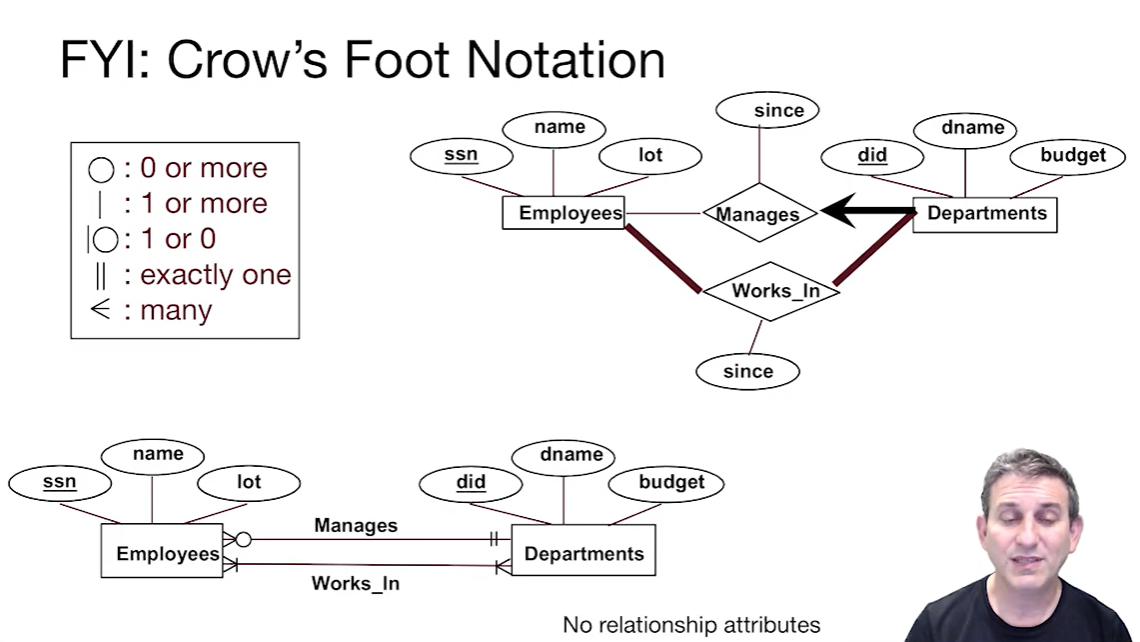

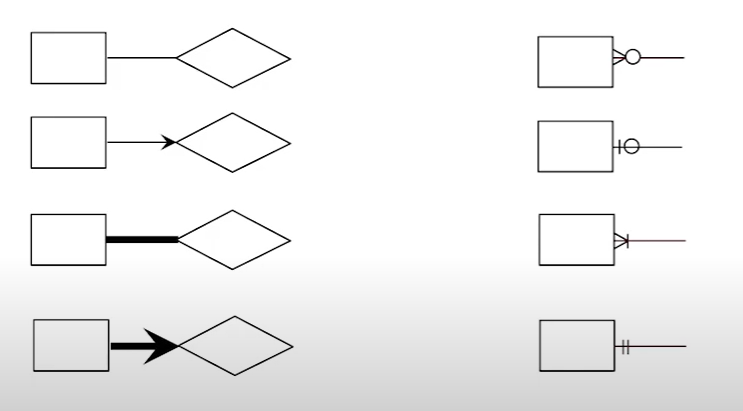

Alternative Notation and Terminology

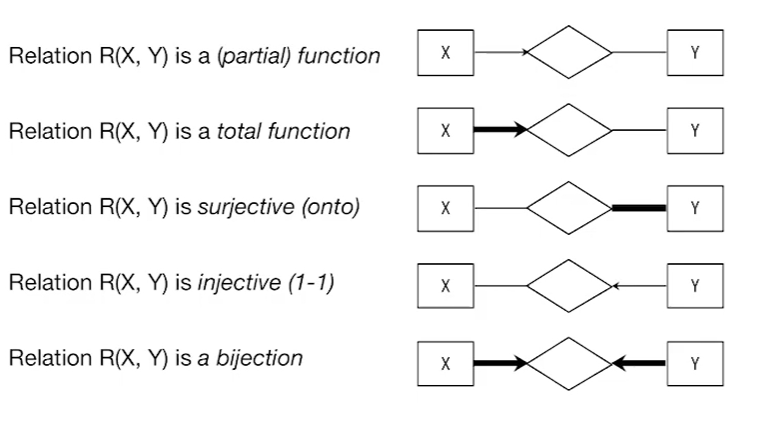

decoder graph 😅 math notation 😅

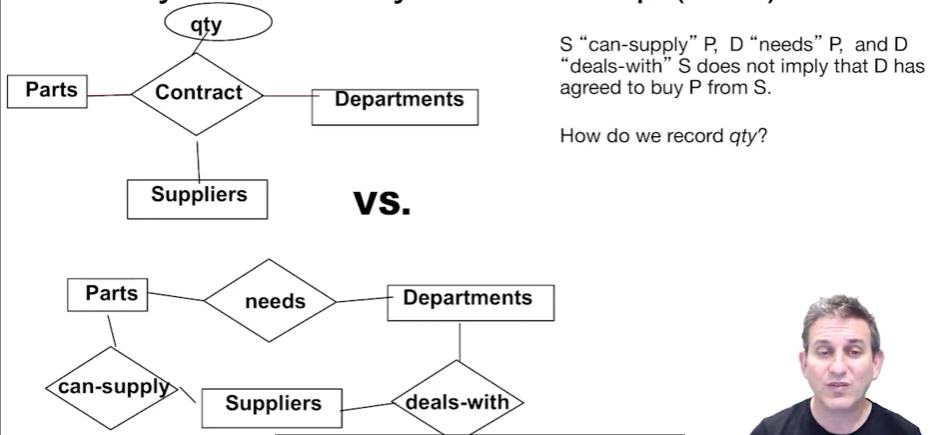

Binary vs Ternary Relationships

上面的更加紧密并且可以记录qty

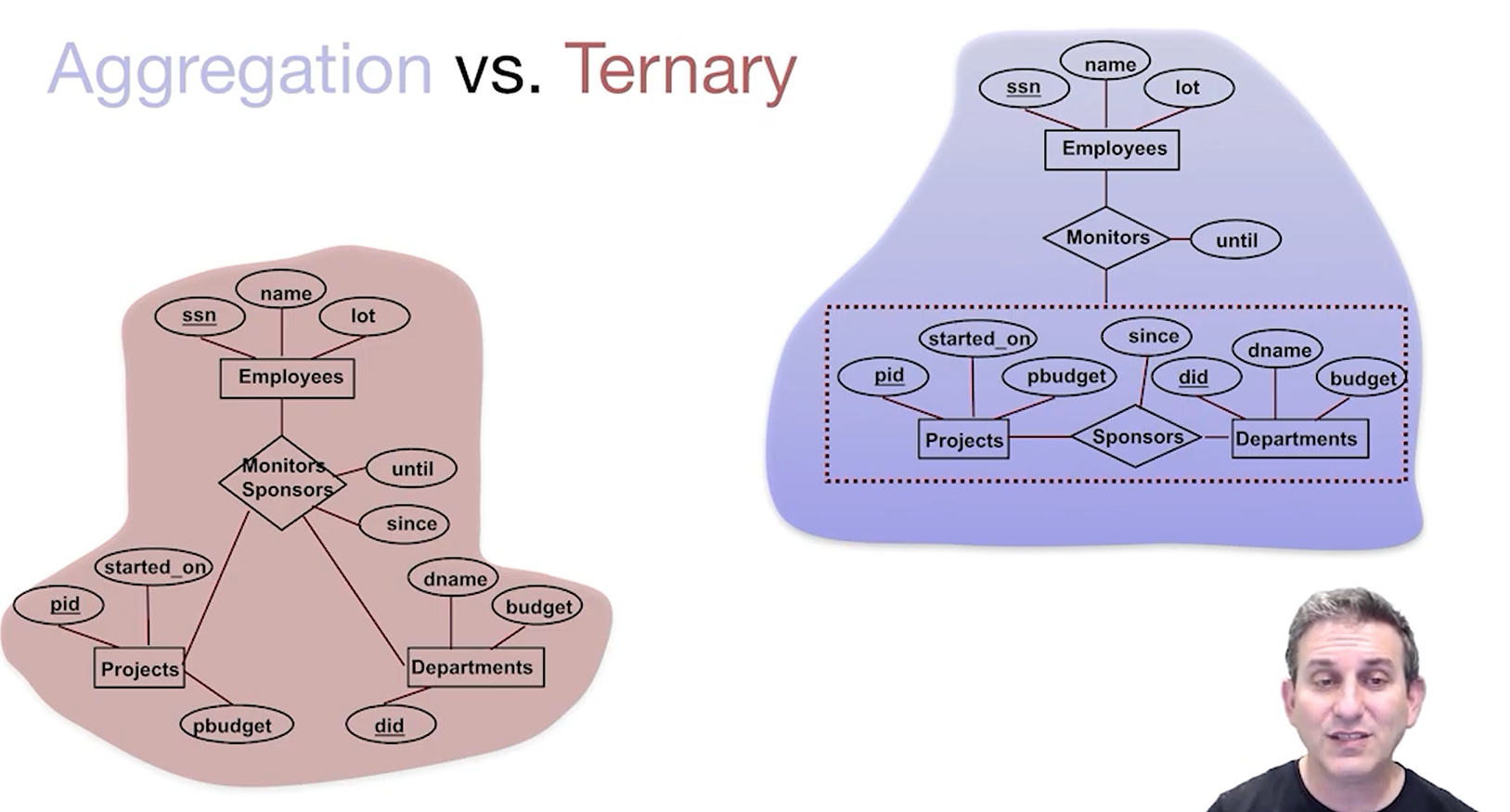

Aggregation and Ternary Relationships

Entities vs Attributes

Remember:

• attributes can not have nested attributes (atomic attributes only), if you want to represent nested attributes, use entities instead 🤔
• entity or attribute? depends on the context!

Entities vs Relationships

必要时拆出来新的实体来构建新的关系

Converting ER to Relational

• Entity Set: table
• many-to-many Relationship Set:
  • keys for participating entities, forming a superkey for the relation
  • all other attributes
• Key Constraints: think carefully about the uniqueness of the primary key!

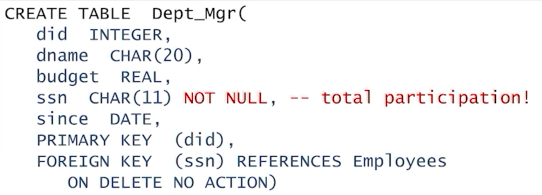

• Participation Constraints: usually using NOT NULL
  •

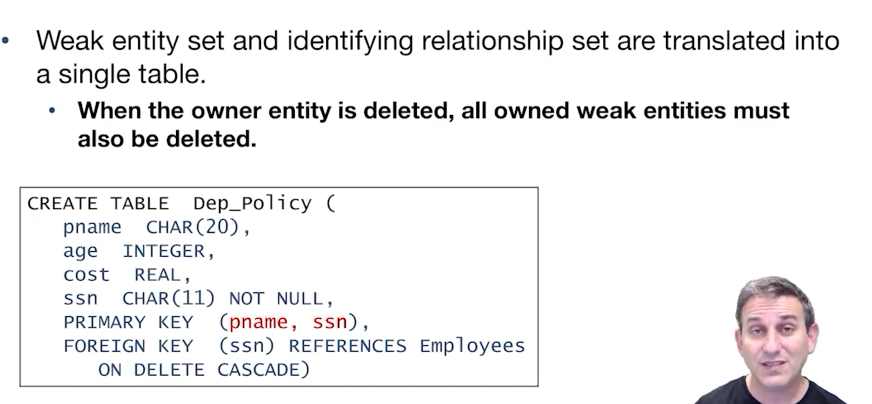

• Weak Entity Set:
  •
