CS186-L10: Iterators & Joins

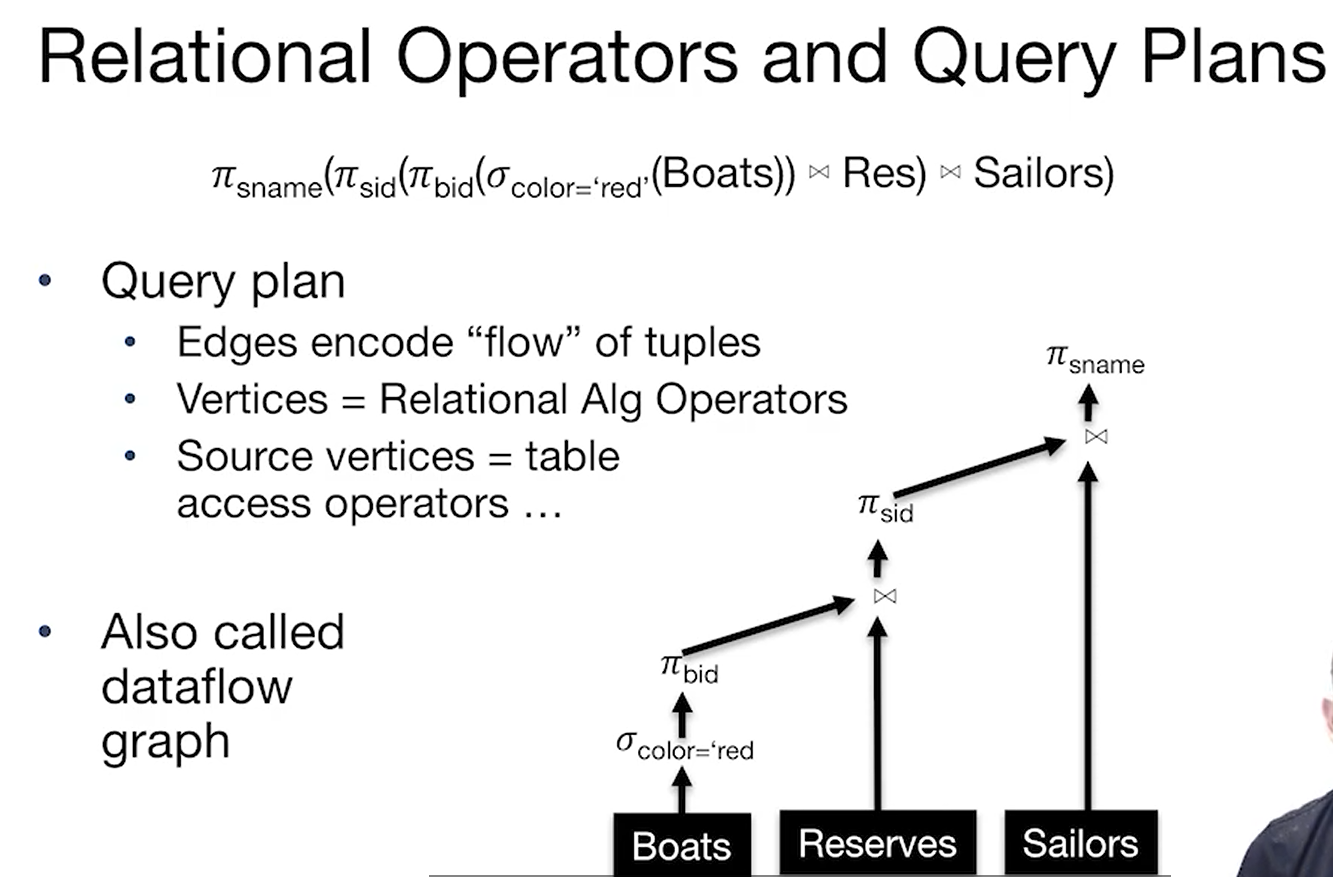

Intro

relational operator: tuples(in other way, relations) in, tuples out

1
2
3
4
5
6
7

abstract class Iterator {
    // set up the children and the dataflow graph
    void setup(List<Iterator> inputs);
    void init(args); // state
    tuple next(); // returns the next tuple
    void close();
}

presudo code

select

on the fly 🤔

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15

    init() {
        child.init();
        pred = predicate;
        current = null;
    }

    next() {
        while (current != EOF && !pred(current)) {
            current = child.next();
        }
    }

    close() {
        child.close();
    }

heap scan

want to find out the empty record id

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22

    init(relation) {
        heap = open heap file for the relation;
        cur_page = heap.first_page();
        cur_slot = cur_page.first_slot();
    }

    next() {
        if (cur_page == null) return EOF;
        current = [cur_page, cur_slot]; // return the id
        // advance to the next slot
        cur_slot = cur_page.next_slot(cur_slot);
        if (cur_slot == null) {
            // advance to the next page, first slot
            cur_page = heap.next_page(cur_page);
            if (cur_page != null) cur_slot = cur_page.first_slot();
        }
        return current;
    }

    close() {
        heap.close();
    }

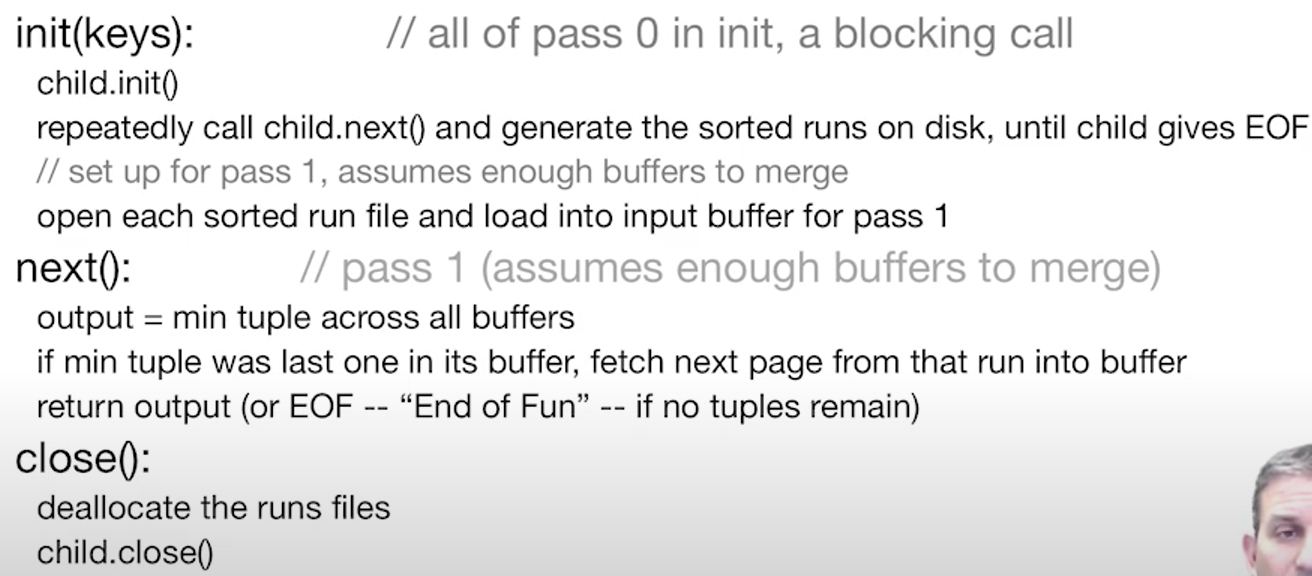

sort (two pass)

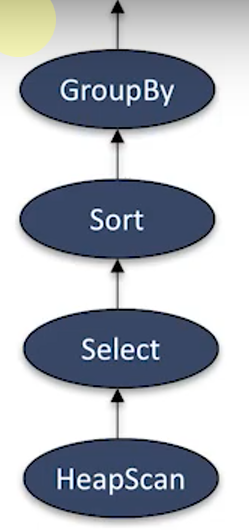

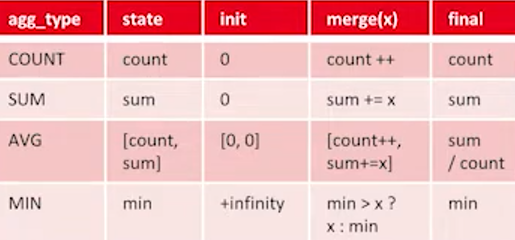

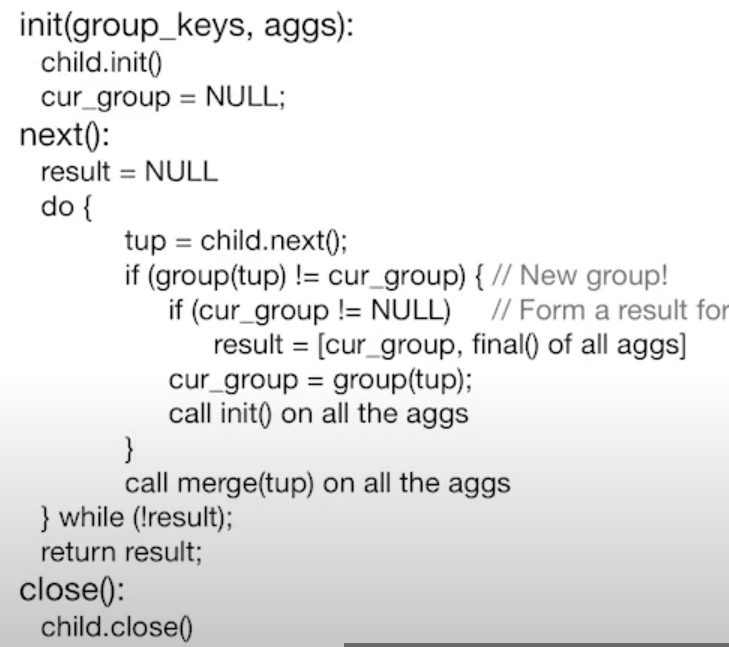

Group By

assume that already sorted, and notice that only contain ONE tuple at a time ===> memory efficient

A single thread

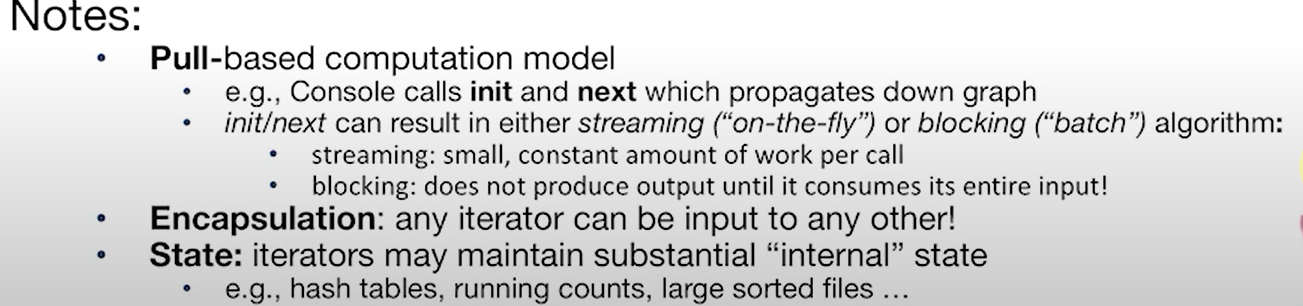

side note:

• how does the block operator work with the streaming operator
• Sort use disk internally
• we do not store the operator output in disk ===> stream through the call stack

Join operators

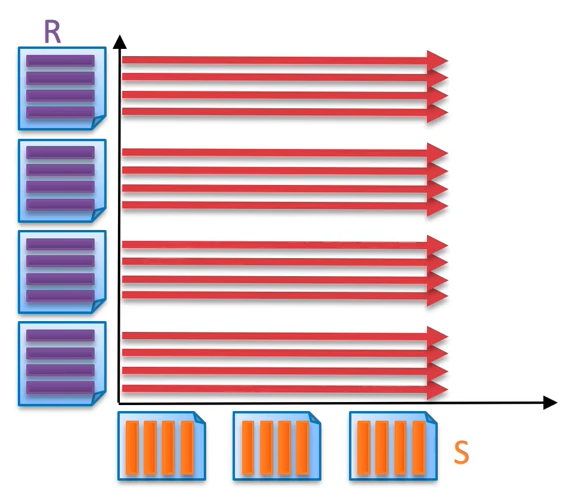

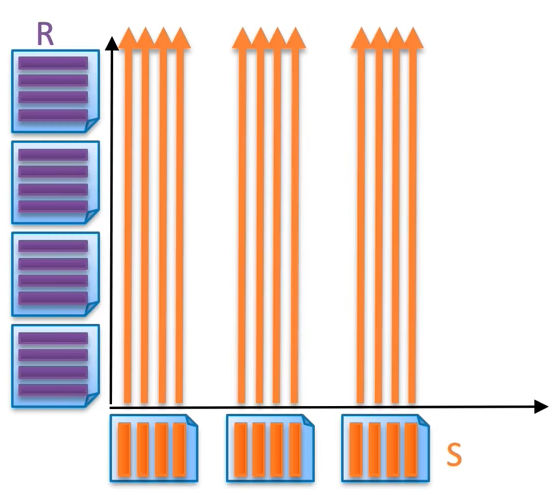

Simple Nested Loops Join

see the course note, not that hard to understand $[R] + [R]|S|$ $[S] + [S]|R|$ 顺序很重要！

Pages Nested Loops Join

$[R]+[R][S]$

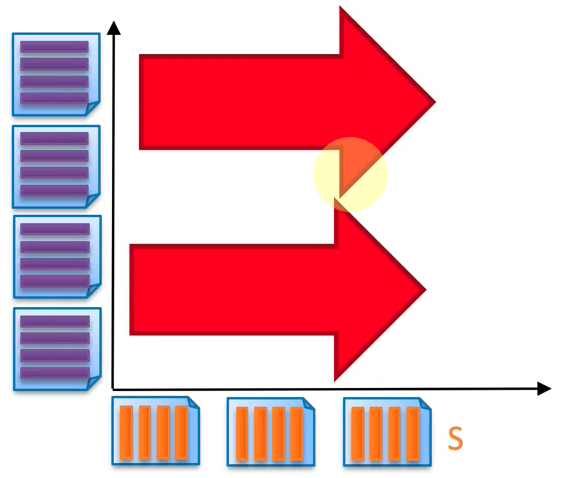

Chunk Nested Loops Join

$[R] + \lceil(\frac{[R]}{B-2})\rceil[S]$

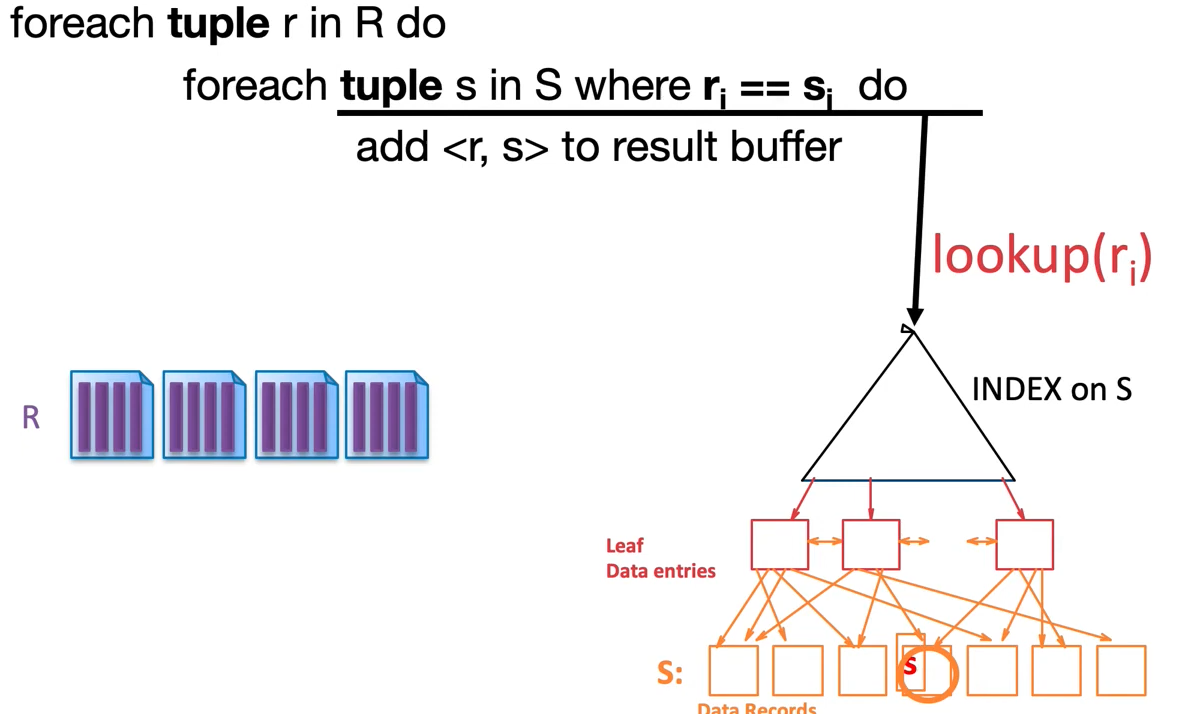

Index Nested Loops Join

$[R] + |R|*(cost\ of\ index\ lookup)$

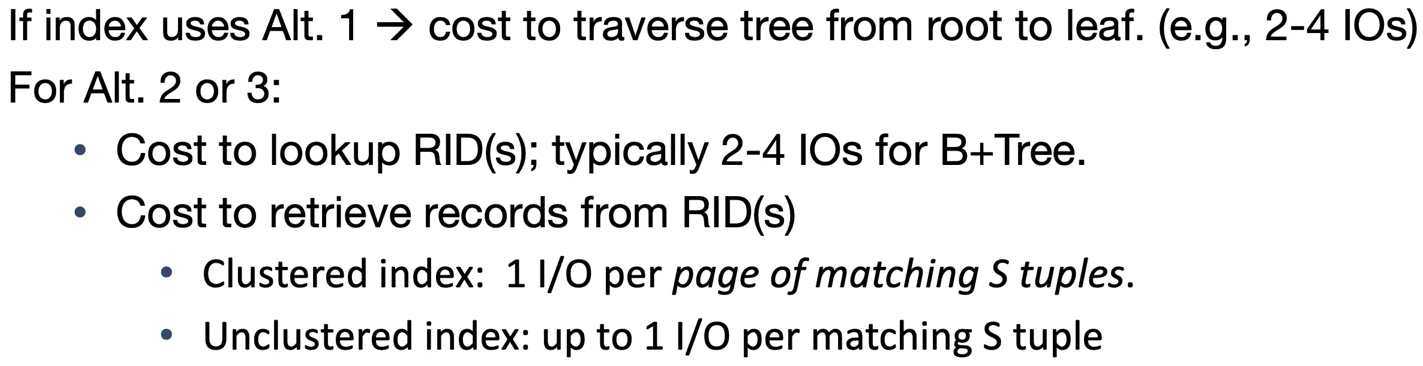

cost of index lookup

• unclustered: (# of matching s tuples for each r tuple) $\times$ (access cost of per s tuple)
• clustered: (# of matching s tuples for each r pages) $\times$ (access cost of per s page)

Sort-Merge Join

依次滚两个纸带，对齐，归并。 $Sort(R) + Sort(S) + ([R]+[S])$

worst $|R|[S]$ , too many dups

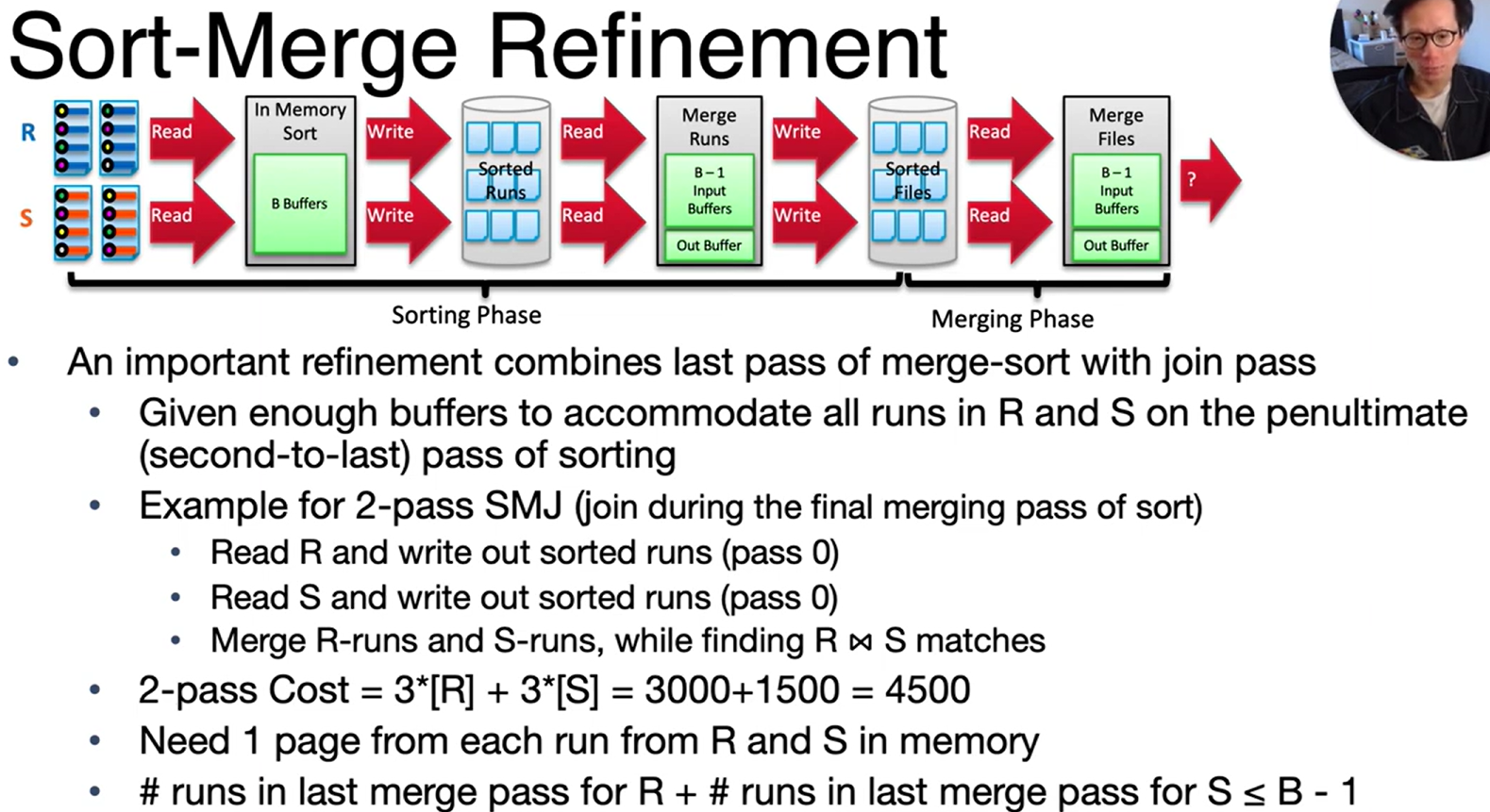

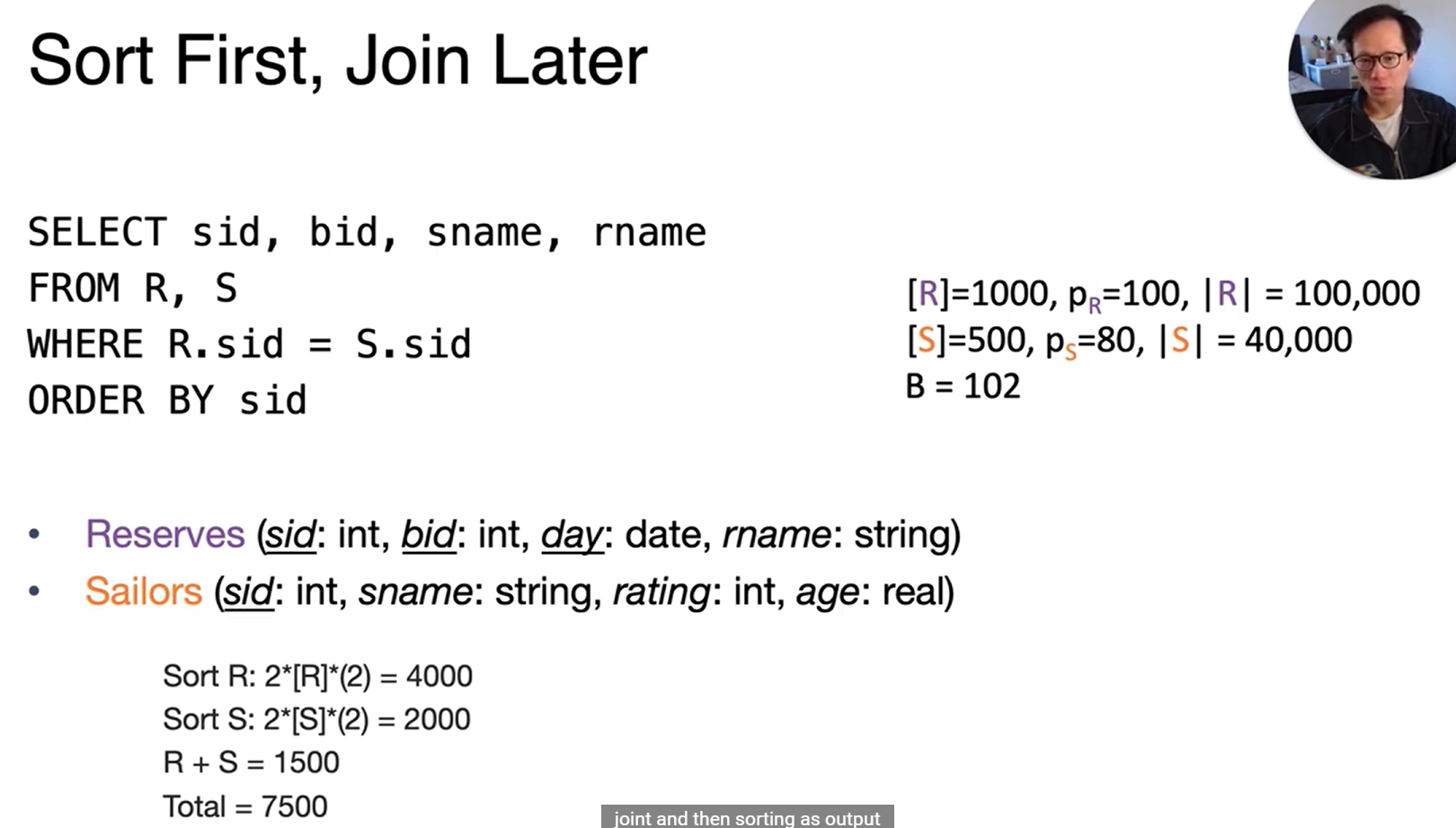

a refinement of the sort-merge join

note that if join and sort, will cost around 9500 > 7500

so sort and join can allow us to get the ORDER BY free 🤔 here comes the refinement 重点在于对sorting最后一次merge的优化，因为可以 track R和S的最小值，于是开始join的步骤即可

Naive Hash Join

• Requires equality predicate: equi-join and natural join
• assume that $R$ is small enough to fit in memory
• algorithm:
  • hash $R$ into hash table
  • scan $S$ (can be huge file) and probe $R$
• requires $R$ < (B-2)*hash_fill_factor

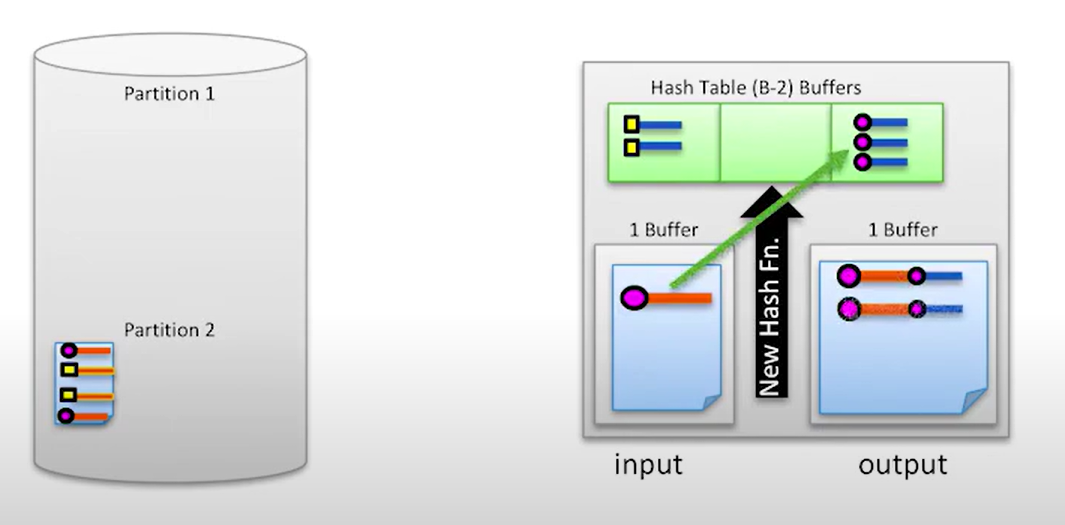

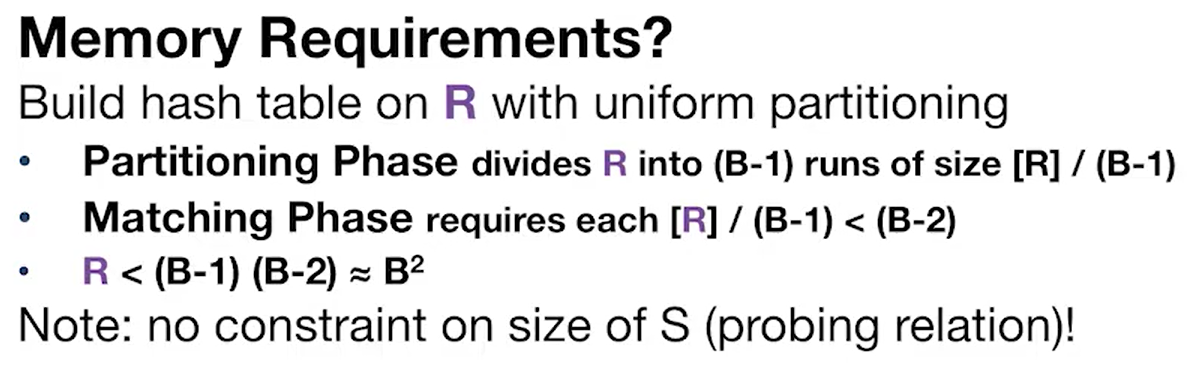

Grace Hash Join

• Requires equality predicate: equi-join and natural join
• algorithm:
  • partition tuples from $R$ and $S$
  • Build & Probe a separate hash table for each partition
    • assume that each partition is small enough to fit in memory
      • recurse if necessary

cost: $3([R]+[S])$

so it is a good choice for large $S$ and small $R$ Hybrid Hash Join is not included 🤔

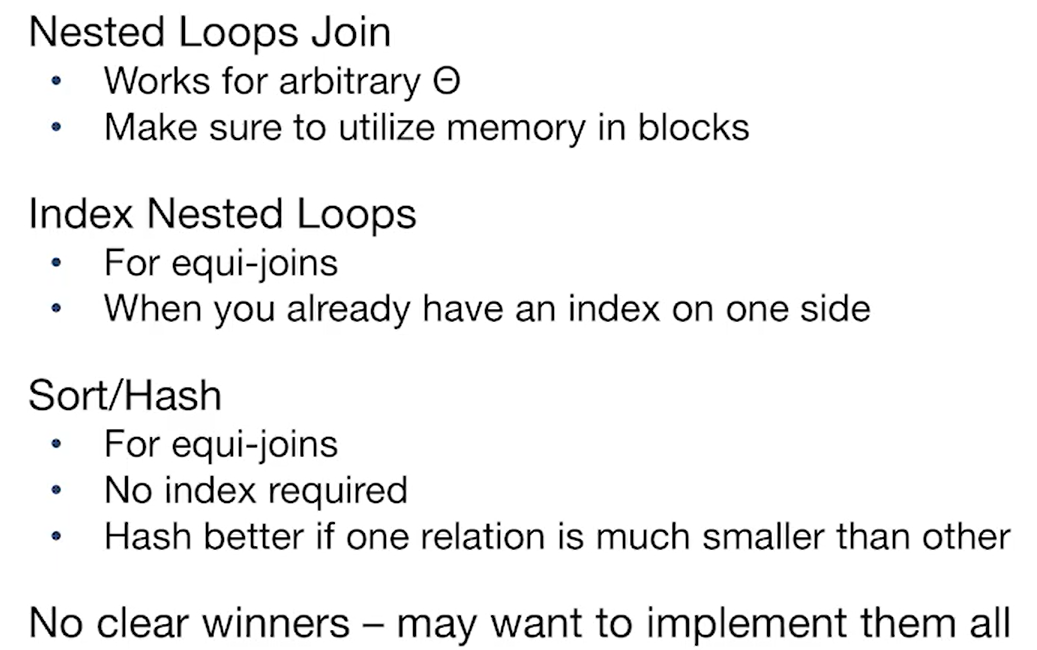

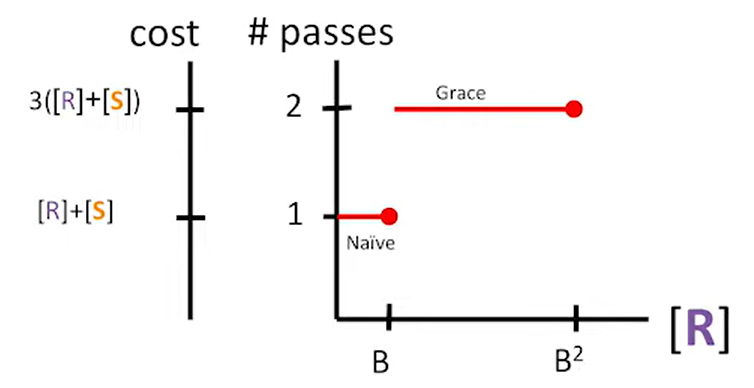

Summary
