pros and cons

Graph Problem so far

Punchline:

• DFS and BFS both traverse entire graphs, just in a different order (like preorder, inorder, postorder, and level order for trees).
• Solving graph problems is often a question of identifying the right traversal. Many traversals may work.
  • Example: DFS for topological sort. BFS for shortest paths.
  • Example: DFS or BFS about equally good for checking existence of path.

Dijkstra’s Algorithm

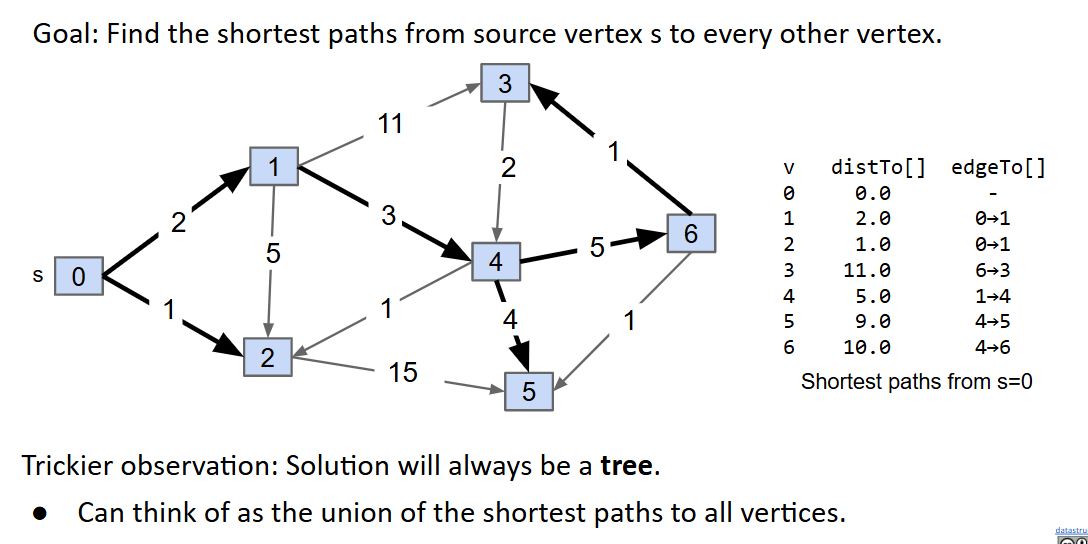

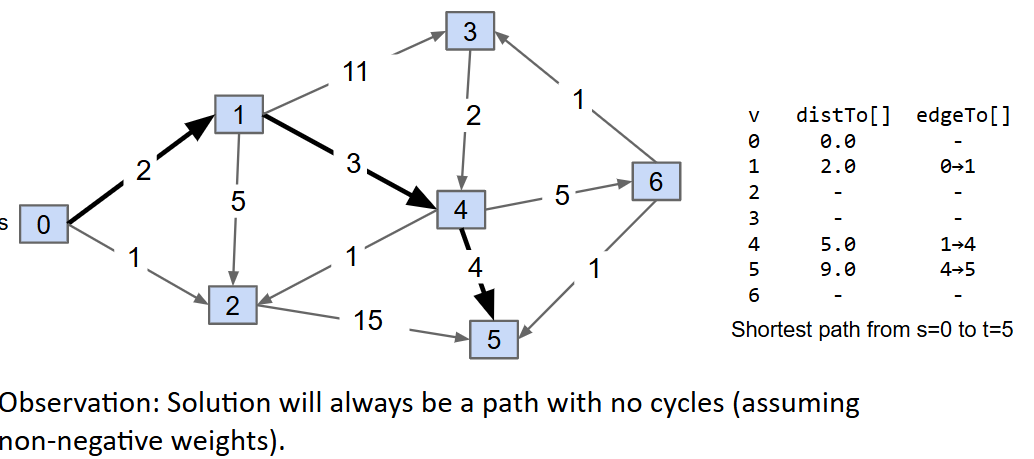

problem restatement: Find the shortest paths from source vertex s to some target vertex t. another problem restatement: Find the shortest path from source vertex s to all other vertices. 深层解释

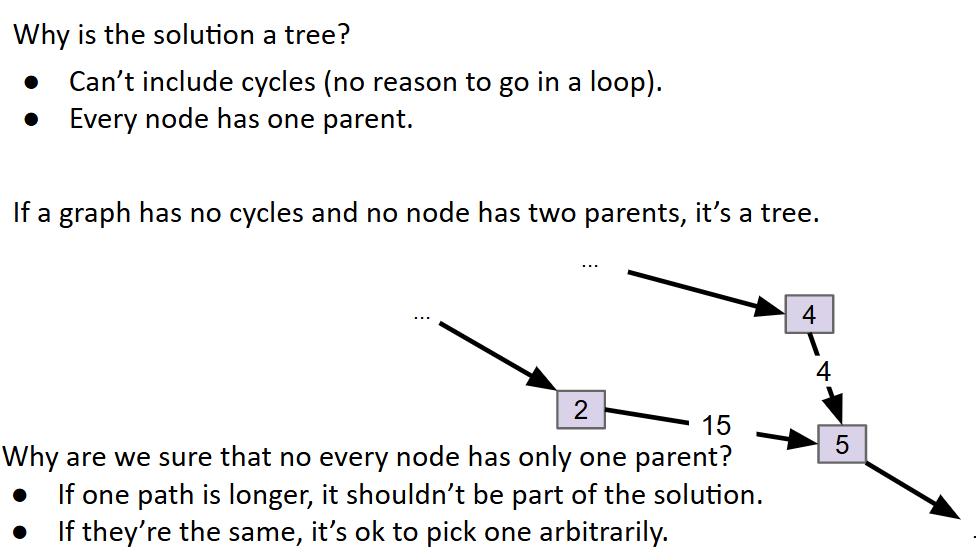

SPT（Shortest Path Tree） Edge Count

If G is a connected edge-weighted graph with V vertices and E edges, how many edges are in the Shortest Paths Tree of G? [assume every vertex is reachable]

Always V-1:

• For each vertex, there is exactly one input edge (except source).

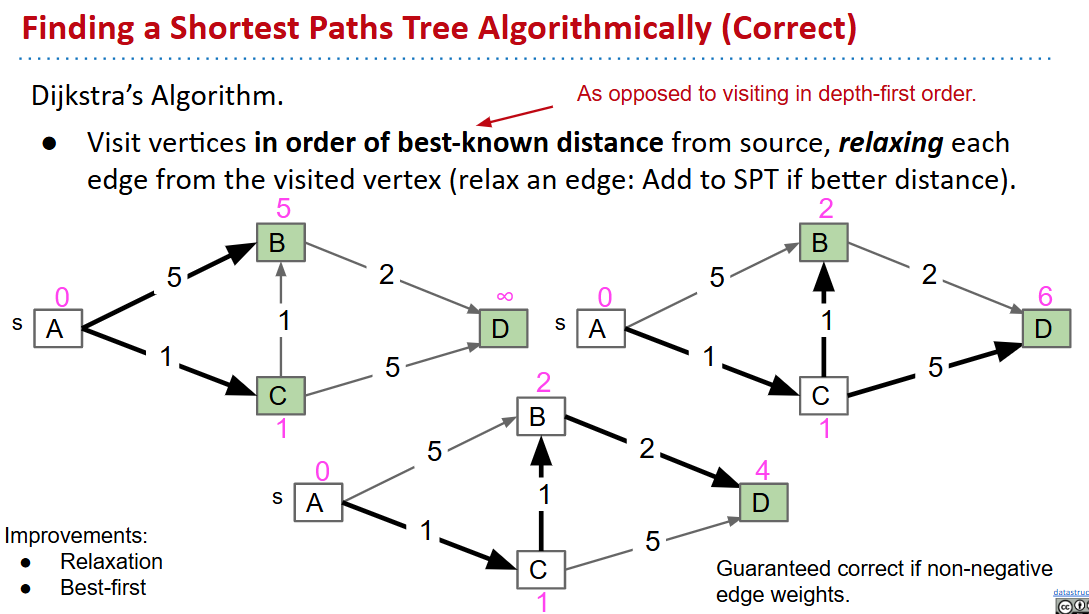

Insert all vertices into fringe PQ, storing vertices in order of distance from source.

Repeat: Remove (closest) vertex v from PQ, and relax all edges pointing from v.

Dijkstra’s Algorithm Demo Link.

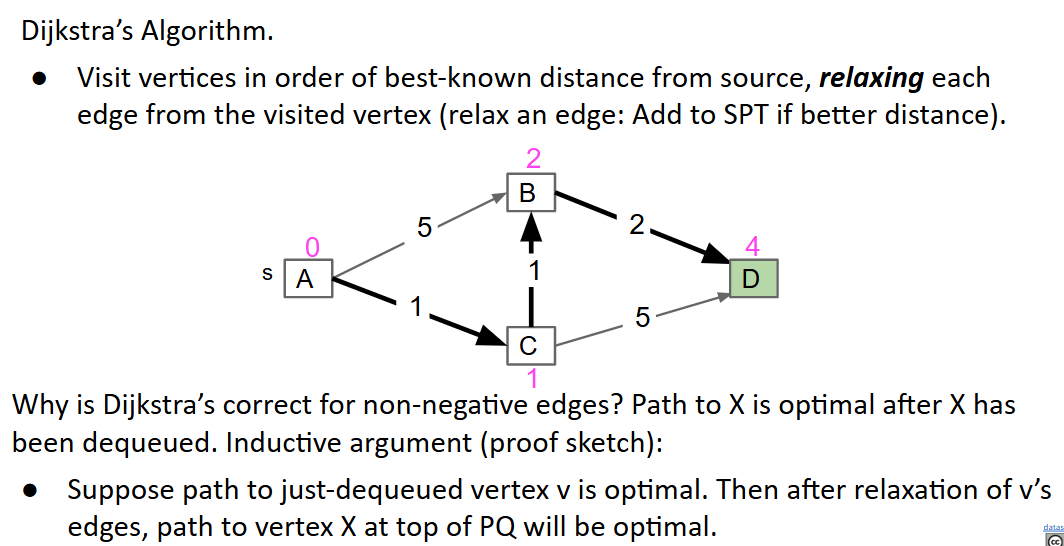

贪心思想证明

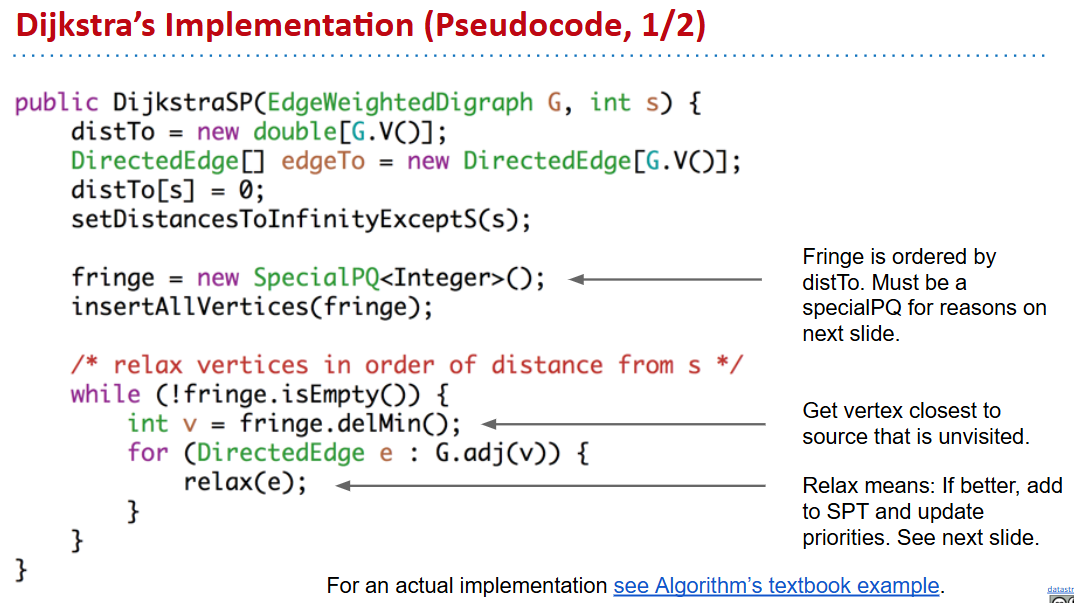

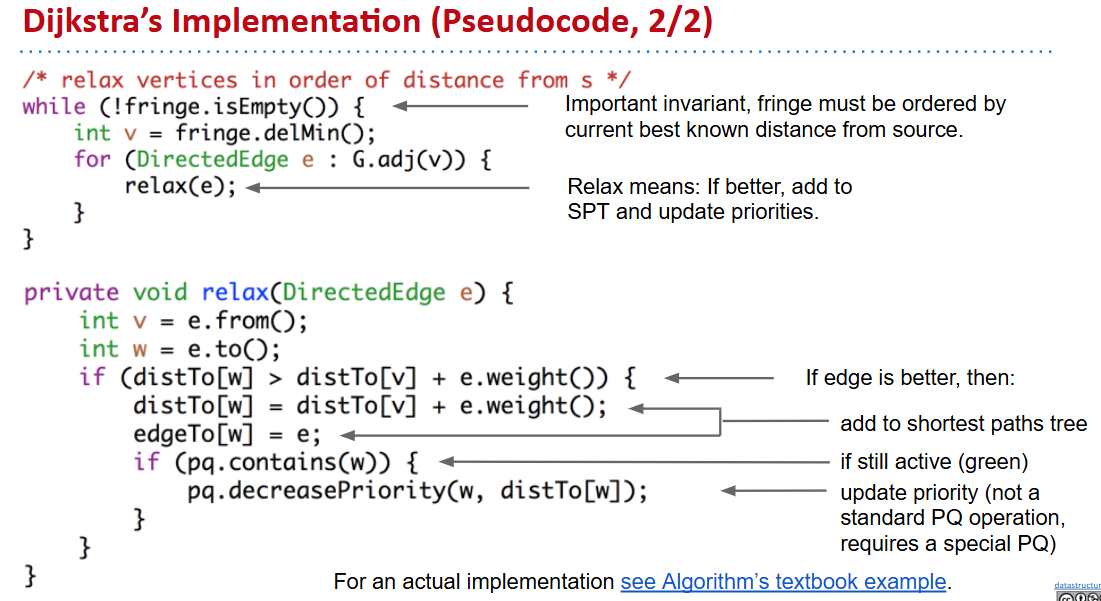

伪代码

http://algs4.cs.princeton.edu/44sp/DijkstraSP.java.html

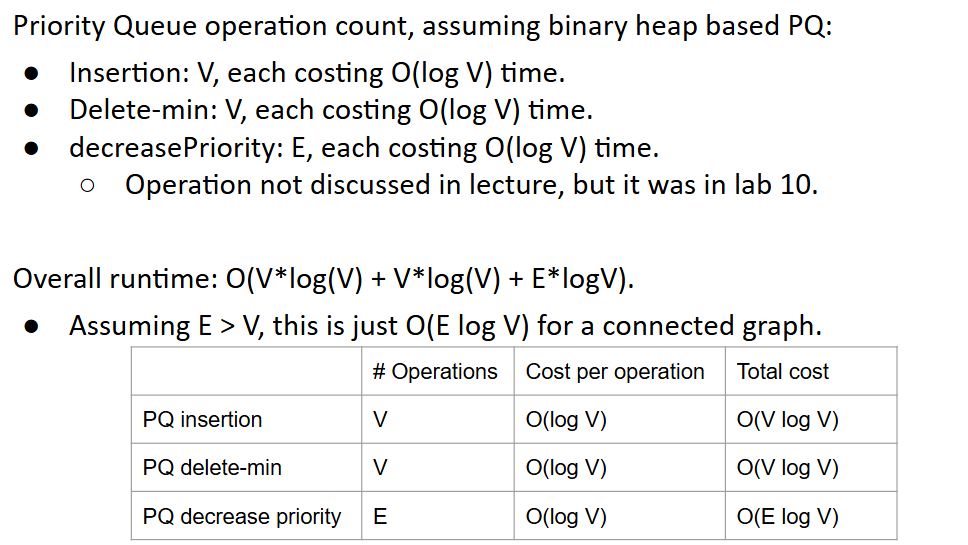

runtime analysis

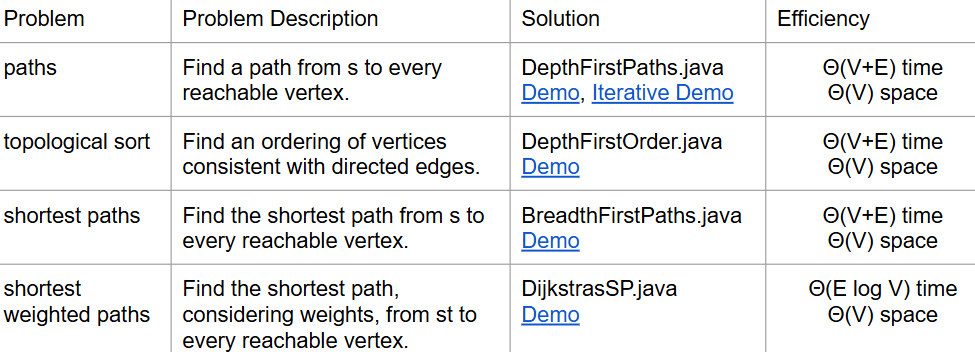

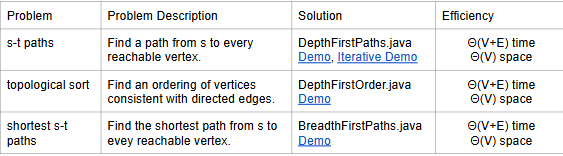

so far graph problems

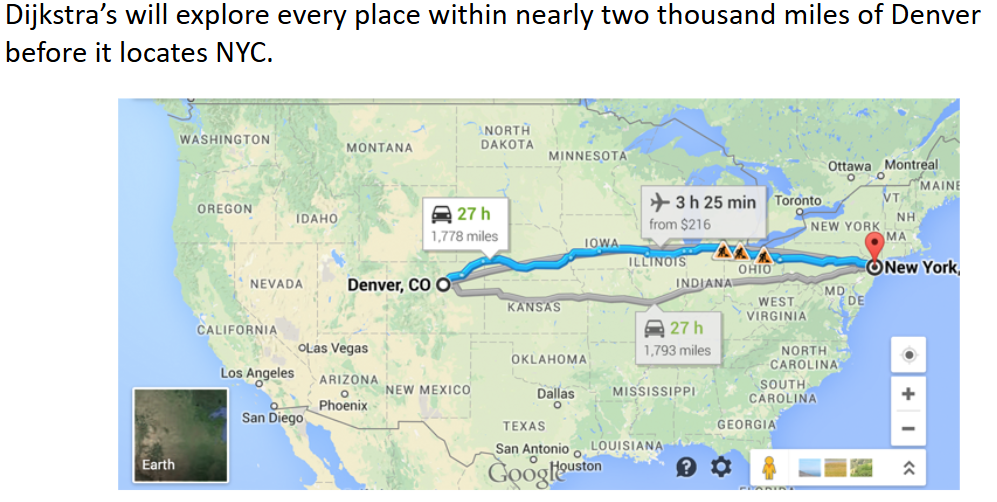

The Problem with Dijkstra’s

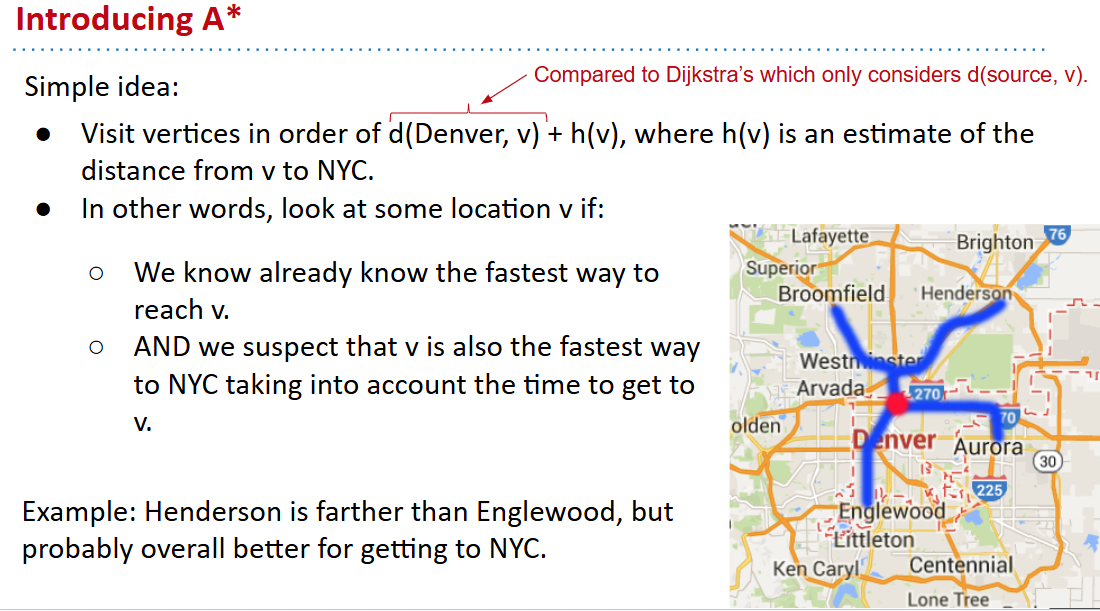

A* (CS188 Preview)

We have only a single target in mind, so we need a different algorithm. How can we do better?

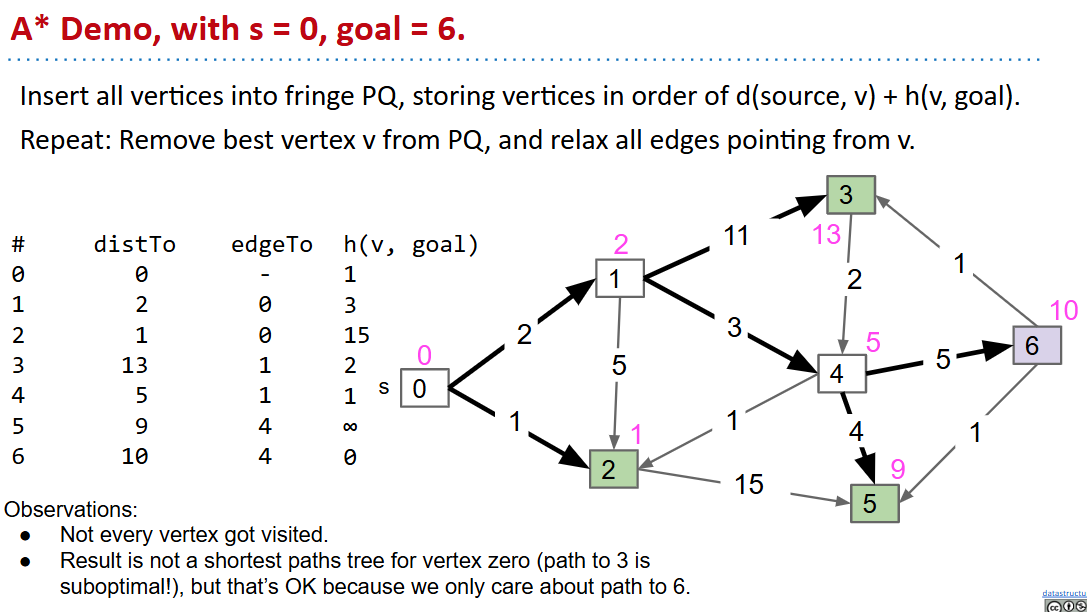

A* Demo Link

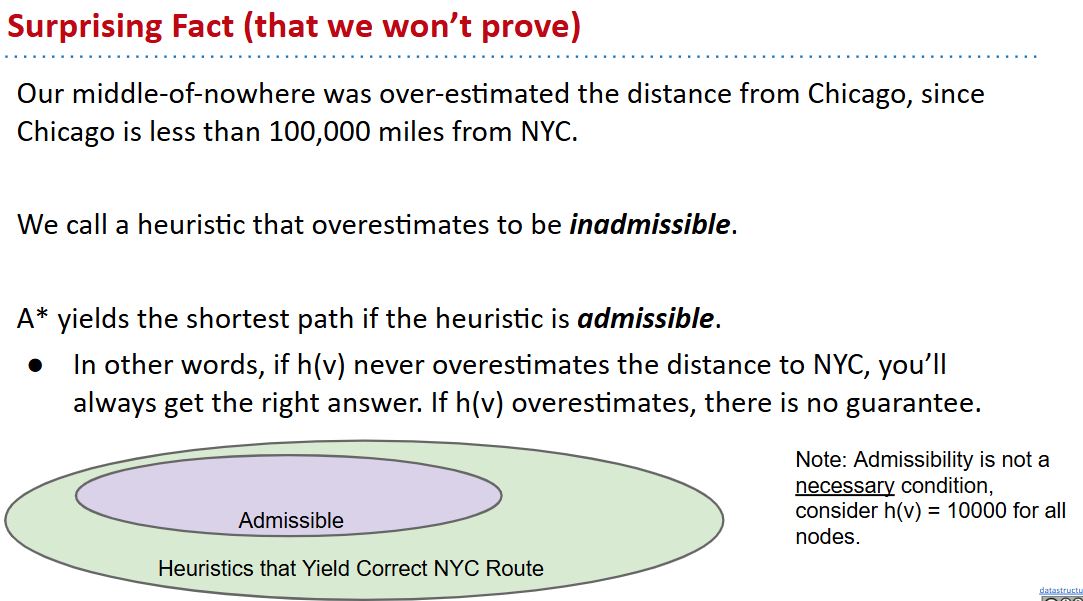

How do we get our estimate?

• Estimate is an arbitrary heuristic h(v).
• heuristic: “using experience to learn and improve”
• Doesn’t have to be perfect!

1
2
3
4

/** h(v) DOES NOT CHANGE as algorithm runs. */
public method h(v) {
   return computeLineDistance(v.latLong, NYC.latLong);
}

可视化两者对比

http://qiao.github.io/PathFinding.js/visual/

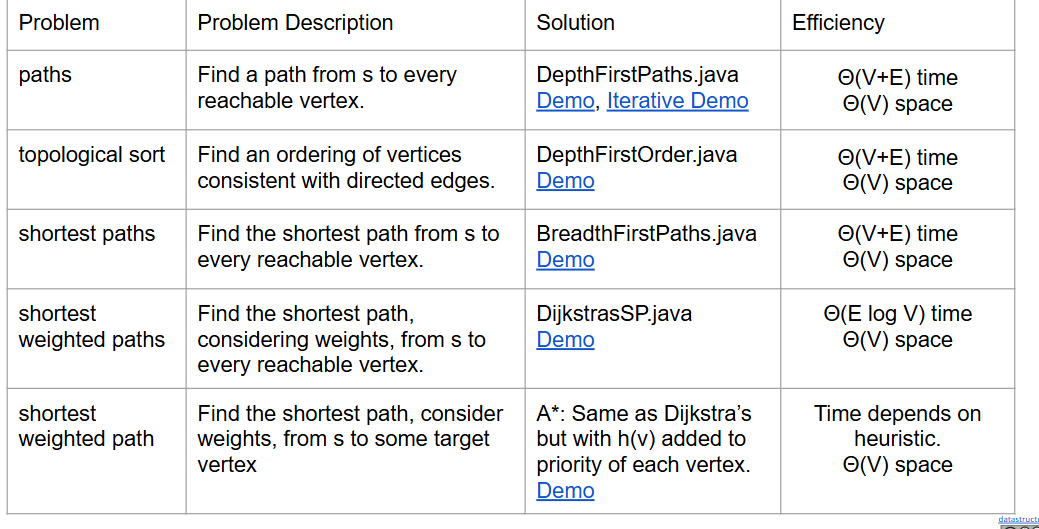

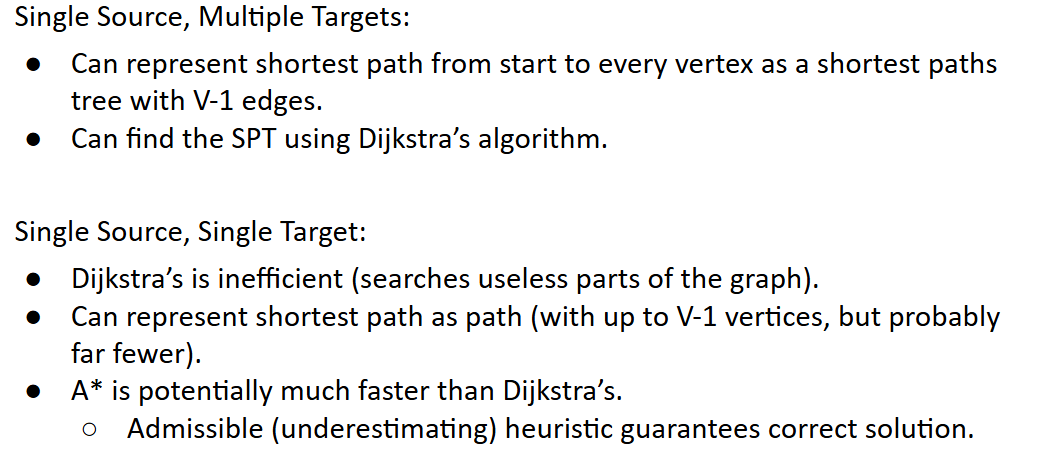

Summary

graph problems so so far

A* Tree Search vs. A* Graph Search Admissibility vs. Consistency (Extra: See CS188 for more)

see

Iterative DFS (Extra)

see
