61B-27: Graphs

HHZZ included in UCB-CS61B

2024-07-13 325 words 2 minutes

Contents

intro

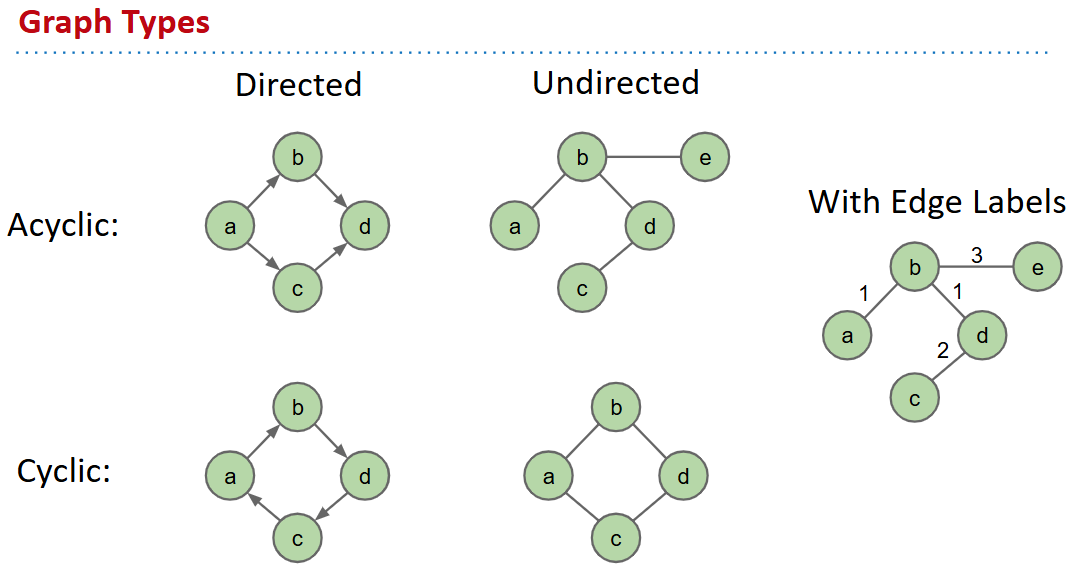

types of graph

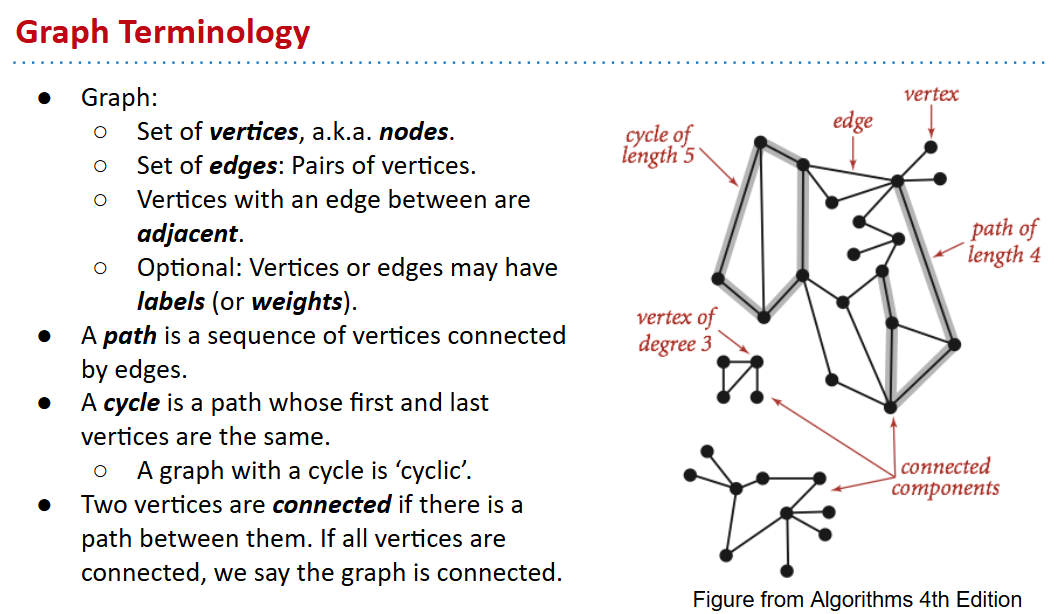

terminology

图论问题

s-t Path. Is there a path between vertices s and t?
Shortest s-t Path. What is the shortest path between vertices s and t?
Cycle. Does the graph contain any cycles?
Euler Tour. Is there a cycle that uses every edge exactly once?
Hamilton Tour. Is there a cycle that uses every vertex exactly once?
Connectivity. Is the graph connected, i.e. is there a path between all vertex pairs?
Biconnectivity. Is there a vertex whose removal disconnects the graph?
Planarity. Can you draw the graph on a piece of paper with no crossing edges?
Isomorphism. Are two graphs isomorphic (the same graph in disguise)?

Graph problems: Unobvious which are easy, hard, or computationally intractable.

Graph Representations

Common Simplification: Integer Vertices

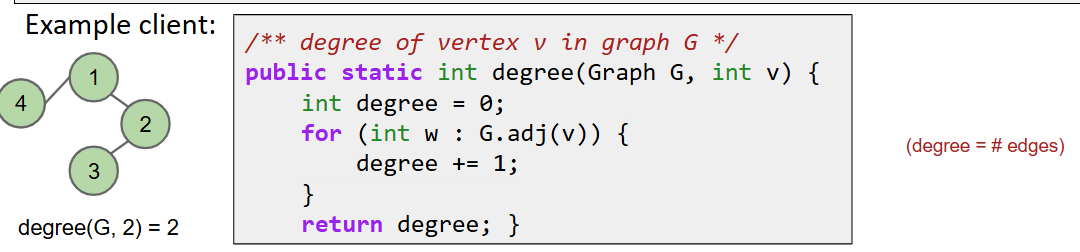

API

1
2
3
4
5
6
7


public class Graph {
  public Graph(int V):               // Create empty graph with v vertices
  public void addEdge(int v, int w): // add an edge v-w
  Iterable<Integer> adj(int v):      // vertices adjacent to v
  int V():                           // number of vertices
  int E():                           // number of edges
...

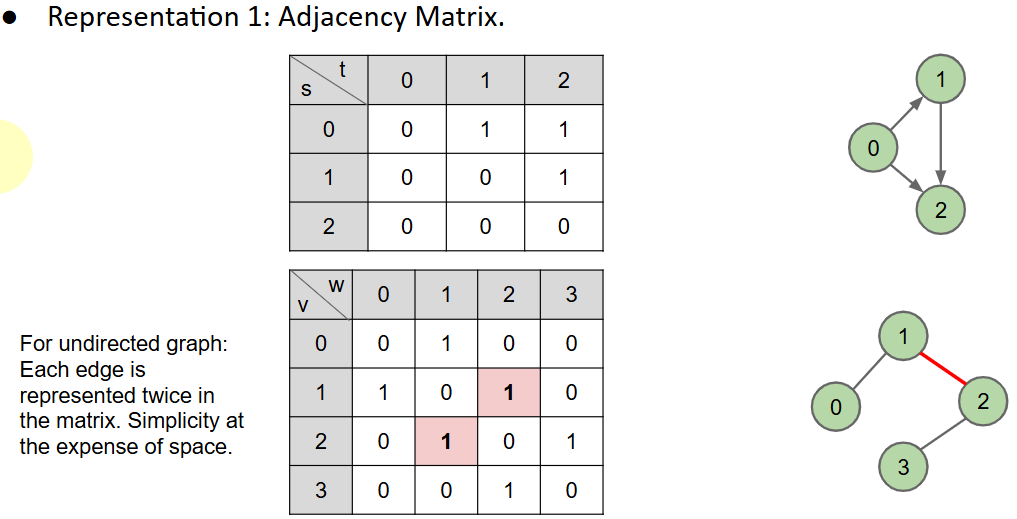

#1 Adjacency Matrix

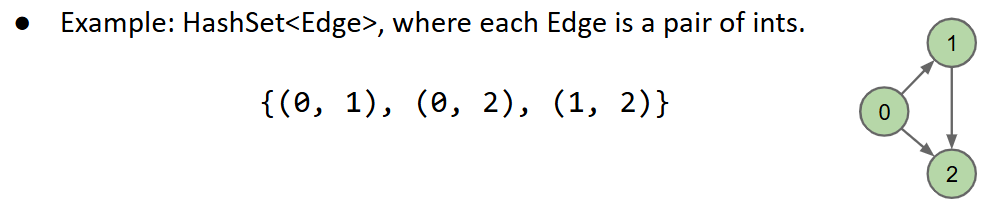

#2 edge set

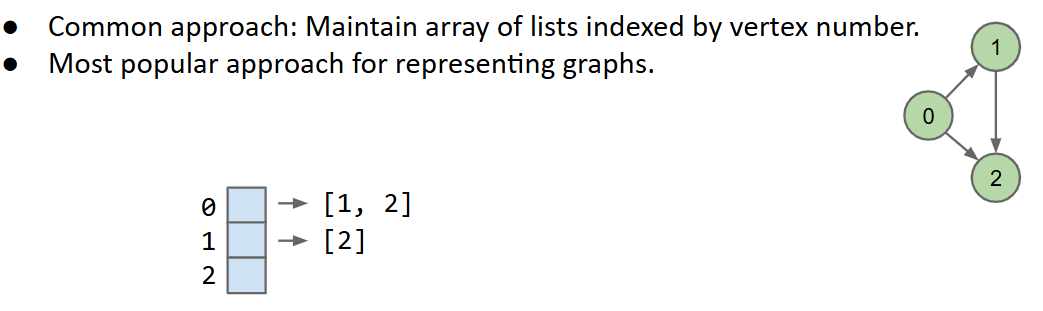

#3 Adjacency List

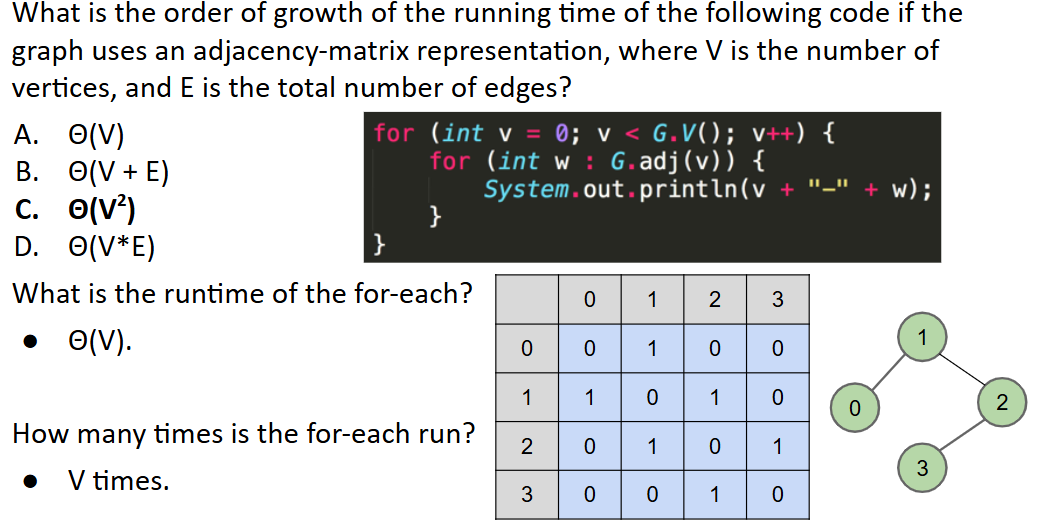

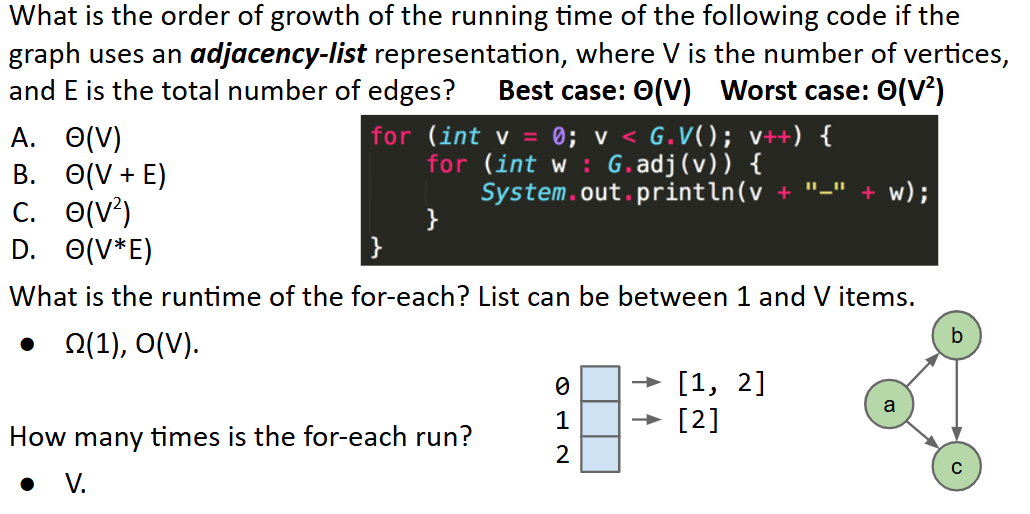

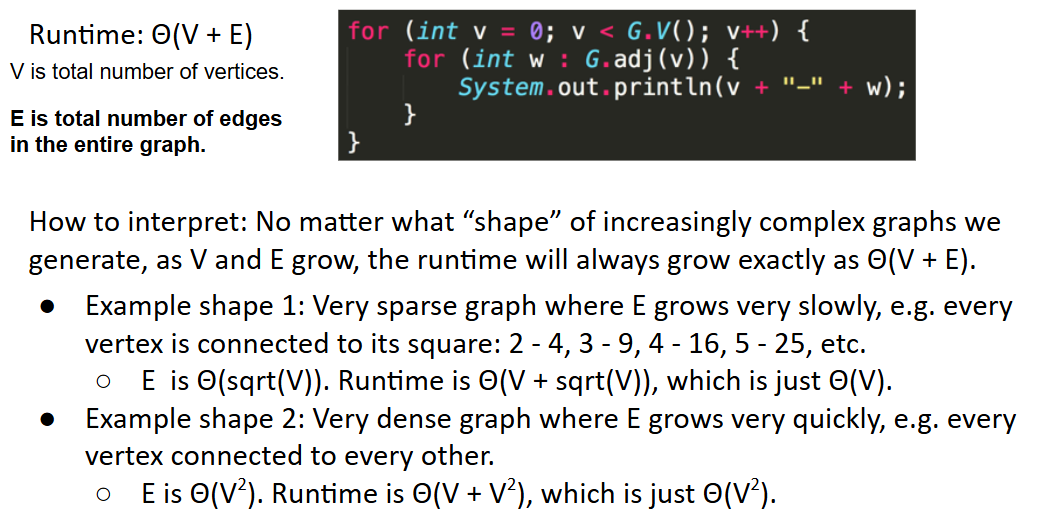

$\Theta(V) \rightarrow \Theta(V^2) $ √ $$ \Theta(V+E) $$ 才是有意思的答案

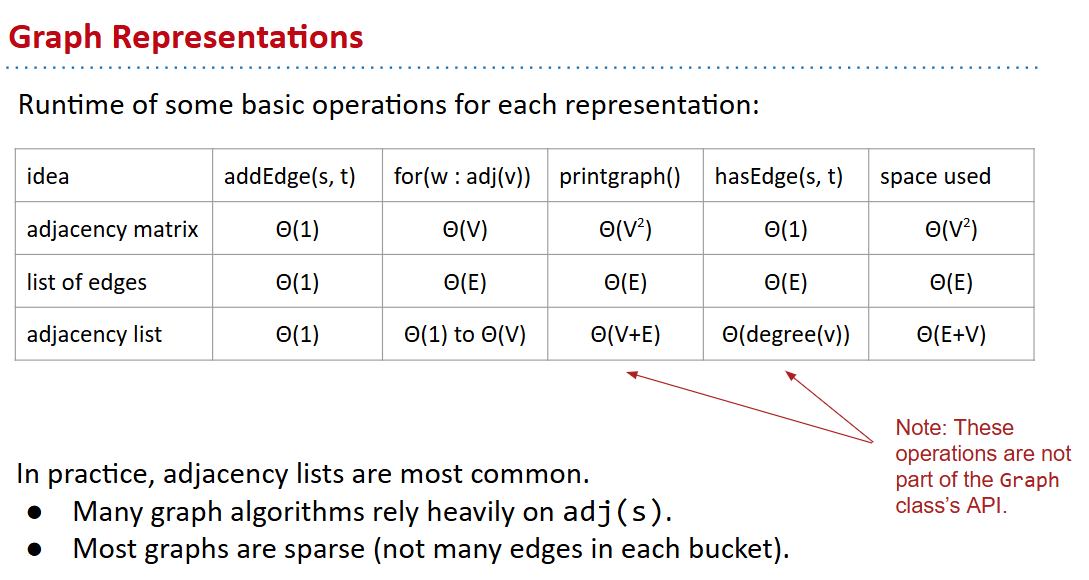

总结

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19


public class Graph {
	private final int V;    private List<Integer>[] adj;

	public Graph(int V) {
    	    this.V = V;
    	    adj = (List<Integer>[]) new ArrayList[V]; // cast!
    	    for (int v = 0; v < V; v++) {
             adj[v] = new ArrayList<Integer>();
         }
	}

	public void addEdge(int v, int w) {
         adj[v].add(w);   adj[w].add(v);
	}

	public Iterable<Integer> adj(int v) {
        return adj[v];
	}
}

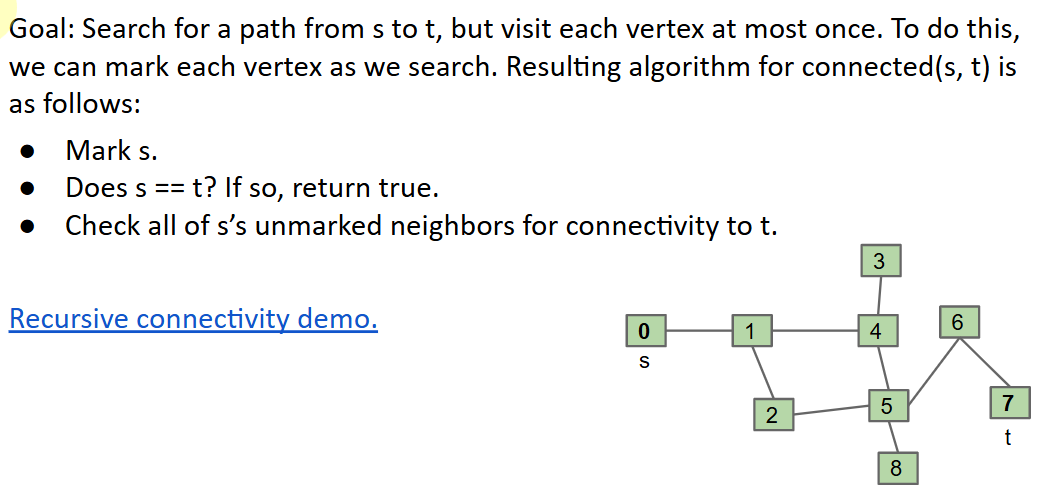

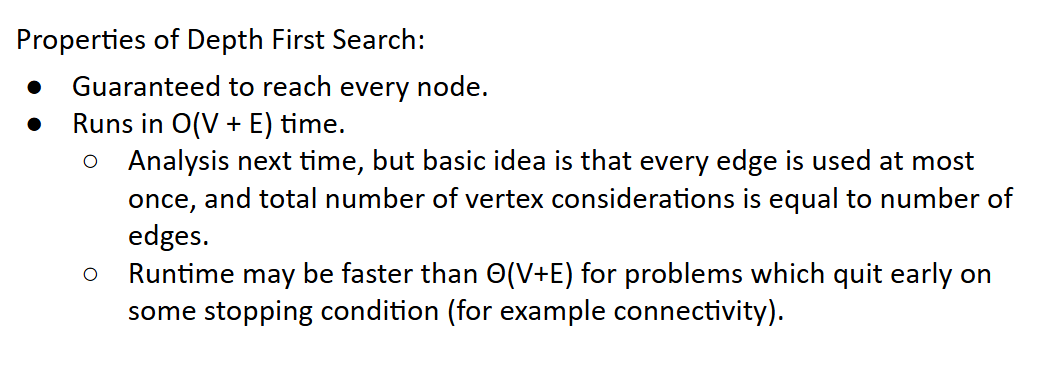

Depth First Traversal

https://docs.google.com/presentation/d/1IJyC4cAogU2x3erW7E3hDz8jWDTLoaaot8u2ebHtpto/pub?start=false&loop=false&delayms=3000

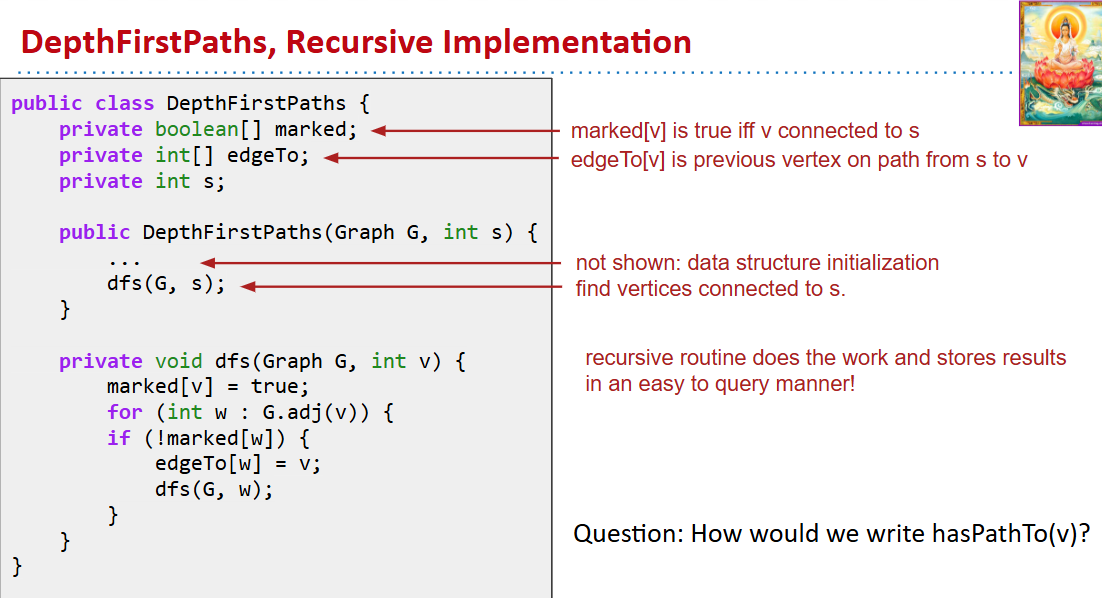

implementation

1
2
3
4
5


public class Paths {
    public Paths(Graph G, int s):    Find all paths from G
    boolean hasPathTo(int v):        is there a path from s to v?
    Iterable<Integer> pathTo(int v): path from s to v (if any)
}
