61B-24: Priority Queues and Heaps

interface

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
/** (Min) Priority Queue: Allowing tracking and removal of the
  * smallest item in a priority queue. */
public interface MinPQ<Item> {
	/** Adds the item to the priority queue. */
	public void add(Item x);
	/** Returns the smallest item in the priority queue. */
	public Item getSmallest();
	/** Removes the smallest item from the priority queue. */
	public Item removeSmallest();
	/** Returns the size of the priority queue. */
	public int size();
}

全记录下来然后排序?naive way!

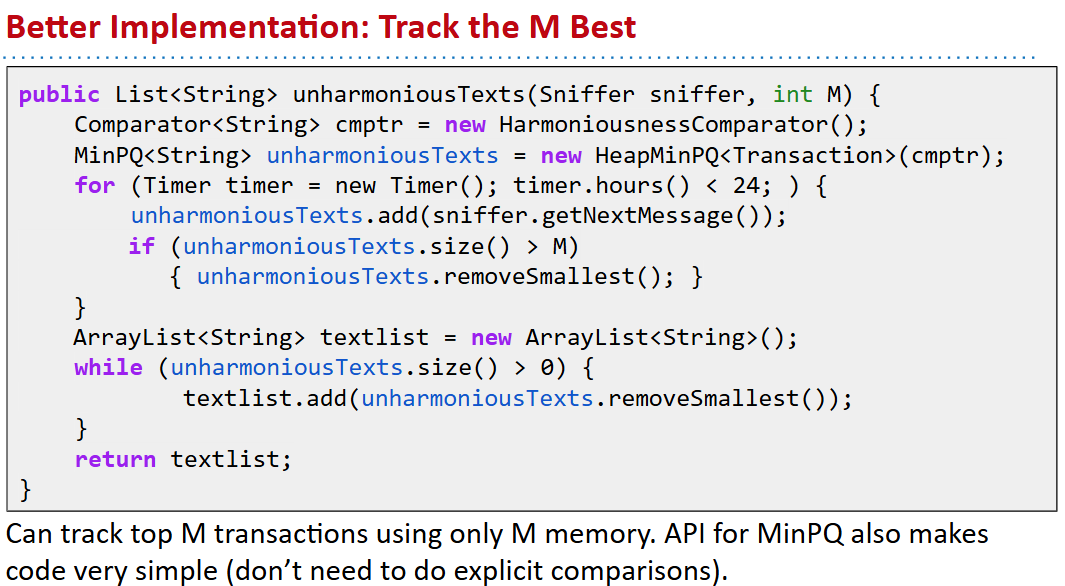

better way /61b-24/image.png

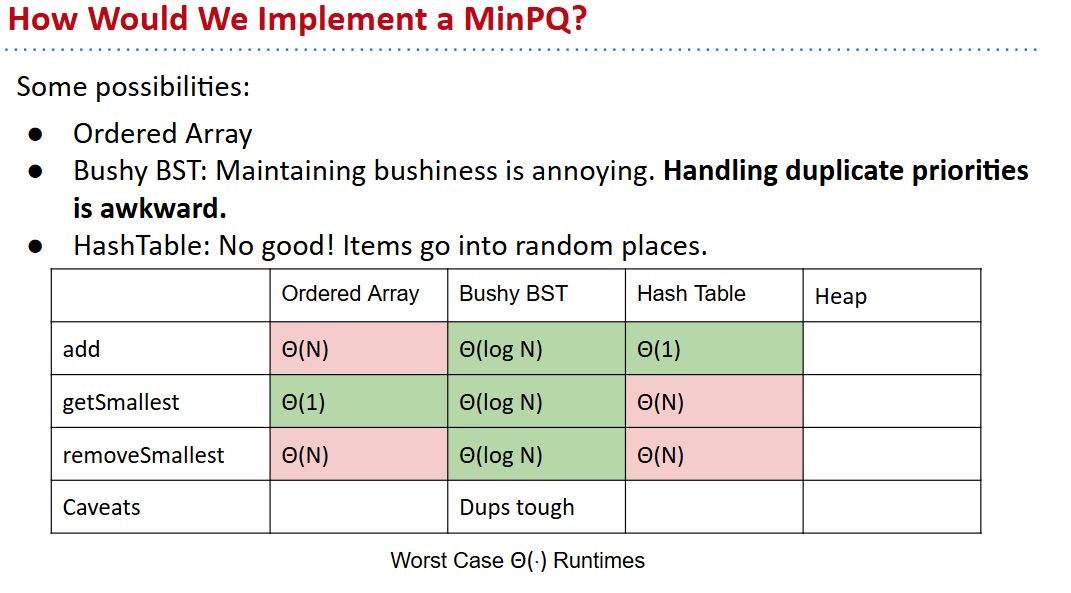

/61b-24/image-1.png

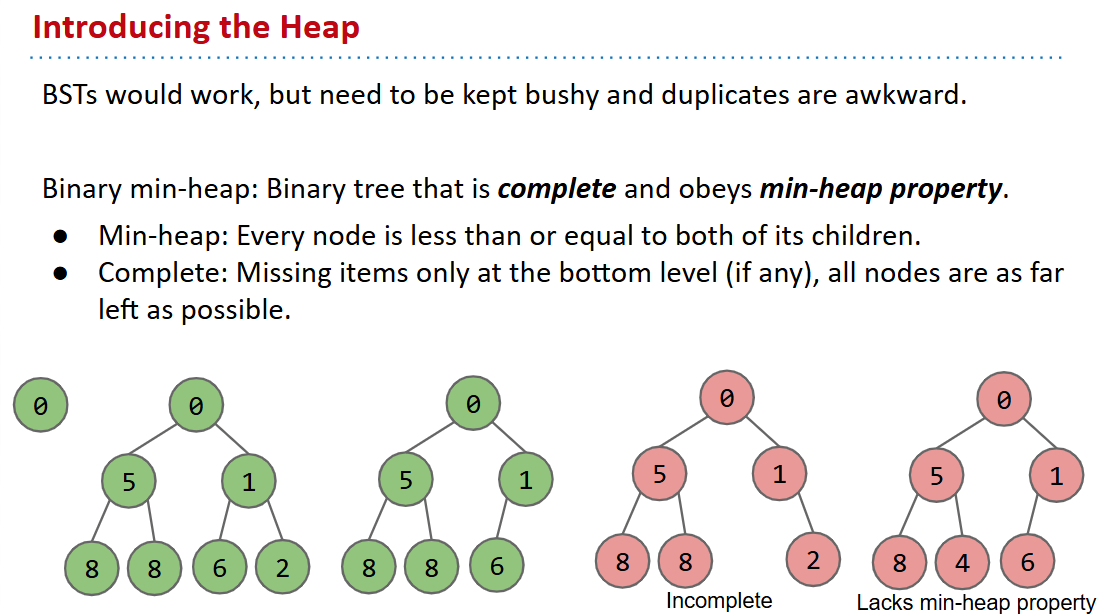

heaps

bst way

/61b-24/image-2.png

see https://goo.gl/wBKdFQ

Given a heap, how do we implement PQ operations?

  • getSmallest() - return the item in the root node.
  • add(x) - place the new employee in the last position, and promote as high as possible.
  • removeSmallest() - assassinate the president (of the company), promote the rightmost person in the company to president. Then demote repeatedly, always taking the ‘better’ successor.

Tree Representations

How do we Represent a Tree in Java?

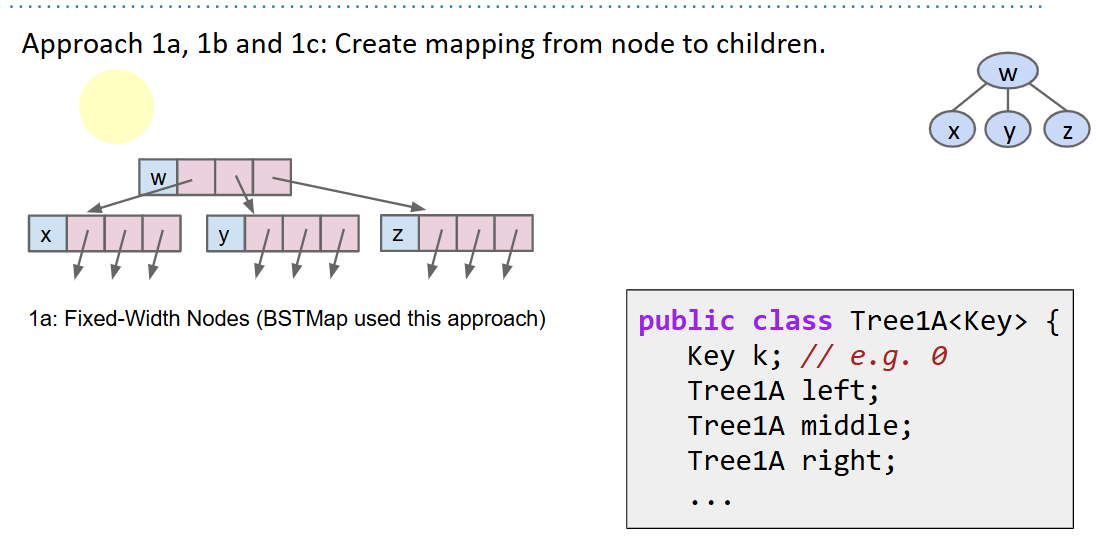

1a

/61b-24/image-3.png

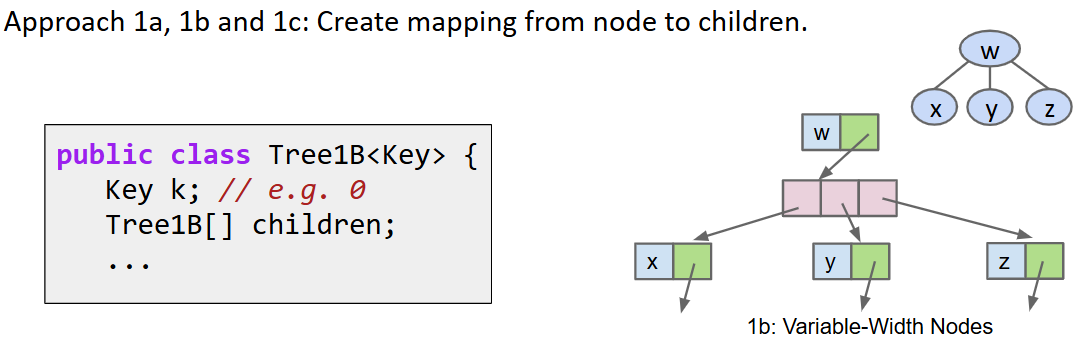

1b

/61b-24/image-4.png

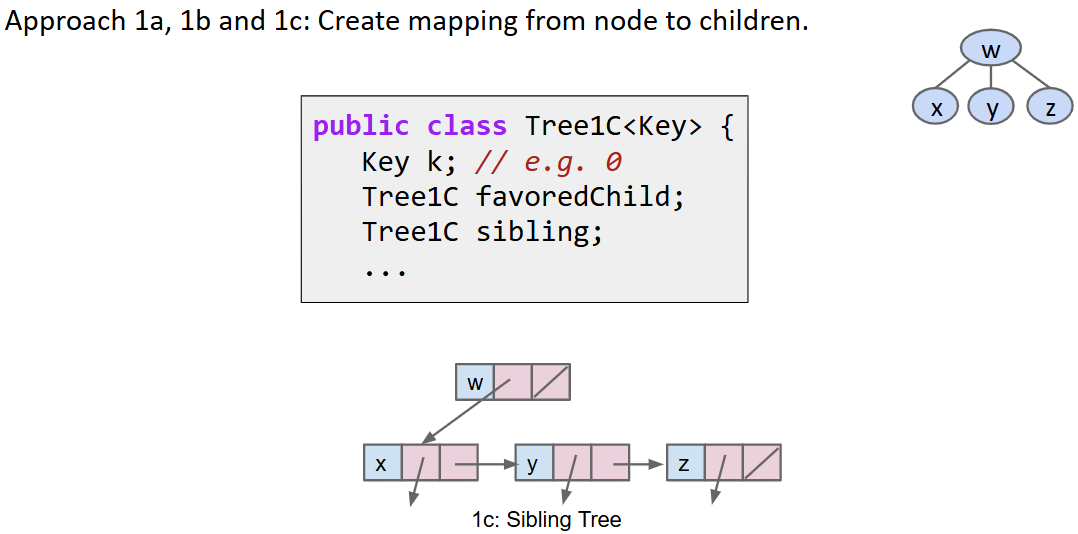

1c

/61b-24/image-5.png

2 Store keys in an array. Store parentIDs in an array.

Similar to what we did with disjointSets. /61b-24/image-6.png

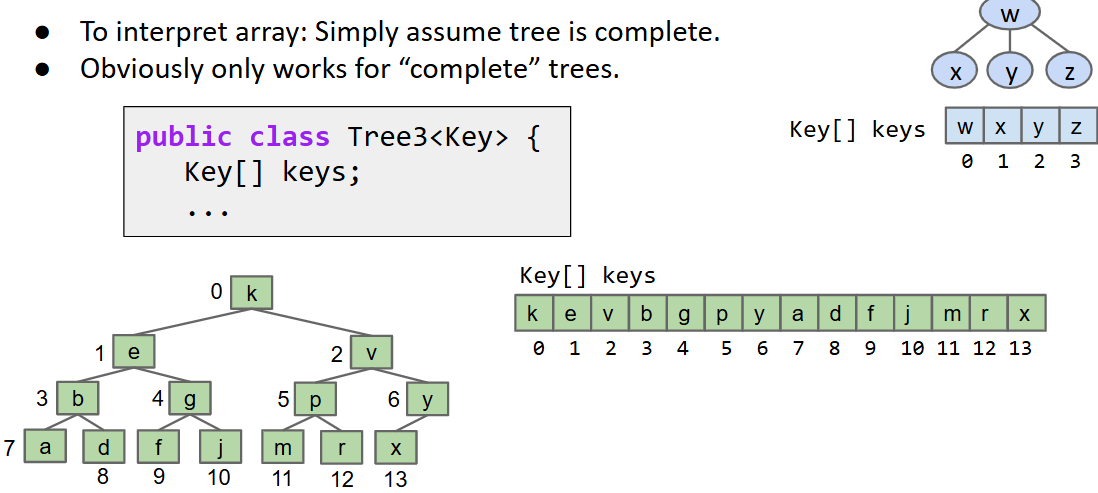

3 Store keys in an array. Don’t store structure anywhere.

从左到右分层级编码进入数组 /61b-24/image-7.png

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
public class Tree3<Key> {
    Key[] keys;
    ...

    public void swim(int k) {
        if (keys[parent(k)]  keys[k]) {
        swap(k, parent(k));
        swim(parent(k));
        }
    }

    public int parent(int k) {
        return (k - 1) / 2;
    } // 观察法

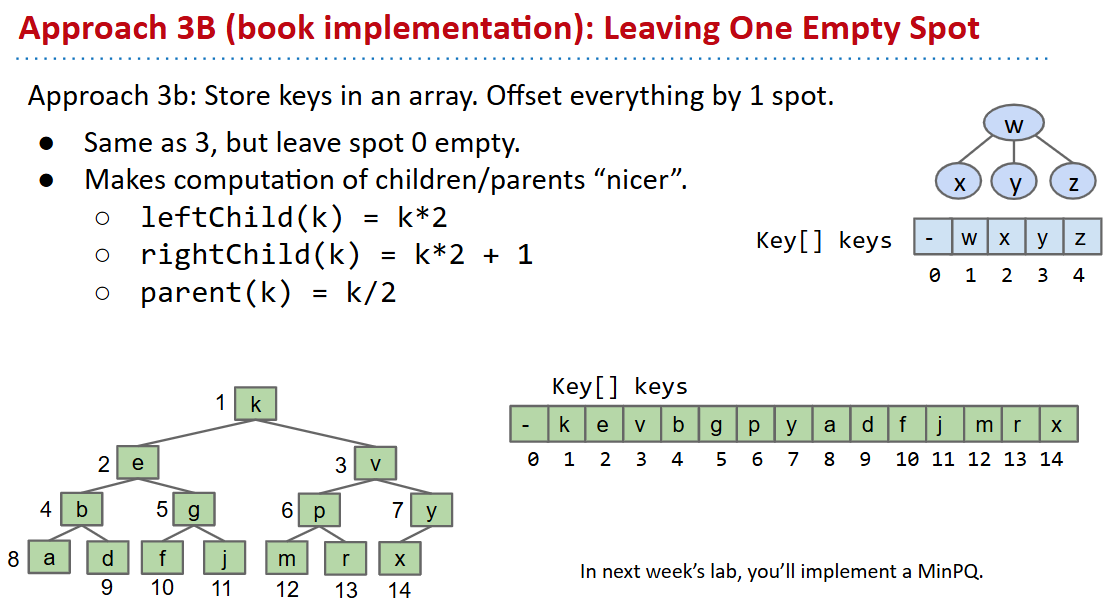

3b

/61b-24/image-8.png

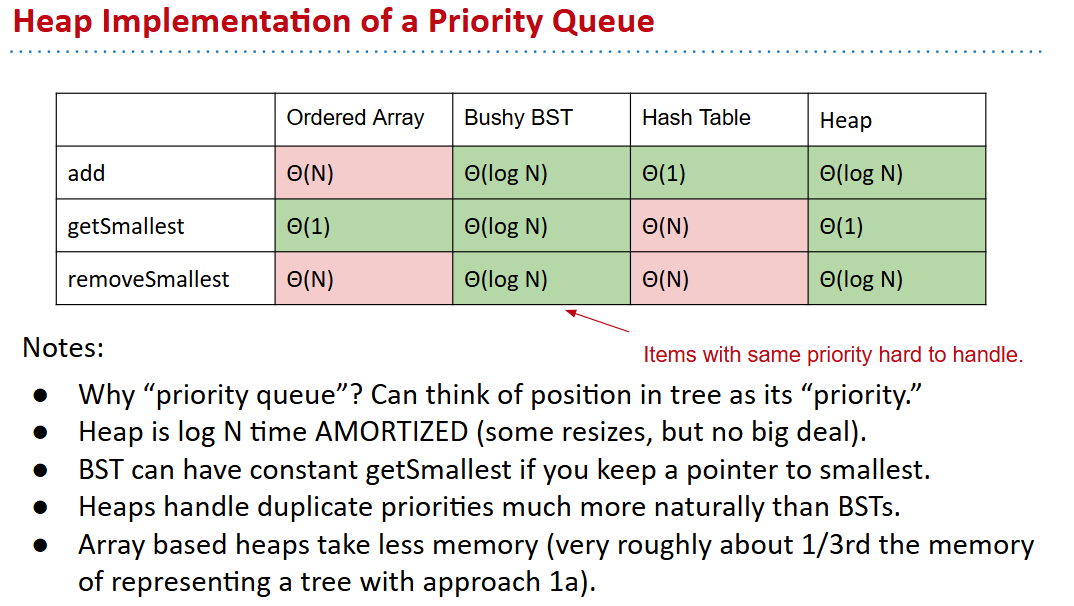

对比

/61b-24/image-9.png

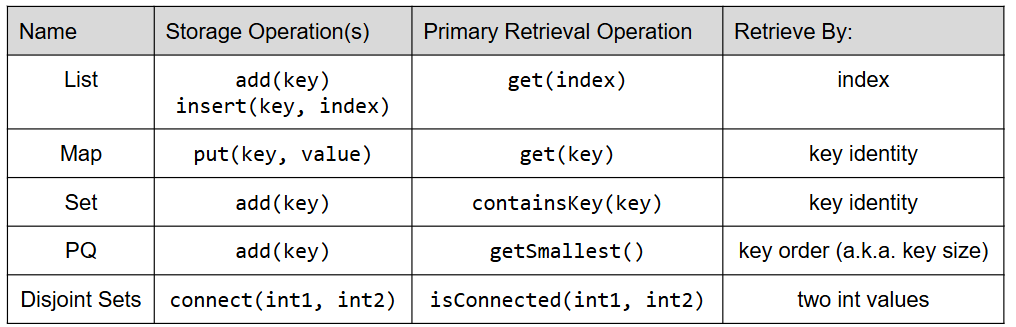

Data Structures Summary

Search Data Structures (The particularly abstract ones)

/61b-24/image-10.png /61b-24/image-11.png
