To avoid the worst-case time complexity of O(n), we need to use a balanced binary search tree.

Tree Rotation

Non-obvious fact: Rotation allows balancing of any BST. One way to achieve balance:

• Rotate after each insertion and deletion to maintain balance.
• … the mystery is to know which rotations. We’ll come back to this.

B-trees / 2-3 trees / 2-3-4 trees

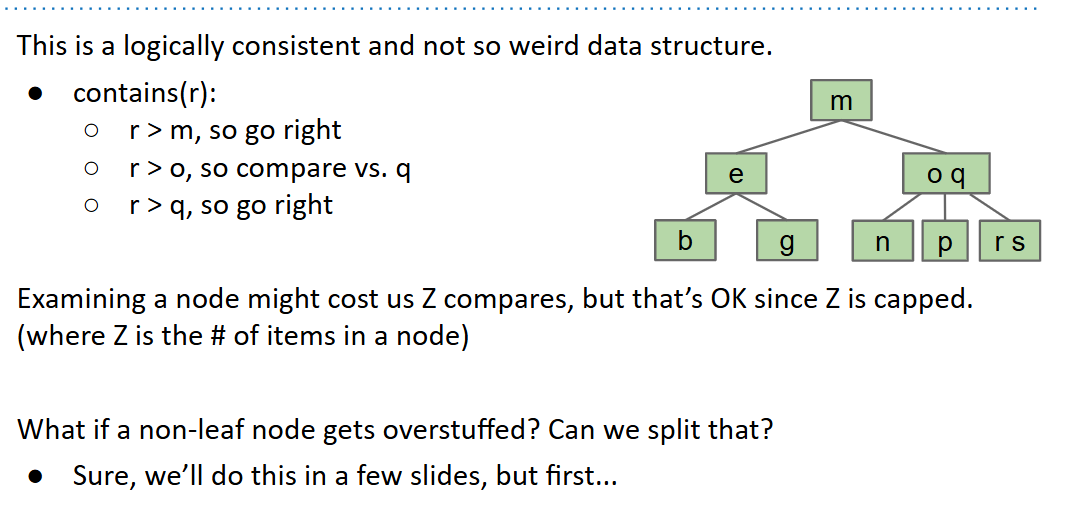

search tree

weird solution to achieve balance

• add leaf

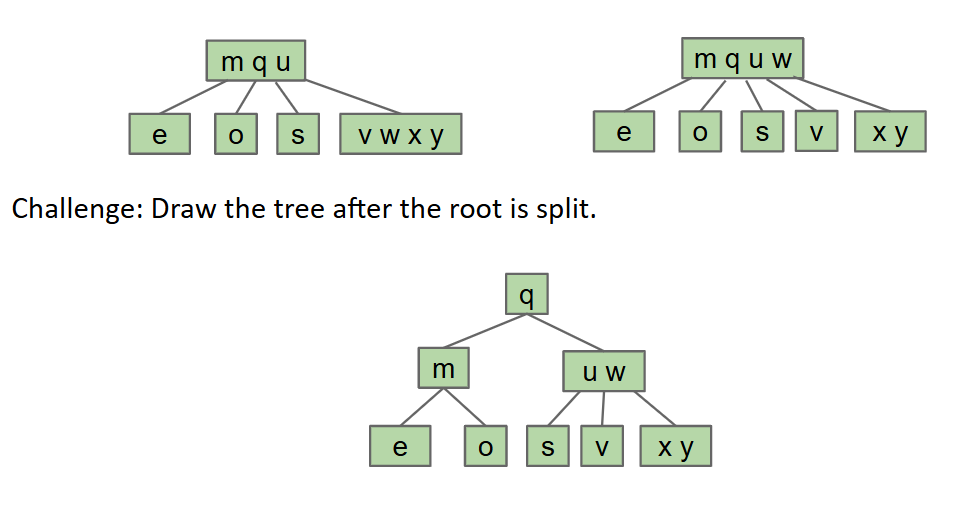

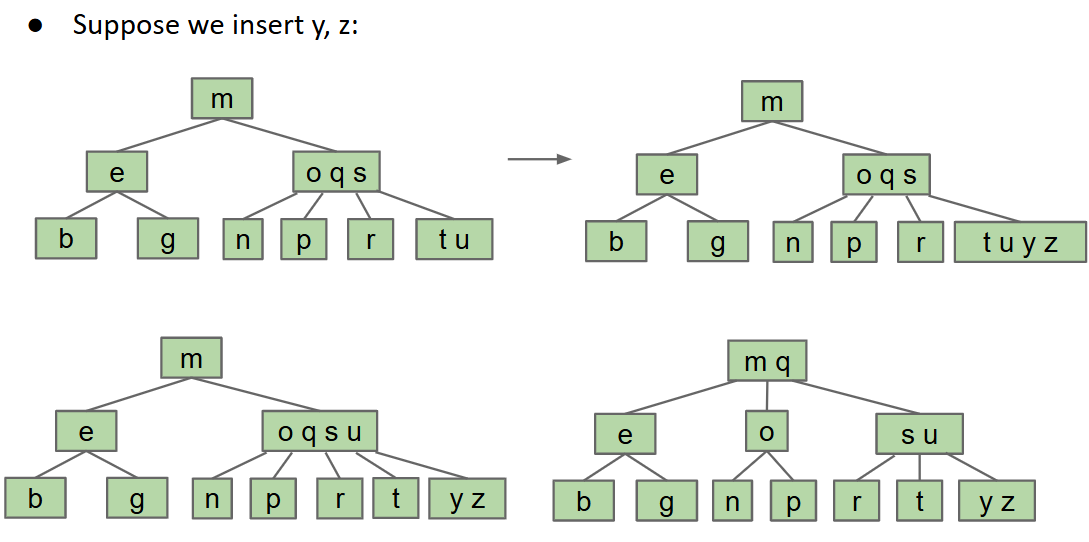

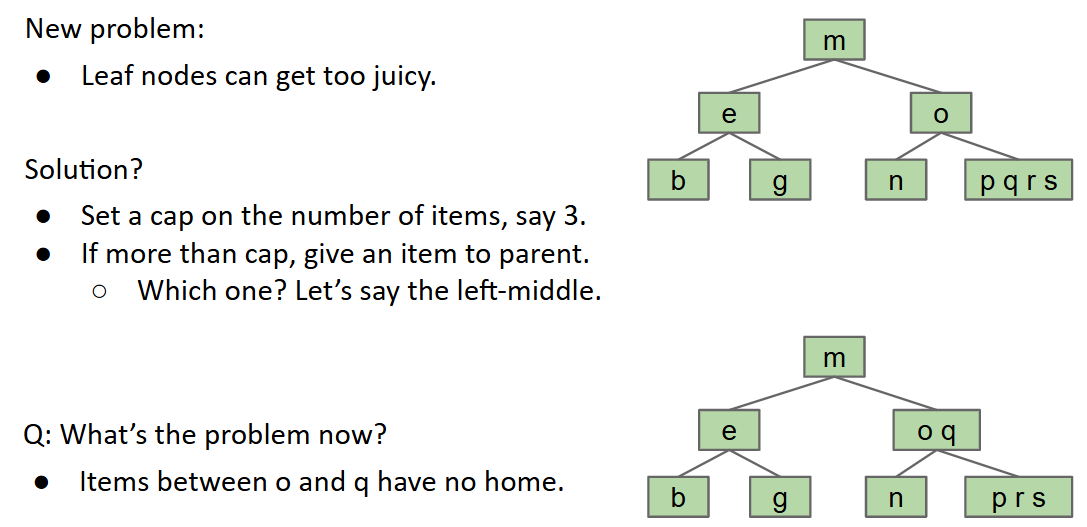

• overstuff leaf, but can not be too juicy!

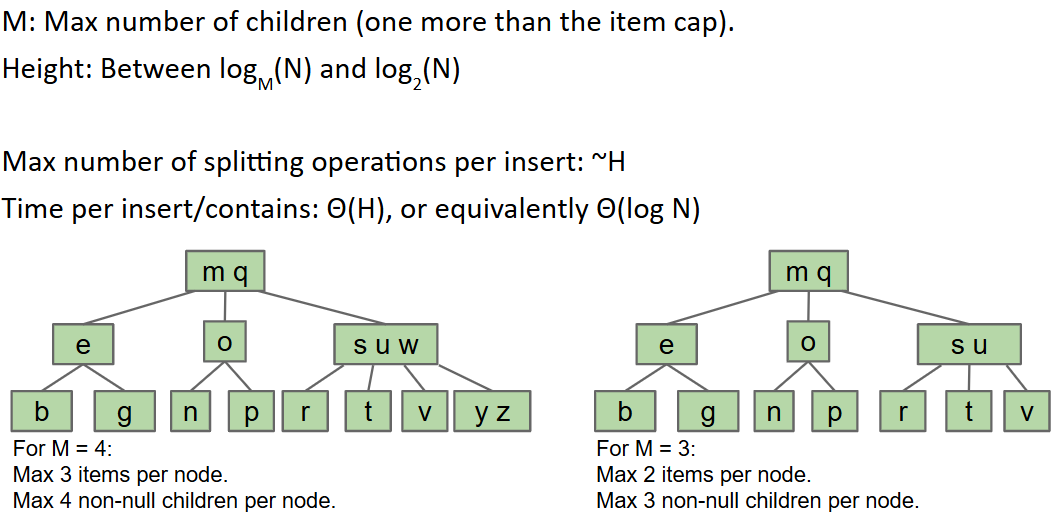

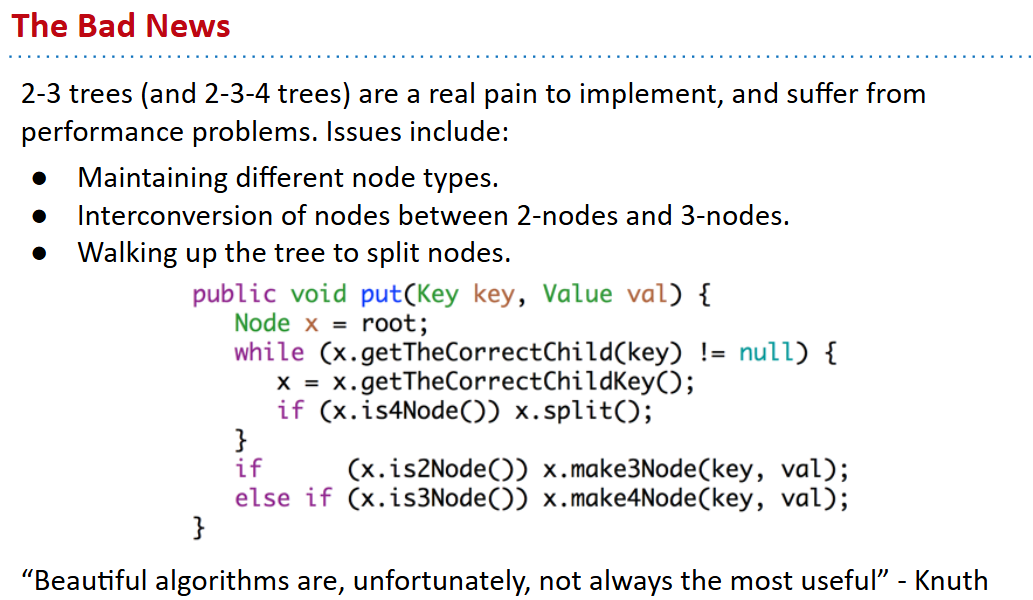

Performance of B-trees

Splitting tree is a better name, but I didn’t invent them, so we’re stuck with their real name: B-trees.

• A B-tree of order M=4 (like we used today) is also called a 2-3-4 tree or a 2-4 tree.
  • The name refers to the number of children that a node can have, e.g. a 2-3-4 tree node may have 2, 3, or 4 children.
• A B-tree of order M=3 (like in the textbook) is also called a 2-3 tree.

Red-Black Trees

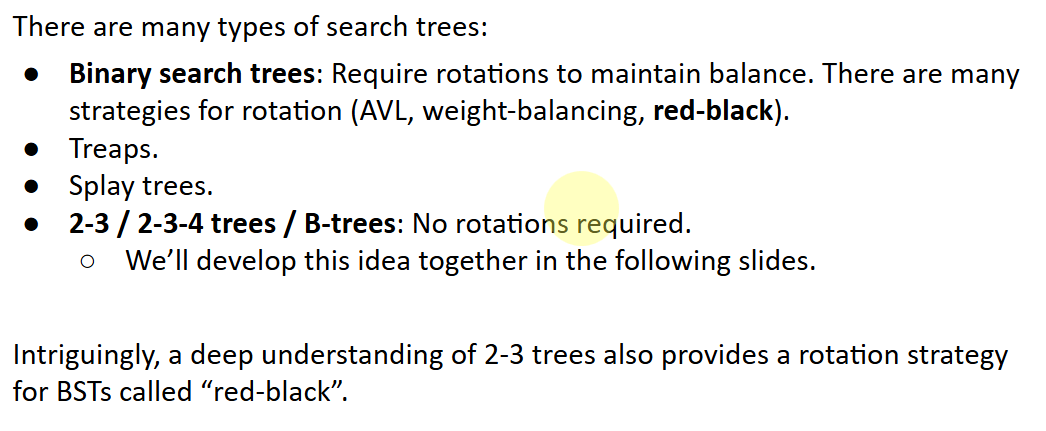

There are many types of search trees:

• Binary search trees: Require rotations to maintain balance. There are many strategies for rotation. Coming up with a strategy is hard.
• 2-3 trees: No rotations required.

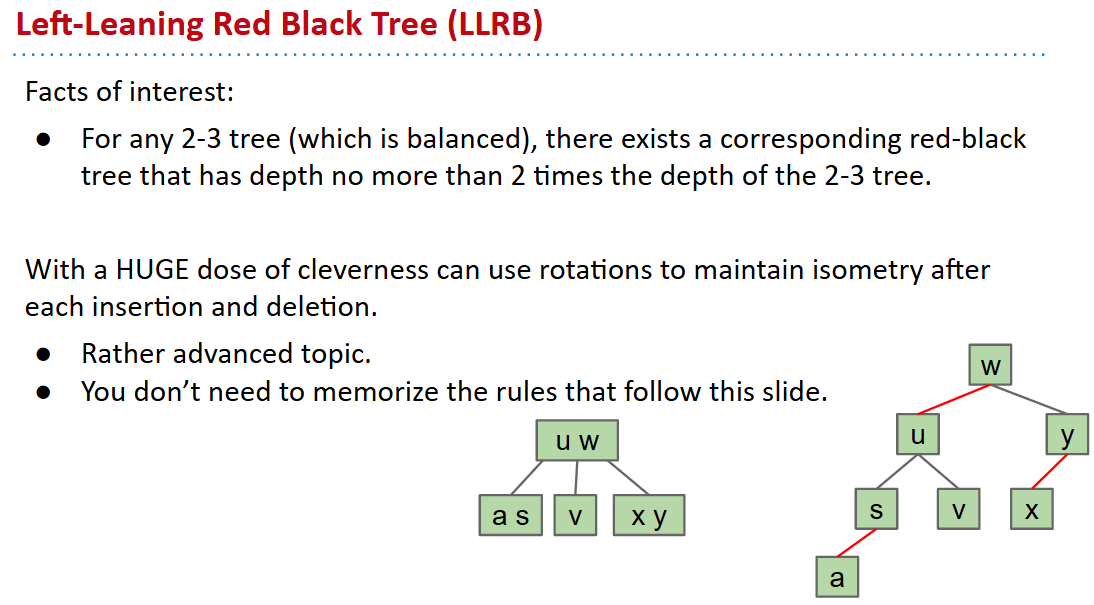

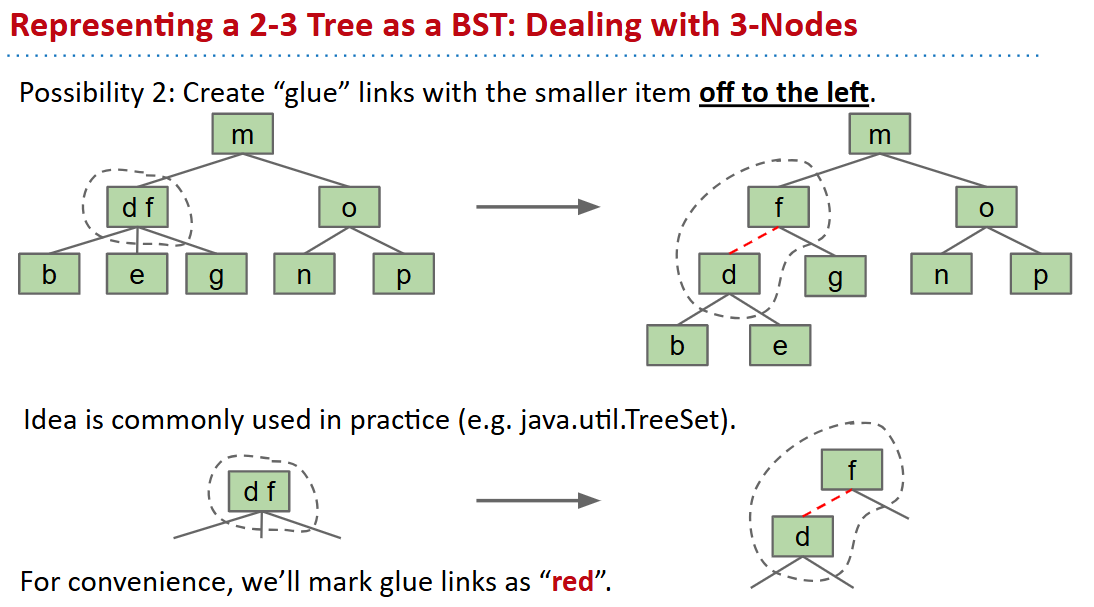

Clever (and strange idea): Build a BST that is isometric (structurally identical) to a 2-3 tree.

• Use rotations to ensure the isometry.
• Since 2-3 trees are balanced, rotations on BST will ensure balance.

Maintaining Isometry Through Rotations (Optional)

Violations for LLRBs:

• Two red children.
• Two consecutive red links.
• Right red child.

Operations for Fixing LLRB Tree Violations: Tree rotations and Color Flips!

• when insert , use red link
  • if right-insert happens, rotateLeft

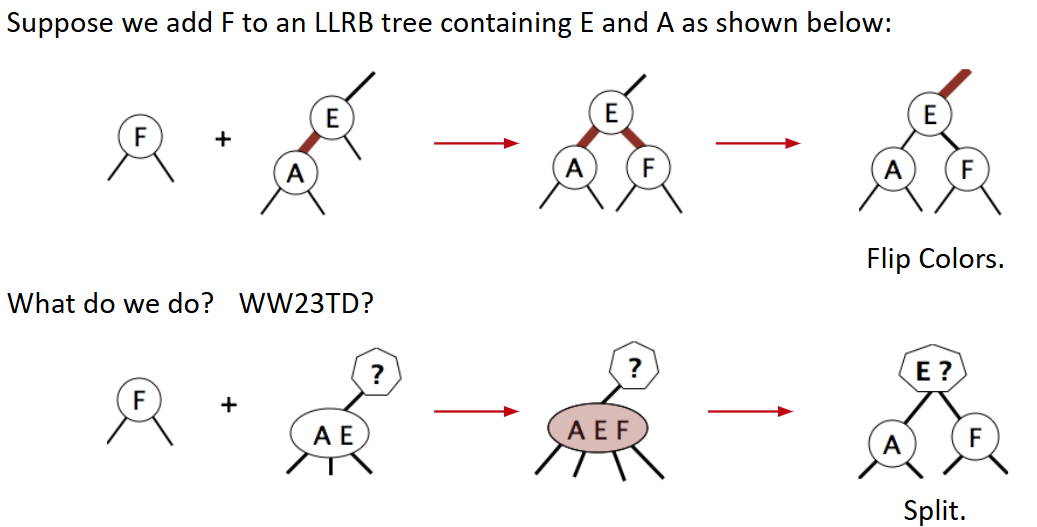

  • two red children?
  • two reds in a row?

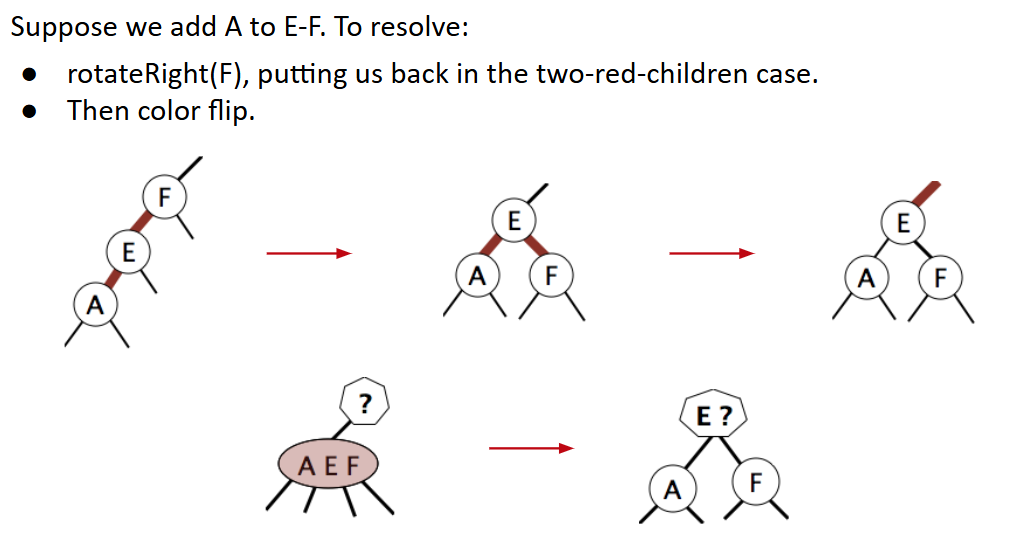

  • Left-Red-Right-Red?

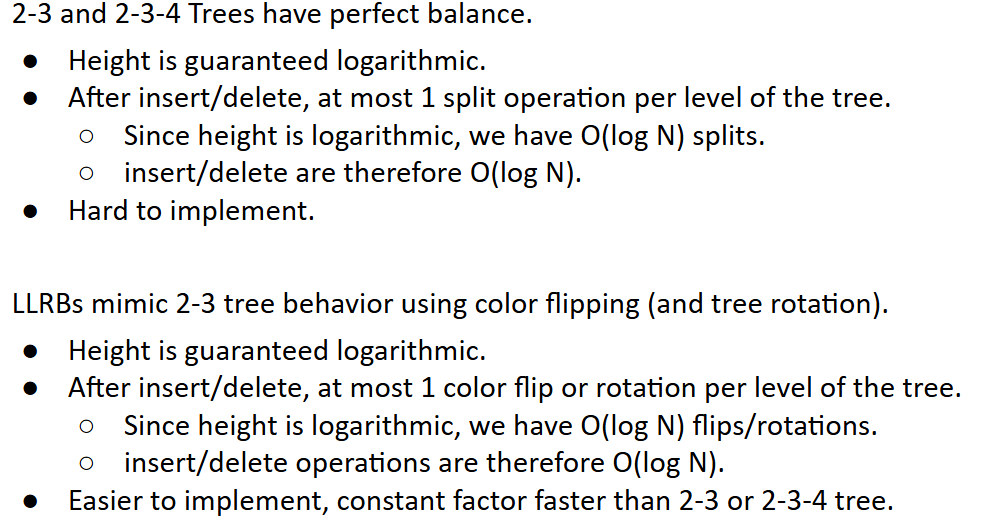

summary
