ordered linked list—> binary search tree or skip list (out of course)

BST Definitions

A tree consists of:

• A set of nodes.
• A set of edges that connect those nodes.
  • Constraint: There is exactly one path between any two nodes.

In a rooted tree, we call one node the root.

• Every node N except the root has exactly one parent, defined as the first node on the path from N to the root.
• Unlike (most) real trees, the root is usually depicted at the top of the tree.
• A node with no child is called a leaf.

In a rooted binary tree, every node has either 0, 1, or 2 children (subtrees).

Properties of BSTs

A binary search tree is a rooted binary tree with the BST property.

BST Property. For every node X in the tree:

• Every key in the left subtree is less than X’s key.
• Every key in the right subtree is greater than X’s key. One consequence of these rules: No duplicate keys allowed!

BST Operations

Finding a searchKey in a BST

 1
 2
 3
 4
 5
 6
 7
 8
 9
10

static BST find(BST T, Key sk) {
   if (T == null)
      return null;
   if (sk.keyequals(T.label()))
      return T;
   else if (sk ≺ T.label())
      return find(T.left, sk);
   else
      return find(T.right, sk);
}

runtime: $O(h)$, where $h$ is the height of the tree, i.e., $O(log (N))$, where $N$ is the number of nodes in the tree.

Inserting a new key into a BST

1
2
3
4
5
6
7
8
9

static BST insert(BST T, Key ik) {
  if (T == null)
    return new BST(ik);
  if (ik ≺ T.label())
    T.left = insert(T.left, ik);
  else if (ik ≻ T.label())
    T.right = insert(T.right, ik);
  return T;
}

Deleting a key from a BST

• no child: simply remove the node.
• one child: replace the node with its child.

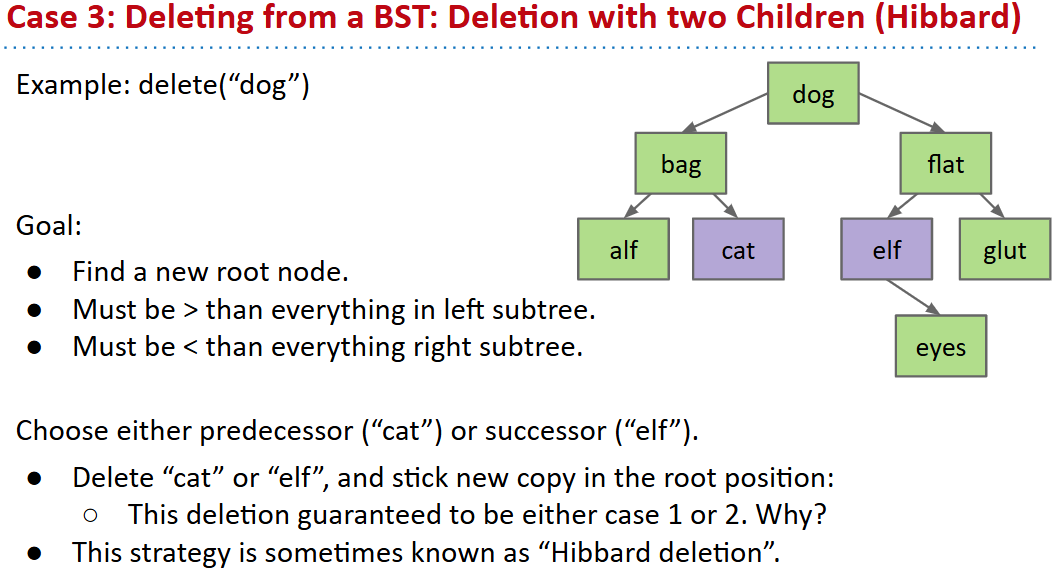

• two children: find the inorder successor (smallest in the right subtree) and replace the node with it. Then recursively delete the inorder successor from the right subtree.

BST Performance

Tree Height

Performance of spindly trees can be just as bad as a linked list!

usually, the height of a BST is $O(log(N))$, where $N$ is the number of nodes in the tree.

Insertion demo

Random inserts take on average only Θ(log N) each.

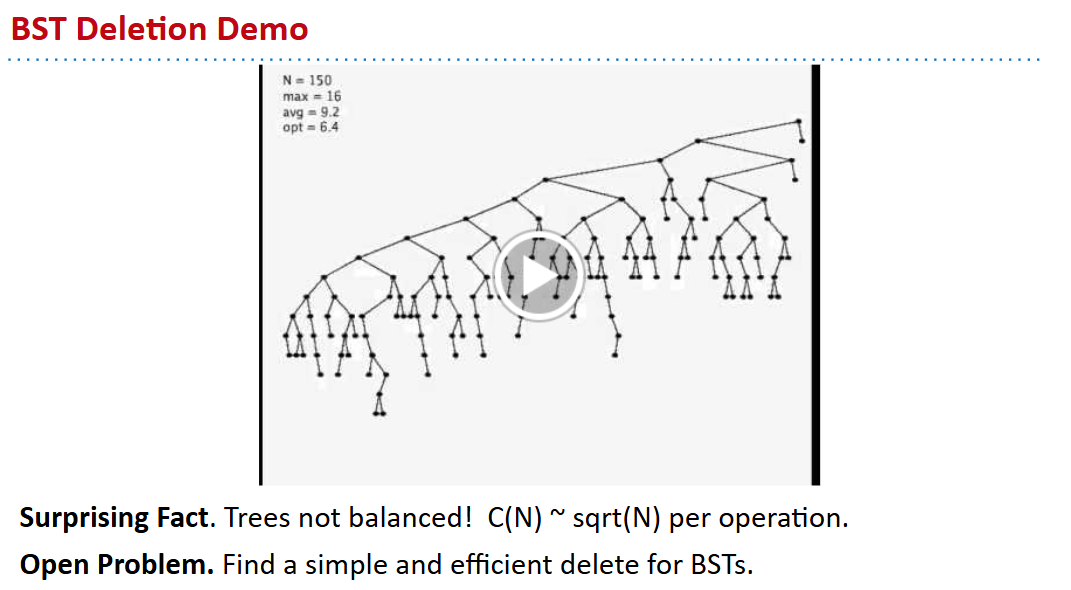

Deletion demo

https://docs.google.com/presentation/d/1rEHpAx8Xu2LnJBWsRPWy8blL20qb96Q5UhdZtQYFkBI/edit#slide=id.g75707c75c_0224
