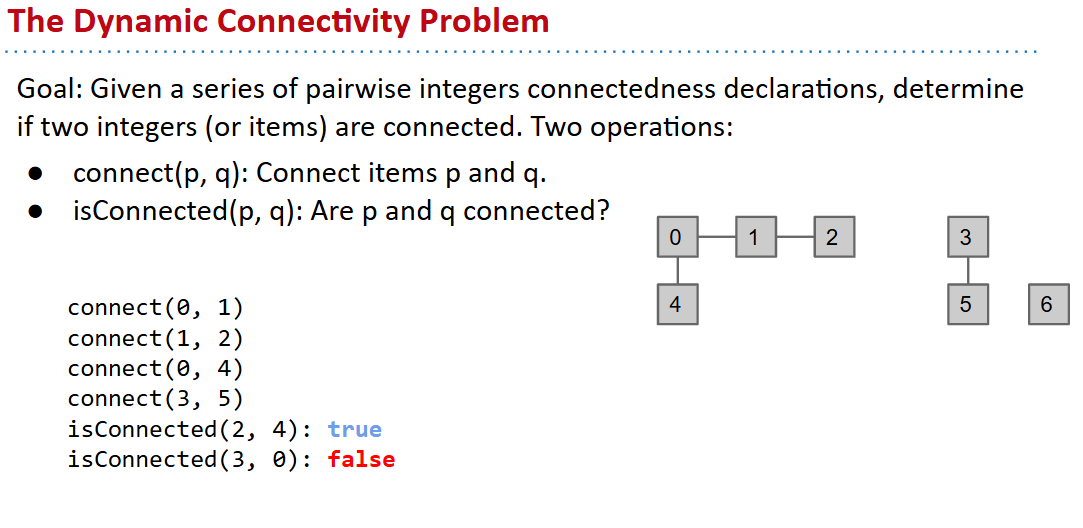

不相交集问题
1
2
3
4
5
6
7
|
public interface DisjointSets {
/** Connects two items P and Q. */
void connect(int p, int q);
/** Checks to see if two items are connected. */
boolean isConnected(int p, int q);
}
|
naive implementation
真的链接两个元素，然后考虑遍历整个集合，判断是否有两个元素是连通的。

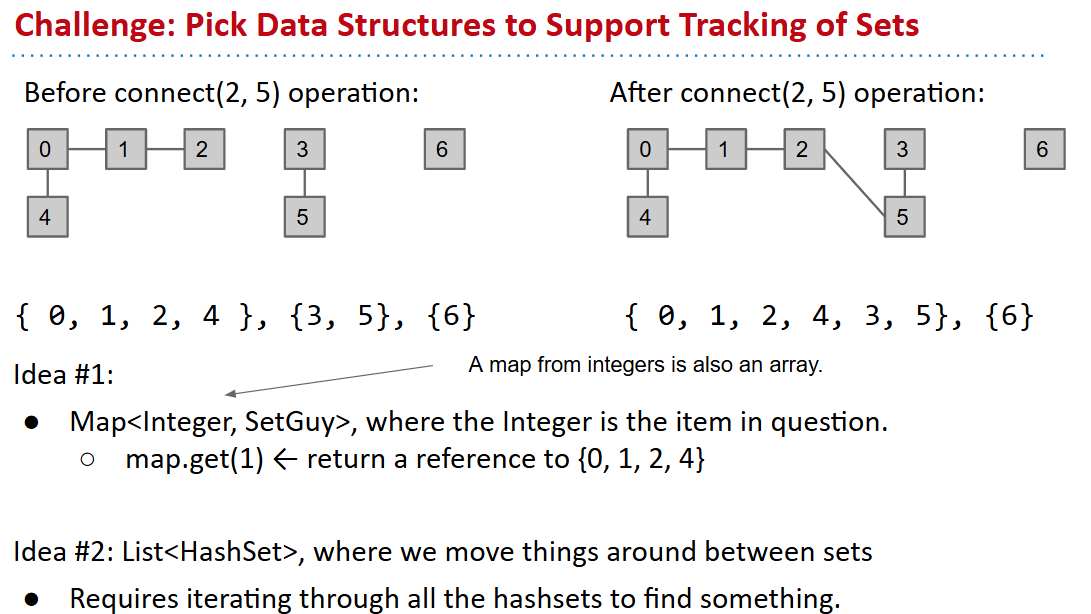

better implementation
- Better approach: Model connectedness in terms of sets.
- How things are connected isn’t something we need to know.😉
quick-find
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
|
public class QuickFindDS implements DisjointSets {
private int[] id;
// really fast
public boolean isConnected(int p, int q) {
return id[p] == id[q];
}
public void connect(int p, int q) {
int pid = id[p];
int qid = id[q];
for (int i = 0; i < id.length; i++) {
if (id[i] == pid) {
id[i] = qid;
}
}...
}
// constructor
public QuickFindDS(int N) {
id = new int[N];
for (int i = 0; i < N; i++)
id[i] = i;
}
}
|

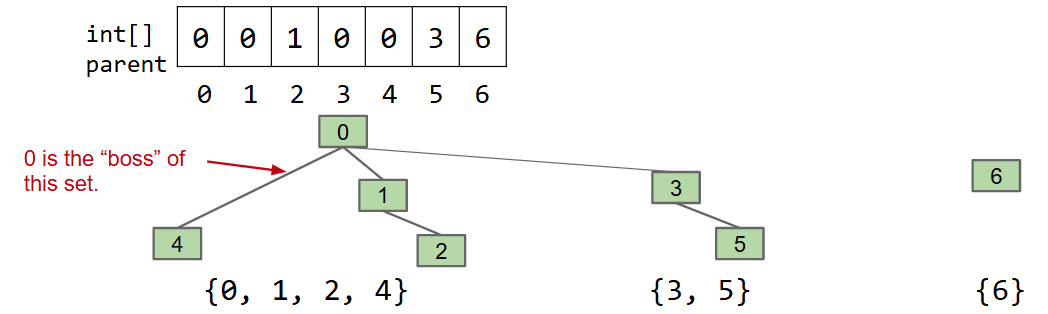

quick-union
考虑不用数组，用 🌳😋
- tree can not be too tall: 树不能太高，否则会退化成链表⚠️
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
|
public class QuickUnionDS implements DisjointSets {
private int[] parent;
public QuickUnionDS(int N) {
parent = new int[N];
for (int i = 0; i < N; i++)
parent[i] = i;
} // linear time to create N trees
private int find(int p) {
while (p != parent[p])
p = parent[p]; // p[i] and i 很重要！
return p;
}
public boolean isConnected(int p, int q) {
return find(p) == find(q);
}
public void connect(int p, int q) {
int i = find(p);
int j = find(q);
parent[i] = j; // 合并两个树
}
}
|

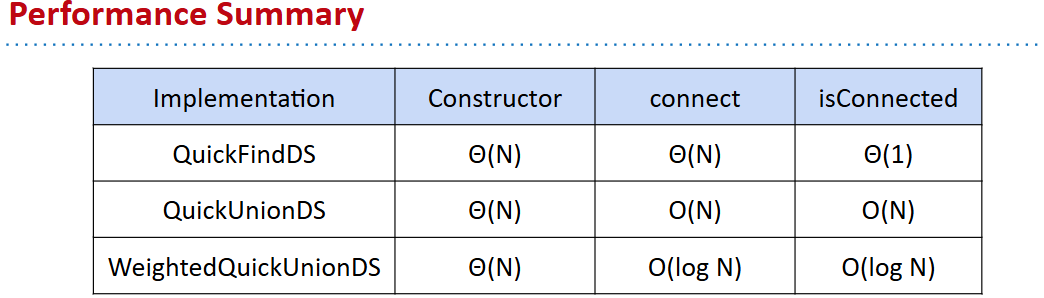

weighted quick-union
- 希望平衡权重
- 权重可以是树的大小，也可以是树的深度。
- 以下考虑元素个数（树的大小）
- New rule（目前是不加证明的经验公式）: Always link root of smaller tree to larger tree.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
|
public class WeightedQuickUnionDS implements DisjointSets {
private int[] parent;
private int[] size; // size of each tree
public WeightedQuickUnionDS(int N) {
parent = new int[N];
size = new int[N]; // 增加了size array记录
for (int i = 0; i < N; i++) {
parent[i] = i;
size[i] = 1; // each tree is of size 1
}
}
// find and isConnected are the same as before!
private int find(int p) {
while (p != parent[p])
p = parent[p]; // p[i] and i 很重要！
return p;
}
public boolean isConnected(int p, int q) {
return find(p) == find(q);
}
public void connect(int p, int q) {
int i = find(p);
int j = find(q);
if (size[i] < size[j]) {
parent[i] = j;
size[j] += size[i]; // add size of i to j
} else {
parent[j] = i;
size[i] += size[j]; // add size of j to i
}
}
}
|

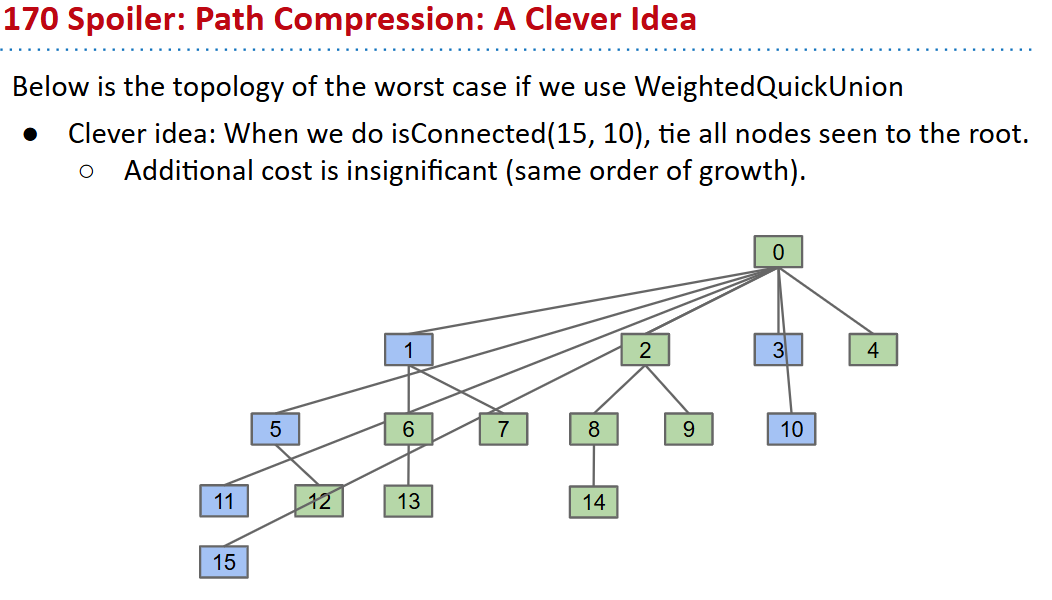

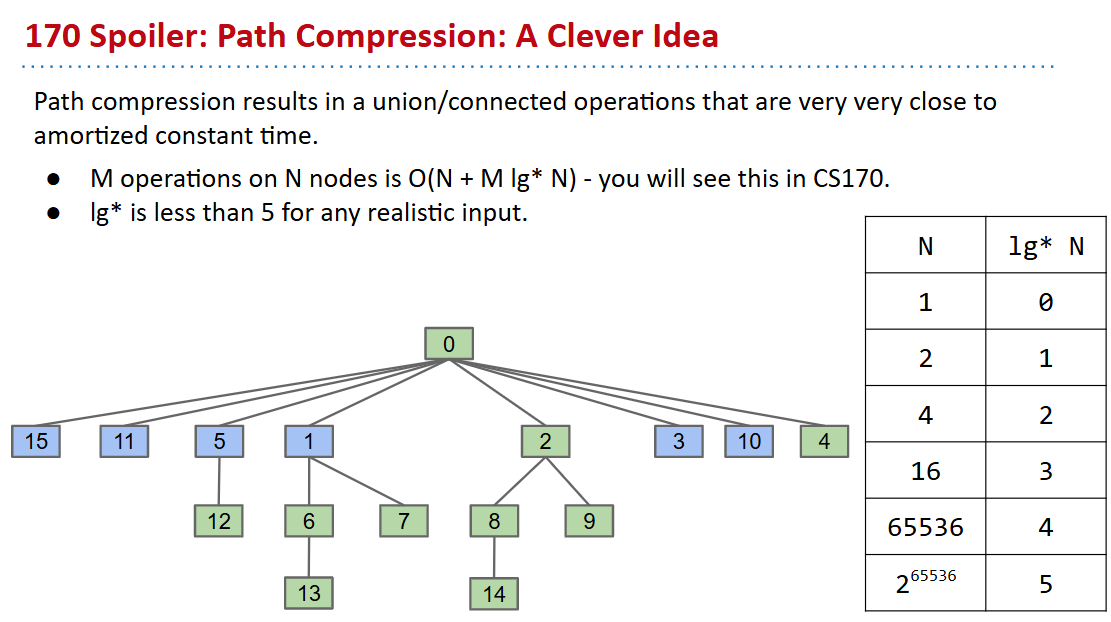

path compression（UCB-CS170😋）
- 路径压缩：将树的根节点指向树的根节点，减少树的高度。
- 路径压缩的好处：
- 减少树的高度，使得find和isConnected的效率更高。
- 减少内存消耗。
log*(n) is the iterated log - it’s the number of times you need to apply log to n to go below 1. Note that 2^65536 is higher than the number of atoms in the universe.

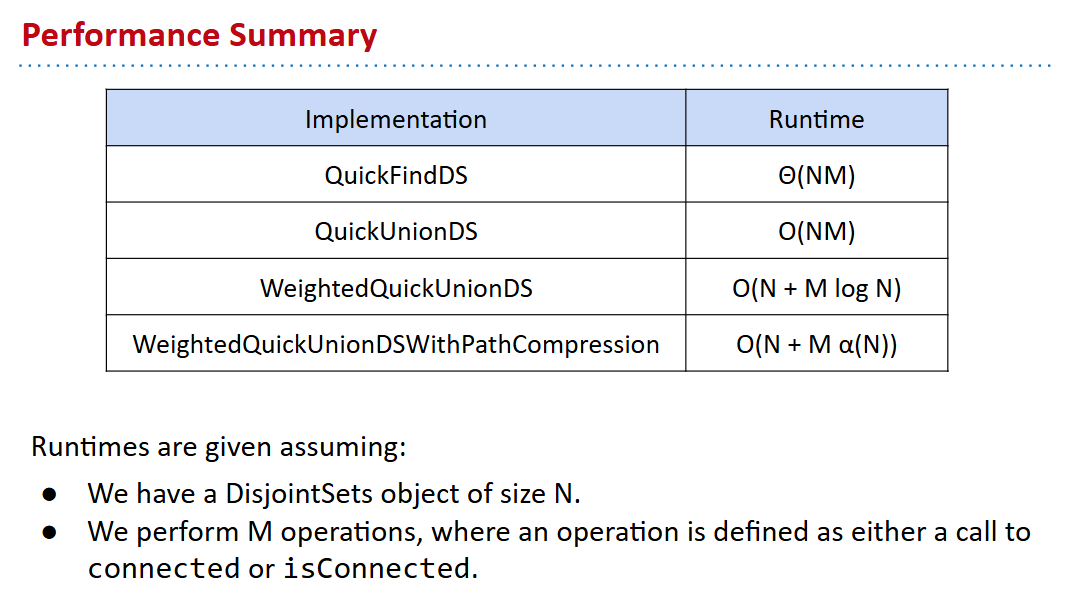

不加证明给出目前最极限的情况 $\alpha(N)$
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
|
public class WeightedQuickUnionDSWithPathCompression implements DisjointSets {
private int[] parent; private int[] size;
public WeightedQuickUnionDSWithPathCompression(int N) {
parent = new int[N]; size = new int[N];
for (int i = 0; i < N; i++) {
parent[i] = i;
size[i] = 1;
}
}
// find 并不会太难 乐
private int find(int p) {
if (p == parent[p]) {
return p;
} else {
parent[p] = find(parent[p]);
return parent[p];
}
}
public boolean isConnected(int p, int q) {
return find(p) == find(q);
}
public void connect(int p, int q) {
int i = find(p);
int j = find(q);
if (i == j) return;
if (size[i] < size[j]) {
parent[i] = j; size[j] += size[i];
} else {
parent[j] = i; size[i] += size[j];
}
}
}
|
references
Nazca Lines: http://redicecreations.com/ul_img/24592nazca_bird.jpg
Implementation code adapted from Algorithms, 4th edition and Professor Jonathan Shewchuk’s lecture notes on disjoint sets, where he presents a faster one-array solution. I would recommend taking a look.
(http://www.cs.berkeley.edu/~jrs/61b/lec/33)
The proof of the inverse ackermann runtime for disjoint sets is given here:
http://www.uni-trier.de/fileadmin/fb4/prof/INF/DEA/Uebungen_LVA-Ankuendigungen/ws07/KAuD/effi.pdf
as originally proved by Tarjan here at UC Berkeley in 1975.
log*(n) is the iterated log - it’s the number of times you need to apply log to n to go below 1. Note that 2^65536 is higher than the number of atoms in the universe.
